Aute MaxiSys MS906BT 2021 Newest Automotive Scan Tool, Upgraded Ver. of MS906/DS808/MP808, with Advanced ECU Coding, Bi-Directional Control, 31+ Services & OE-Level All Systems Diagnosis

Autel MaxiSys MS906BT

MS906BT is a professional diagnostic scan tool that can scan available vehicle modules and can perform 31 service options like Oil Reset, EPB, SAS, DPF, BMS, ABS bleed, Throttle, Suspension, Injector Coding, Key Fob Coding, Power Balance, Transmission Adaptation, and etc.

Note:If you want to achieve professional TPMS, IMMO services, please choose the corresponding series of products, such as TS608, MS906TS, IM608, etc.Autel Toolsthat do not belong to this series are subject to many restrictions when working. For example, DS808K can only perform IMMO operations such as add key and all key lost on some Asian models with low-end anti-theft systems, etc.

WhyChoose Autel MaxiSys MS906BT?

• No IP Restriction- You can use MS906BT all over the world
• Worldwide Vehicle Coverage - MS906BT has better newer vehicle coverage. It can work on over 80+ American, European and Asian vehicles, mostly up to 2018, 2019 and for some up to 2021
• Cost-Effective Diagnostic Tool- At about half the price of MaxiSys Elite, you can get the same diagnostic and service functions, it has already saved you hundreds in trips to the mechanic for diagnostics and resets
• UpgradedVersion for MS906- MS906BT is not only much more powerful than wired MS906 in vehicle diagnostics and services, but also has twice of MS906’s battery life and supports oscilloscope and digital inspection camera add-ons while MS906 does not
• Advanced Functions -MS906BT supports ECU coding(not programming) to help workshops unfold the hidden features or disable the annoying functions etc. to suit car owners customized needs; Bi-directional Control, allows users to send commands to the tested ECUs and monitor the activity of the actuators, such as windows up/ down, switch on/off, etc.
• 31+ Service Functions - It has 31 service function options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc
• Professional Costumer Services - Respond and solve your problems within8 hours👉Contact Us👈

Autel MaxiSys MS906BT Features:

1. Unique ergonomic design with rubberized outer protection and a rugged internal housing
2. Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation
3. USB, audio and auxiliary ports make it easy to connect accessories
4. Open source Android Operating System for fast boot-up and multitasking
5. Easy and intuitive navigation makes finding what you need simple and fast
6. The most extensive complete system coverage for more than 80 US, Asian and European makes and models
7. Exceptional OE-Level functionality from comprehensive OBD II diagnostics & services to advanced ECU coding
8. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
9. Smart Auto VIN technology for identifying vehicle easily
10. Automatic system and software updates with real-time push message notifications via internet
11. Instant remote control tech support anytime, anywhere
12. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
13. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
14. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
15. Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work
16. Convenient data management system for managing internal program applications and reviewing data

Comparison of MS906BT,Eliteand MS906:

Summary:

MS906 has the same apperance with MS906BT, but MS906BT has several advantages than MS906:

• MS906BT is installed Bluetooth, allowing diagnosis wirelessly
• MS906BT' s diagnostic coverage includes premium vehicle brands such as Maserati and Bentley, which would be required for high-end service shops
• MS906BT supports oscilloscope and digital inspection camera add-ons which are not supported by MS906
• Finally, MS906BT has the capability to perform coding for covered vehicles
• MS906BT has complete OEM-Specific scanner Coverage

Autel MaxiSys MS906BT Full Systems Diagnosis & Services

Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That's why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiSys MS906BT. Now you can easily do functions like:

1. Oil Reset:Reset the oil change calculator in the engine and automatic transmission
2. EPB:Replacement of brake pads on vehicles with an electric parking brake
3. SAS:Adaptation of the sensor to the angular position of the steering wheel
4. DPF:Regeneration of diesel particulate filter
5. Brake Bleed:ABS Brake Bleeding
6. IMMO:Immobilizer keys functions(All keys lost, add new keys)
7. ​​BMS:Battery registration and reset
8. Seats, Odometer, Injector, CHG tire size, TEC Learn, Suspension, Throttle, WIN OR ROOF, Lang Change, Headlamp.

Autel MaxiSys MS906BT Supports language:

Default: English

Supporting: English

If you need MS906BT to solve your problem, but you need non-English Diagnostic tool, MK906BT is a better choice

Note:Device Default Language is English, If you want to change to other language, need to provide the device serial number to us, then we can help to change language online. We will process the email within 8 hours, and then contact the engineer to change the language of your device online.

Autel MS906BT Before Purchasing

Autel MS906BTBi-directional Control & Active Test

MS906BT automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.

Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or consult us directly

Autel Maxisys MS906BT ECU Coding

Autel MS906BT professional auto scanner comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.

Autel MS906BT Two types of ECU Coding

1. The first is MS906BT computer coding during replacement, commissioning, used to install a new computer in the car. When performing the procedure, the computer is informed of vehicle's VIN, the configuration and other information necessary for correct operation.
2. The second is the coding of the computer for tuning the body electronics to the user, usually the BCM. The procedure will allow you to offer the customer individual customization of the car for him, locking the doors, setting alarms, the function "lead to home", setting the salon and outdoor lighting, etc

Autel Maxisys MS906BT Adaptation & Initialization

After replacement, for repair or cleaning of some sensors and many actuators of electronic systems, an adaptation or initialization procedure is required. When performing this procedure, the basic values of their work, the reference point, are established. In a modern car, there are many such elements that require similar procedures, which makes these functions vital for the service. In MaxiSys systems, these procedures are presented at the dealer level.

Autel MS906BT Add-on Functions：

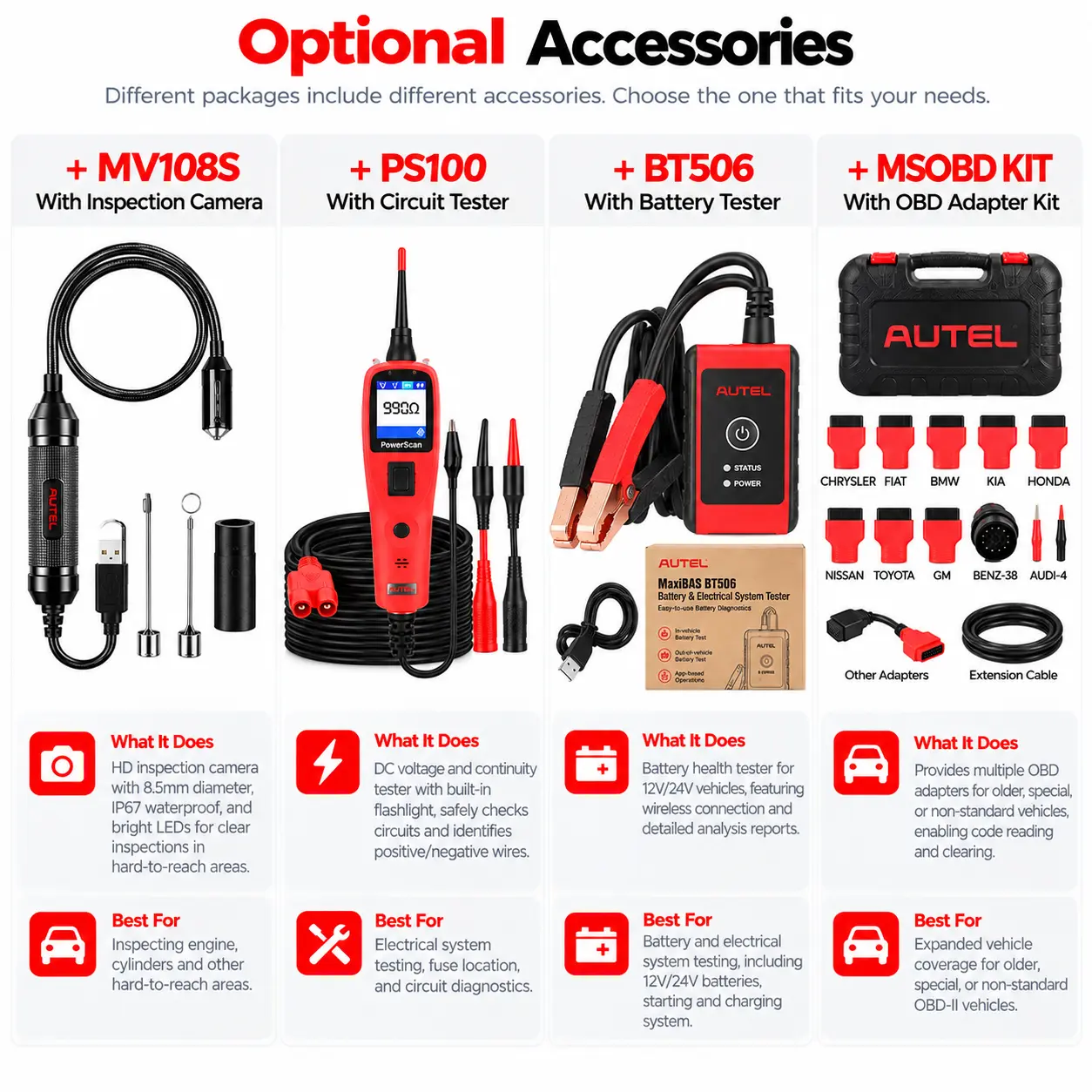

Maxisys MS906BT is a diagnostic scanner with various interfaces that can access to more Add-on like Inspection Camera, HDMI Projector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card etc.

1. MS906BT connects to a MV108 / MV105 inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
2. MS906BT works withAutel MP408 oscilloscopeproviding you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.

Autel MS906BT Vehicle Coverage:

• For Asian:Acura, Daihatsu, Hyundai, Infinit, Kiat, Mazda, Nissan, Scion, Subaru, Toyota, Manhindra, Proton, Daewoo, Honda, HyundaiCV, Isuzu, Lexus, Mitsubishi, Samsung, Ssang Yong, Suzuki, Fuso, Perodua, Tata
• For European:VW, Abarth, AstonMartin, MINI, Sprinster, SKODA, Citroen, Fiat, Lancia, Maserati, Opel, Porsche, SAAB, Vauxhall, Seat, Bugatti, Audi, ForEU, BMW, Alfa, Benz, Maybach, Ferrari, Jaguar, Land Rover, Peugeot, Renault, Smart, Volvo, Lamborghini, Bentley, Rolls-Royce, VW CV, Dacia, LT3
• For USA:Chrysler, Dodge, Ford, GM, JEEP

Autel MaxiSys MS906BT Specification:

Operating System:	Android™ 4.4.2, KitKat
Processor:	Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory:	2 GB RAM & 32 GB ROM
Display:	8.0" LED capacitive touch screen with 1024x768 resolution
Connectivity:	• Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB)
Camera (rear):	Rear-facing, 8.0 Megapixel AF with Flashlight
Sensors;	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output:	• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery:	10,000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply
Input Voltage:	12 V (9-35 V)
Power Consumption:	5 W
Operating Temp.:	-10 to 55°C (14 to 131°F)
Storage Temp.:	-20 to 70°C (-4 to 158°F)
Dimensions (W x H x D):	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight	NW: 1.05 kg (2.3lb.)

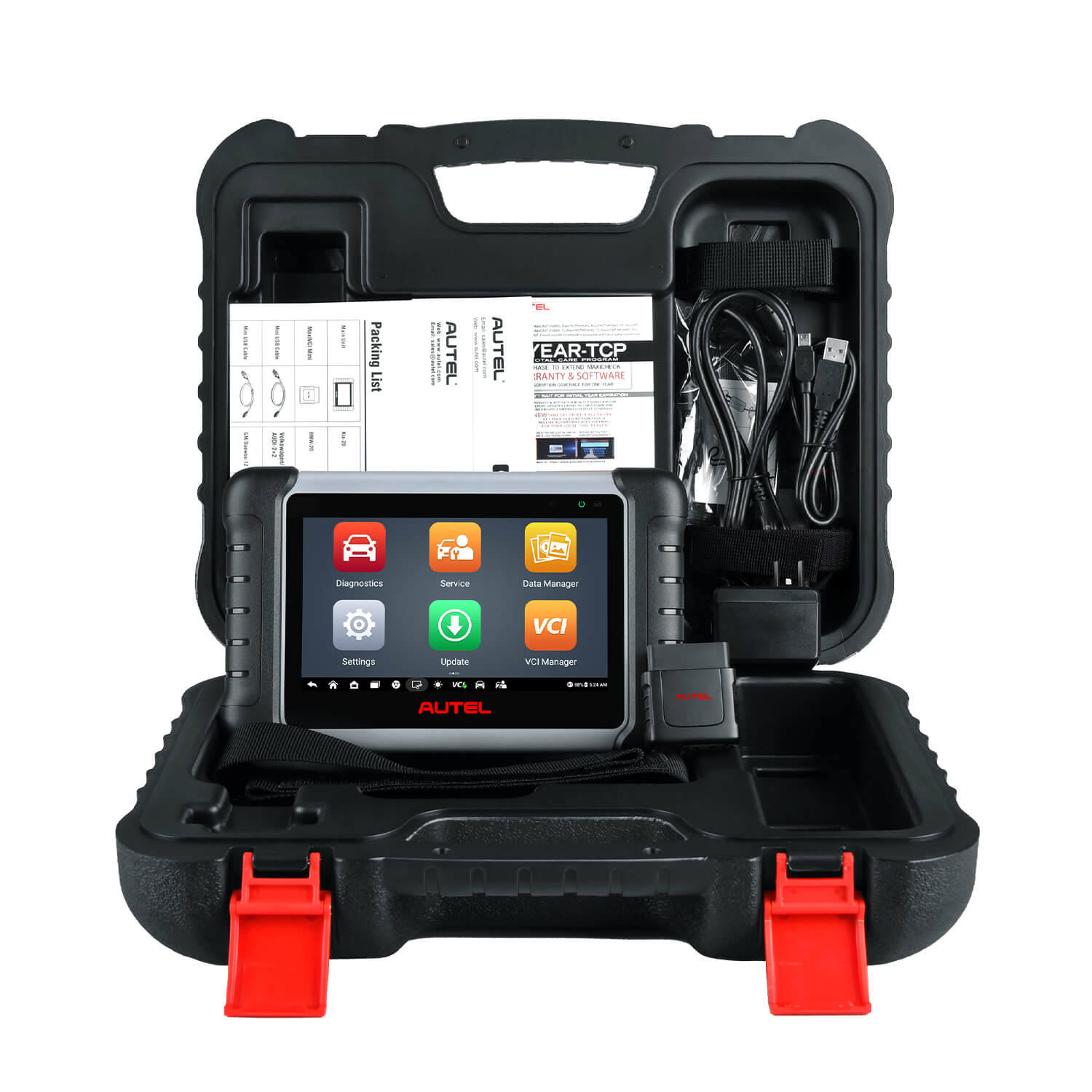

Autel MaxiSys MS906BT Package List:

• 1x Maxisys MS906BT main unit
• 1x AC/DC Adapter (12V)
• 1x Adapter for Chrysler-16 (America Only)
• 1x Adapter for GM/Daewoo-12
• 1x Adapter for Benz-38
• 1x Adapter for Mitsubishi/Hyundai-12+16
• 1x Adapter for Honda-3
• 1x Adapter for BMW-20
• 1x Adapter for Kia-20
• 1x Adapter for Nissan-14
• 1x Adapter for VW/AUDI-2+2
• 1x Cigarette Lighter
• 1x MaxiVCI V100
• 1x Lighter Fuse
• 1x Soft Cloth
• 1x Mini USB Cable
• 1x User Manual
• 1x Packing List
• 1x Carrying Case
• 1x Quick Reference Guide

Autel MaxiSys MS906BT FAQs

Q: What years vehicles does this all work on?

A: Work on ALL 1996 and newer vehicles (OBD II & CAN)

Q: Will MS906BT program BMW key and key fob?

A: No, it can't. MS906BT is not supported due to the high level of security of your vehicle. Autel IM608 can do that, you can buy it.

Q: Did this campatible with 1992 oldsmobile bravada 6cyclned awd?

A: Sorry, it can't work on such old vehicles.

Q: What is the difference between the MK908 and MS906BT?

A: The difference between MK908 and MS906BT is their hardware, MK908 is run faster than MS906BT, but MS906BT is with a VCI so you can use it to check your car anywhere Within range. And you also can view this link, the vehicle coverage of MK908 and MS906BT

Q: Does it come with a free software update to current model years of all makes?

A: Hi, it comes with a 1-year free update.

Q: Does it come with wireless obd2 adapters?

A: Yes it has a Bluetooth OBDII dongle, and asst OBDI adapters the Bluetooth dongle plugs in to.
