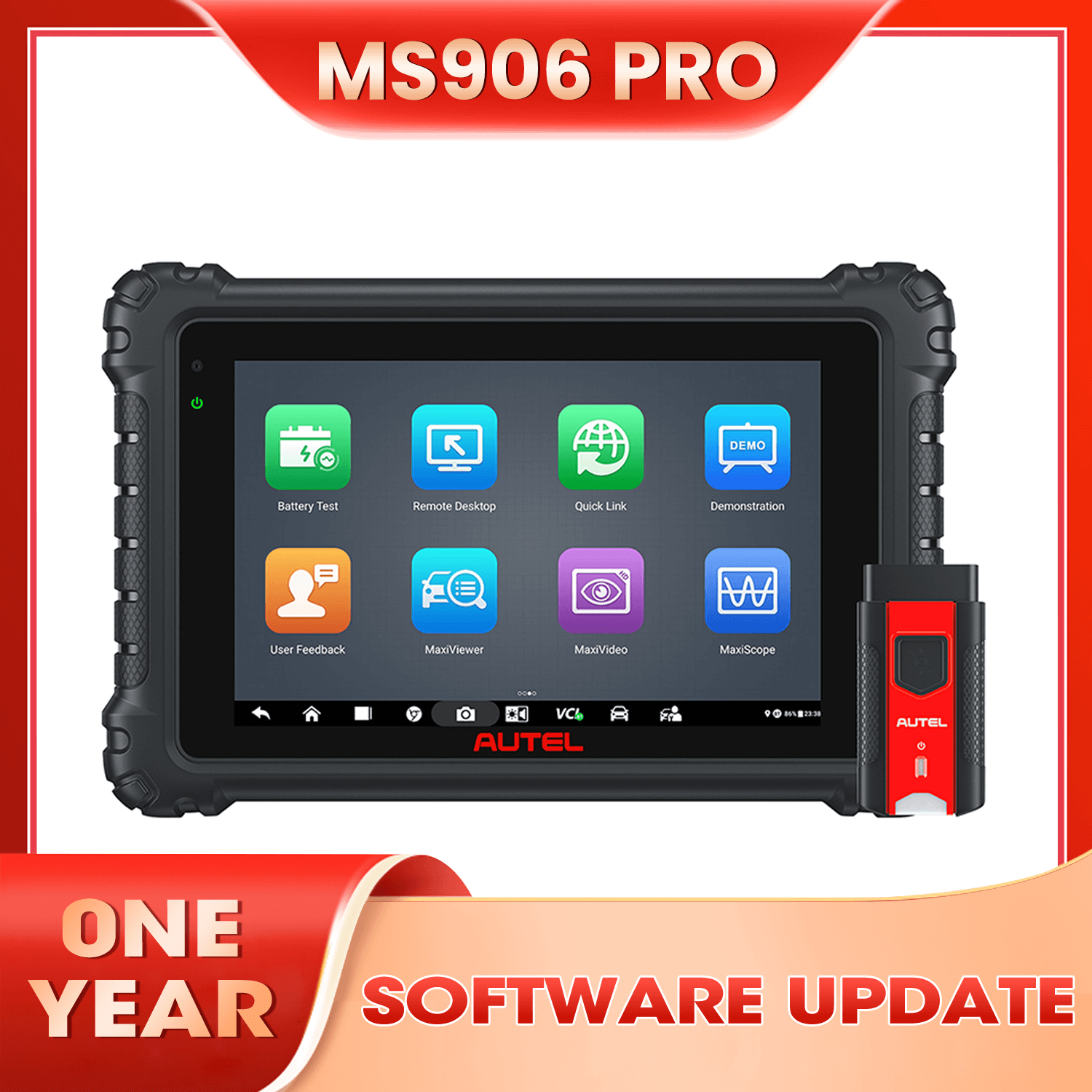

Autel MaxiSys MS906 Pro
The Autel MS906 Pro is a powerful diagnostic tool designed for professional automotive technicians and mechanics. It is an upgraded version of the popular Autel MS906 scanner, with additional features and improved capabilities.
One of the key features of the Autel MS906 Pro is its comprehensive coverage of diagnostic functions for a wide range of vehicle makes and models. It can perform full system scans, read and clear diagnostic trouble codes (DTCs), view live data streams, and perform active tests on various systems and components. The Autel MS906 Pro also features advanced coding and programming capabilities, allowing technicians to perform ECU coding
-
-
No IP Restriction, You can use MS906 Pro all over the world.
-
-
Autel Scan Tool MS906 Pro works well on 80+ car makes and models worldwide (1996 and newer)
-
-
MaxiSys MS906 Pro Scanner has up to 30 Reset service functions options
-
-
MS906 Pro is an upgraded model of MS906BT, which has improved hardware.
-
-
Autel MS906 Pro supports Online BMW ECU Coding
-
-
Maxisys MS906 Pro supports active test diagnostic function
-
-
Autel brand new authentic tool comes with 1-Year warranty
-
-
Autel MS906 Pro can be used with BT506 for battery test
-
-
No IP Restriction, You can use MS906 Pro all over the world.
-
-
Autel Scan Tool MS906 Pro works well on 80+ car makes and models worldwide (1996 and newer)
-
-
MaxiSys MS906 Pro Scanner has up to 30 Reset service functions options
-
-
MS906 Pro is an upgraded model of MS906BT, which has improved hardware.
-
-
Autel MS906 Pro supports Online BMW ECU Coding
-
-
Maxisys MS906 Pro supports active test diagnostic function
-
-
Autel brand new authentic tool comes with 1-Year warranty
-
-
Autel MS906 Pro can be used with BT506 for battery test
Comparison of similar models
| Model |
MS906BT |
MS906 Pro |
| HardWare |
| CPU |
Exynox 5260 |
Exynox 8895 |
| RAM |
2GB |
4GB |
| Android Version |
Android 4.4.4 |
Android 7.0 |
| Wi-Fi |
2.4GHz |
2.4GHz & 5GHz |
| Software |
| DoIP & CAN FD Protocol |
/ |
Support |
| Remote Desk |
/ |
Support |
Diagnostic
The Diagnostics tool MS906 Pro's application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)
Vehicle Identification
The MaxiSys diagnostic system (MS906 Pro)supports four methods for Vehicle Identification: Auto VIN Scan, Manual VIN Input, Automatic Selection, Manual Selection
- Auto Scan
- ECU Information
- Trouble Codes
- Additional Functions
The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle to locate systems’ faults and retrieve DTCs. An example of the Auto Scan interface is pictured below:
MS906 Pro retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.
When this function is selected, the screen displays the data list for the selected module. The items available for any control module vary from one vehicle to another. The parameters display in the order that they are transmitted by the ECM, so expect variation between vehicles
- Auto Scan
- ECU Information
- Trouble Codes
- Additional Functions
The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle to locate systems’ faults and retrieve DTCs. An example of the Auto Scan interface is pictured below:
MS906 Pro retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.
-
Read Codes
Autel MaxiSys MS906 Pro retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing
-
Erase Codes
After reading the retrieved codes and making appropriate vehicle repairs, use thisfunction to erase vehicle codes.
When this function is selected, the screen displays the data list for the selected module. The items available for any control module vary from one vehicle to another. The parameters display in the order that they are transmitted by the ECM, so expect variation between vehicles
Service
The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.
The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us and inform us of
-
- Vehicle information (brand, model, model or VIN )
- Requirements (code reading, clearing code? Which one or several items of the reset service? Or more advanced functions).
- Contact Us
-
- Vehicle information (brand, model, model or VIN )
- Requirements (code reading, clearing code? Which one or several items of the reset service? Or more advanced functions).
-
Bi-Directional Control
Autel Scanner, MaxiSys MS906 Pro comes with advanced bi-directional control (active test) function that allows mechanics determine the integrity of the system or parts by sending commands to a car with the tool and reading the data coming back from it. Such as ABS, window, door, solenoids, relay, switch, valves, sunroof, headlamps and etc.
ECU Coding
Autel MaxiSys MS906 Pro professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.
Guided Function
The Guided Functions are advantaged with their easy operations. A guided functions is composed of multiple basic functions, freeing users from trouble such as looking up channel number and login code. Every guided function has detailed operation guidance and operating condition statement.
Autel MaxiSys MS906 Pro Helpful Service
-
Auto VINThe diagnostic system features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system
-
Remote Desk – MS906 Pro works with TeamViewer Quick Support to enable you to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your tablet diagnostic tool on their PC.
-
Shop Manager – MaxiSys MS906 Pro owns an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.
-
Data Manager –MS906 Pro Supports to store, print, and review the saved files.
-
Academy -Autel MaxiSys MS906 Pro provides tutorials and technical bulletins written by top-notch technicians and product experts
Autel MaxiSys MS906 Pro Additional Functions

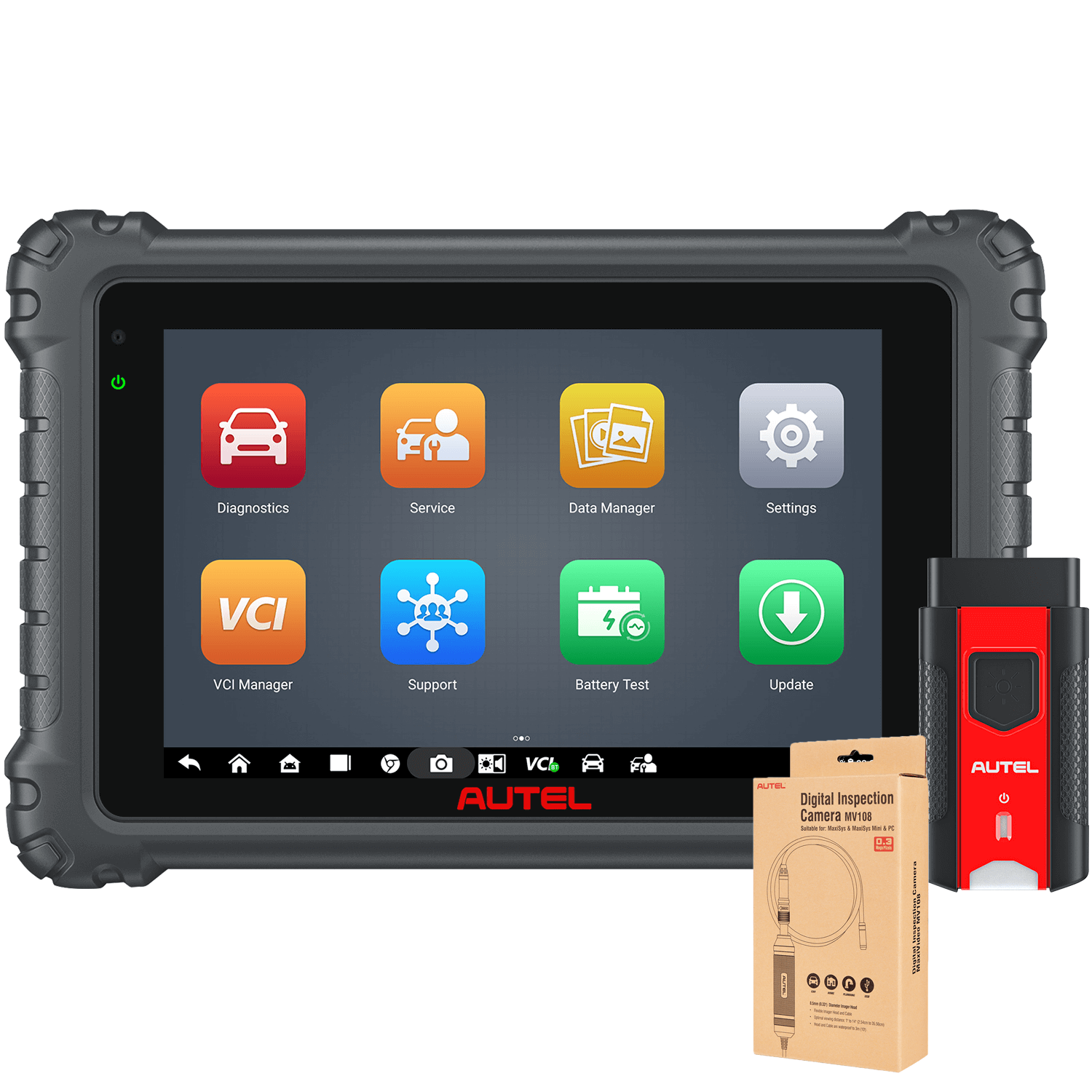

Autel MaxiVideo MV108 Digital Inspection Camera
Autel Battery Tester BT506
- Bi-Directional Control
- Online ECU Coding
- Helpful Service
- Additional Functions
Autel Scanner, MaxiSys MS906 Pro comes with advanced bi-directional control (active test) function that allows mechanics determine the integrity of the system or parts by sending commands to a car with the tool and reading the data coming back from it. Such as ABS, window, door, solenoids, relay, switch, valves, sunroof, headlamps and etc.
Autel MaxiSys MS906 Pro professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.
-
Auto VINThe diagnostic system features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system
-
Remote Desk – MS906 Pro works with TeamViewer Quick Support to enable you to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your tablet diagnostic tool on their PC.
-
Shop Manager – MaxiSys MS906 Pro owns an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.
-
Data Manager –MS906 Pro Supports to store, print, and review the saved files.
-
Academy -Autel MaxiSys MS906 Pro provides tutorials and technical bulletins written by top-notch technicians and product experts
Autel MaxiVideo MV108 Digital Inspection Camera
Autel Battery Tester BT506
New Released Protocol
The application of new protocols DoIP/CAN FD boosts 2x faster vehicle communication between modules. Technicians would never wait for too long to get diagnostic results.
Autel Cloud Serive
Easily contact a trusted expert directly from your MaxiSYS MS906 Pro tool. Automatic vehicle information entry streamlines the order creation & approval process. Monitor vehicle vitals while programming.
Autel MaxiSys MS906 Pro Specification:
| Recommended Use: |
Indoor |
| Operating System: |
Android 11.0 |
| Processor: |
Qualcomm 660 |
| Memory: |
4G RAM & 128G ROM |
| Display: |
8-inch LCD capacitive touchscreen with 1920x1200 resolution |
| Connectivity: |
Wi-Fi（802.11a/b/g/n/ac） USB 2.0，Mini USB 2.0 Wireless BT V2.1+EDR HDMI Type A SD Card (Support up to 64GB) |
| Sensors; |
Ambient light sensor for brightness auto changing |
| Audio Input/Output: |
Input: N/A，Output: buzzer |
| Power and Battery: |
3.7 V/11600 mAh lithium-polymer battery
Charges via 5 VDC power supply |
| Tested Battery Life: |
Around 4.5 hours of continuous use |
| Battery Charging Input: |
5 V/1.5 A |
| Power Consumption: |
500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V |
| Operating Temp.: |
0 to 55°C(32 to 131°F) |
| Storage Temp.: |
-20 to 60°C (-4 to 140°F) |
| Operating Humidity: |
5% - 95% non-condensing |
| Dimensions (W x H x D): |
237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4") |
| Net Weight |
788 g (1.74 lb.) |
| Protocols |
ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,SAE-J1850 VPW,SAE-J1850PWM, SAE J2610,GM UART UART Echo Byte Protocol，ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)，Honda Diag-H Protocol,TP2.0,TP1.6 |
Benefits of Updating Your Tool to Latest
-
Tool Software/Function Upgrades: Get the latest features and functions as they roll out from Autel
-
Latest Vehicle Coverage: Service all the latest makes and models supported by Autel
How do we process your update service?
- After checkout, please send us your S/N and we will authorize your scanner within 24 hours.
- After authorizing, we will send you an notification and you will be able to renew your device online.
Please note: This update is very easy to operate, no shipping needed
