Autel MaxiCOM MK906 Pro-TS UK/EU | Upgraded Ver. of MS906 Pro/MS906TS | Complete TPMS Services | OE-Level All Systems Diagnosis | Bi-Directional Control | 31+ Reset Services | Advanced ECU Coding

Autel MaxiCOM MK906 Pro-TS

The MK906 Pro TS runs on the latest Android operating system, giving users access to a wide range of apps and features. It comes with advanced diagnostics software, which can perform a variety of diagnostic functions, including reading and clearing codes, viewing live data, and performing active tests. The Autel MK906 Pro TS also features advanced TPMS (Tire Pressure Monitoring System) functions, making it a comprehensive diagnostic tool for automotive technicians and mechanics.

Diagnostic

The Diagnostics tool MK906 Pro-TS's application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)

Vehicle Identification

The MaxiCOM diagnostic system (MK906 Pro TS)supports four methods for Vehicle Identification: Auto VIN Scan, Manual VIN Input, Automatic Selection, Manual Selection

• Auto Scan
• ECU Information
• Trouble Codes
• Additional Functions

The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle to locate systems’ faults and retrieve DTCs. An example of the Auto Scan interface is pictured below:

MK906 Pro retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.

• Read Codes

• Erase Codes

When this function is selected, the screen displays the data list for the selected module. The items available for any control module vary from one vehicle to another. The parameters display in the order that they are transmitted by the ECM, so expect variation between vehicles

• Auto Scan
• ECU Information
• Trouble Codes
• Additional Functions

The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle to locate systems’ faults and retrieve DTCs. An example of the Auto Scan interface is pictured below:

MK906 Pro-TS retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.

• Read Codes

  Autel MaxiCOM MK906 Pro-TS retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing

• Erase Codes

  After reading the retrieved codes and making appropriate vehicle repairs, use thisfunction to erase vehicle codes.

When this function is selected, the screen displays the data list for the selected module. The items available for any control module vary from one vehicle to another. The parameters display in the order that they are transmitted by the ECM, so expect variation between vehicles

Service

The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.

The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us and inform us of

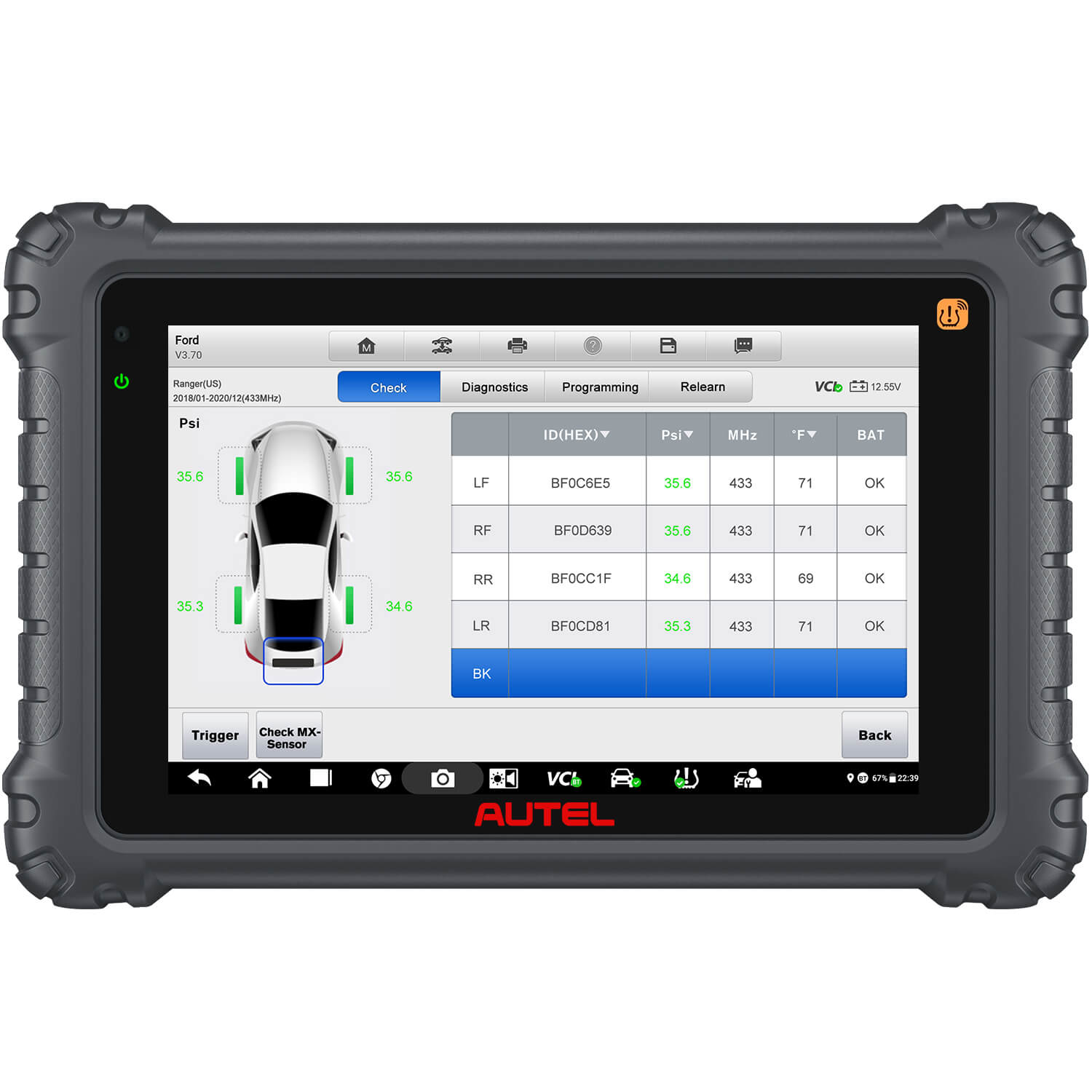

Complete TPMS Diagnosis

The Autel MK906 Pro-TS is a powerful diagnostic tool designed for professional mechanics and technicians. It provides a comprehensive TPMS diagnosis feature, offering advanced capabilities for diagnosing and repairing TPMS-related issues in vehicles.

Autel MaxiCOM MK906 Pro-TS's TPMS diagnosis feature can quickly and accurately identify TPMS sensor types, read sensor data, and diagnose TPMS faults. It can perform TPMS system status checks, identify tire pressure discrepancies, and perform TPMS relearn procedures. In addition, the MP808TS can program TPMS sensors and perform system-wide TPMS resets, providing a complete TPMS solution for vehicle maintenance and repair.

Autel MK906 Pro-TS also supports various TPMS sensor programming options, including the Auto Create and Auto Learn functions. The Auto Create function can generate new sensor IDs and program sensors with a single click, while the Auto Learn function can program new sensors in just a few simple steps. The tool also supports both 315 MHz and 433 MHz TPMS sensors, making it compatible with a wide range of vehicles.

Bi-Directional Control

Autel Scanner, MaxiCOM MK906 Pro TS comes with advanced bi-directional control (active test) function that allows mechanics determine the integrity of the system or parts by sending commands to a car with the tool and reading the data coming back from it. Such as ABS, window, door, solenoids, relay, switch, valves, sunroof, headlamps and etc.

ECU Coding

Autel MaxiCOM MK906 Pro TS professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.

Guided Function

The Guided Functions are advantaged with their easy operations. A guided functions is composed of multiple basic functions, freeing users from trouble such as looking up channel number and login code. Every guided function has detailed operation guidance and operating condition statement.

Autel MaxiCOM MK906 Pro TS Helpful Service

• Auto VIN - The diagnostic system features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system
• Remote Desk – MK906 Pro TS works with TeamViewer Quick Support to enable you to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your tablet diagnostic tool on their PC.
• Shop Manager – MaxiCOM MK906 Pro TS owns an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.
• Data Manager –MK906 Pro TS Supports to store, print, and review the saved files.
• Academy -Autel MaxiCOM MK906 Pro TS provides tutorials and technical bulletins written by top-notch technicians and product experts

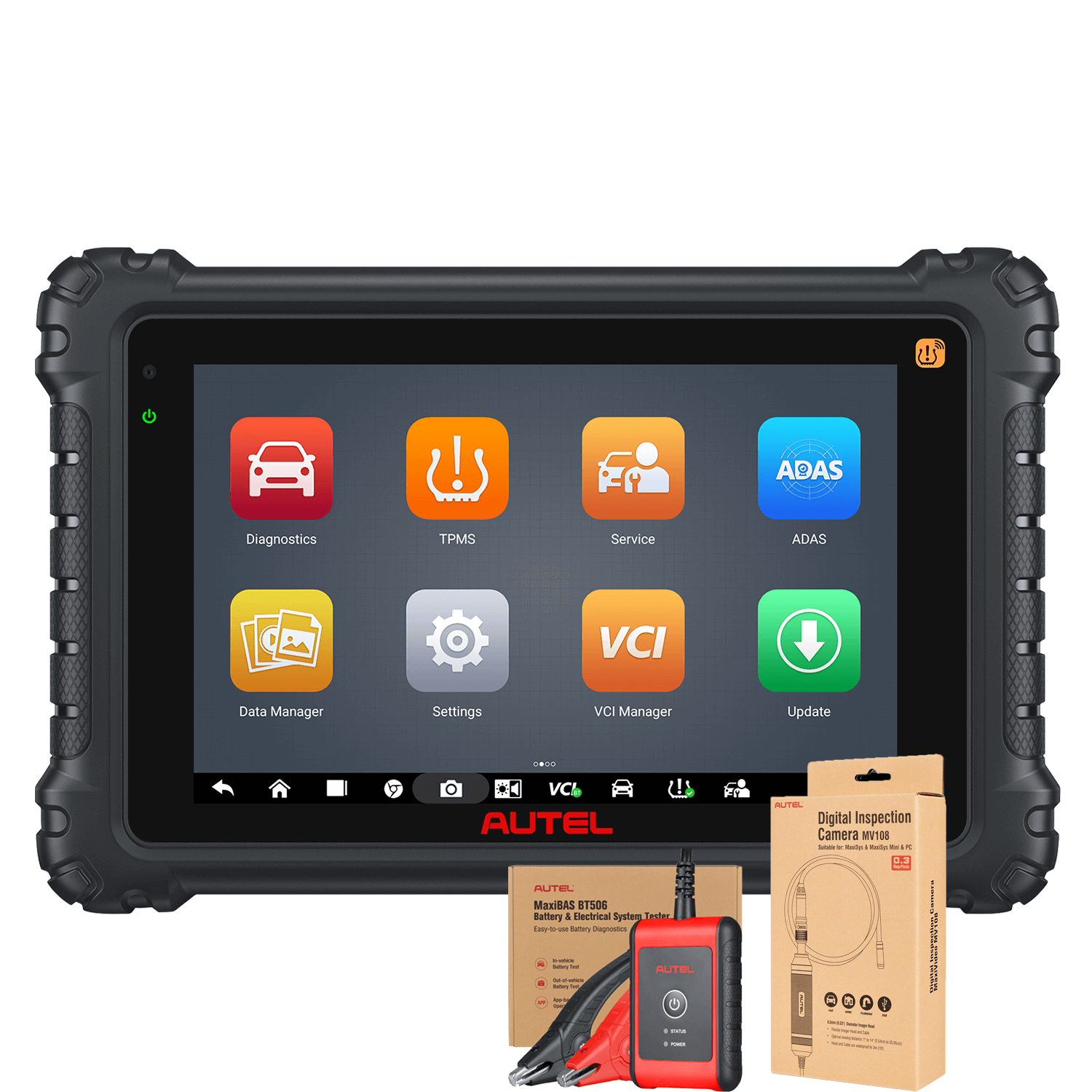

Autel MaxiCOM MK906 Pro TS Additional Functions

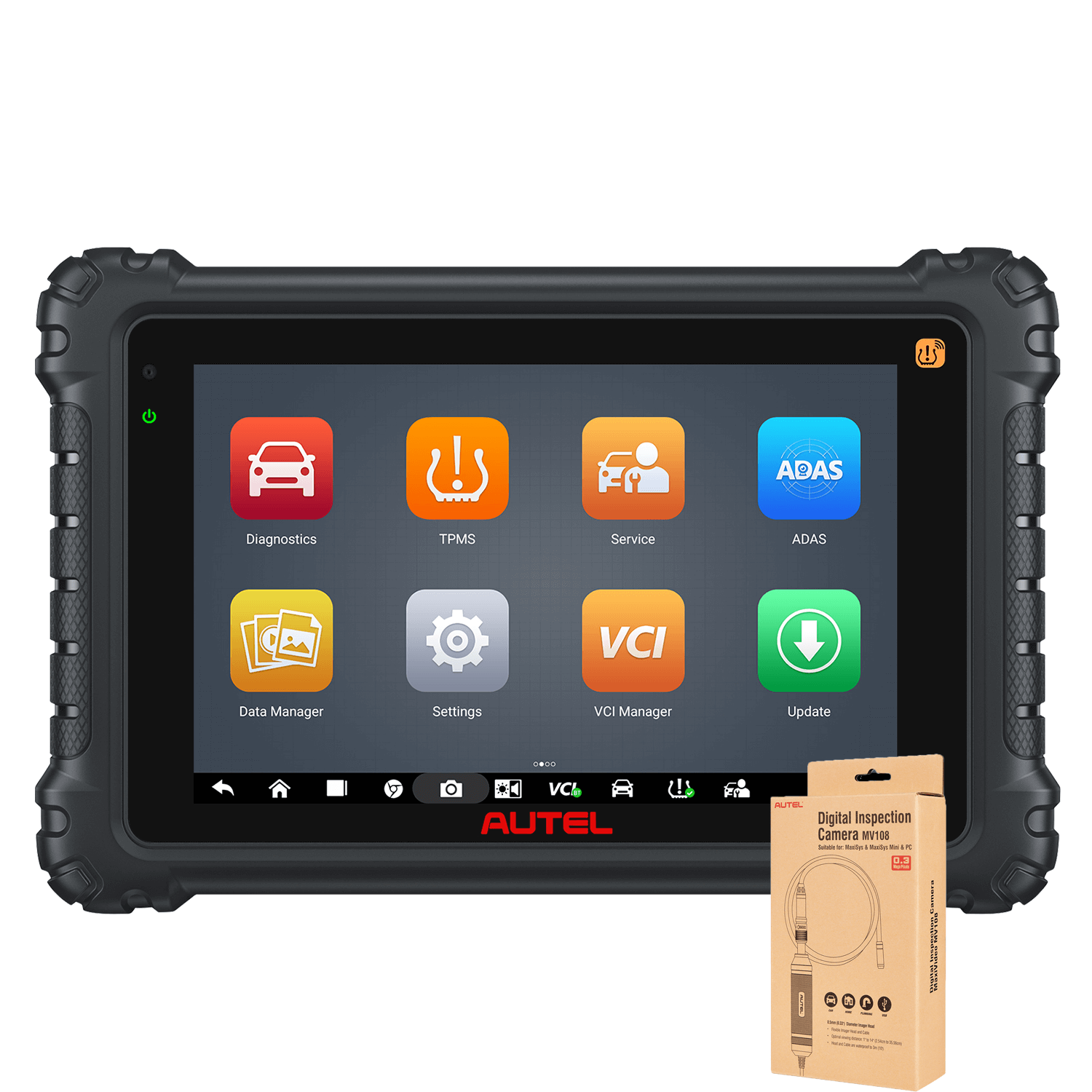

Autel MaxiVideo MV108 Digital Inspection Camera

Autel Battery Tester BT506

Autel MaxiCOM MK906 Pro TS Specifications:
