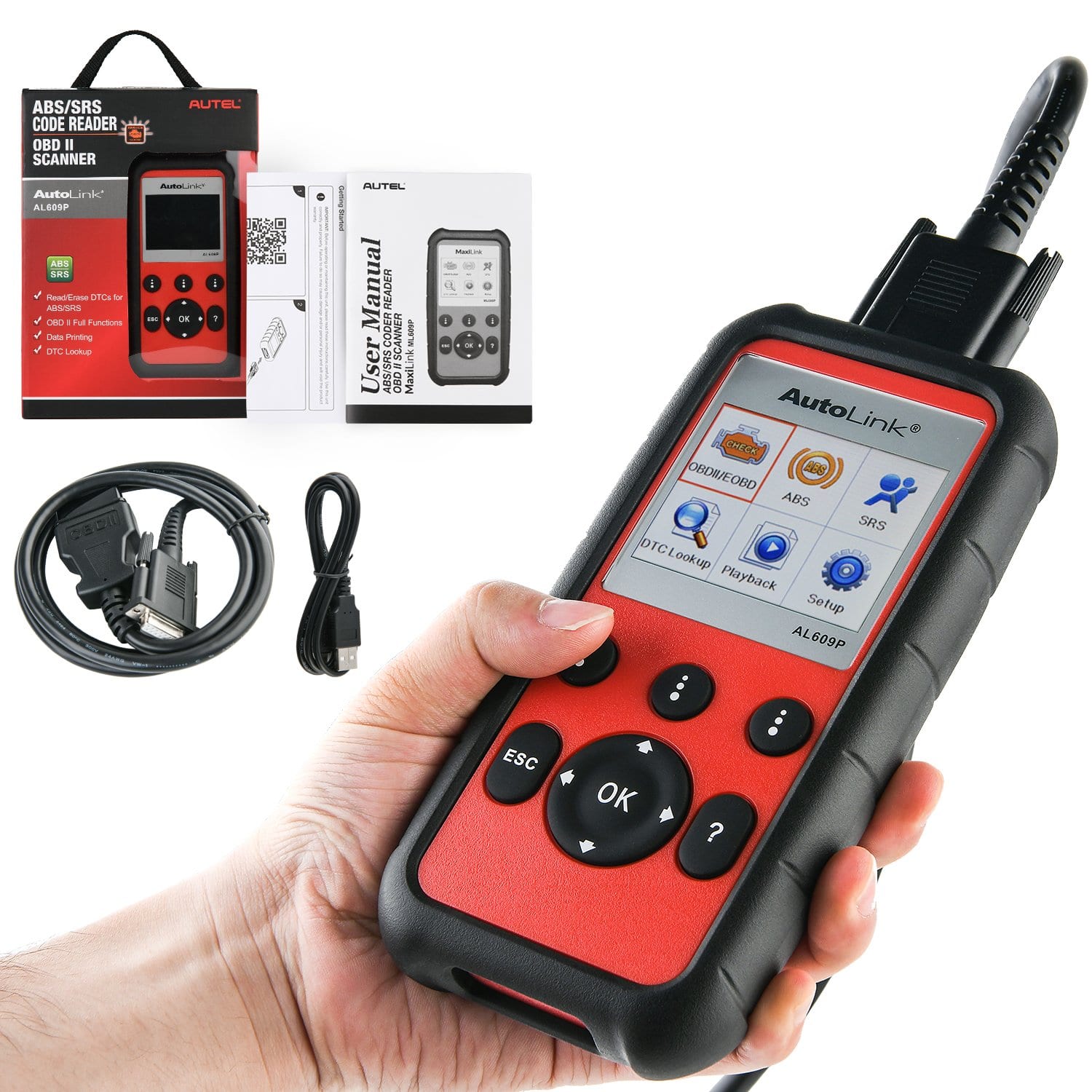

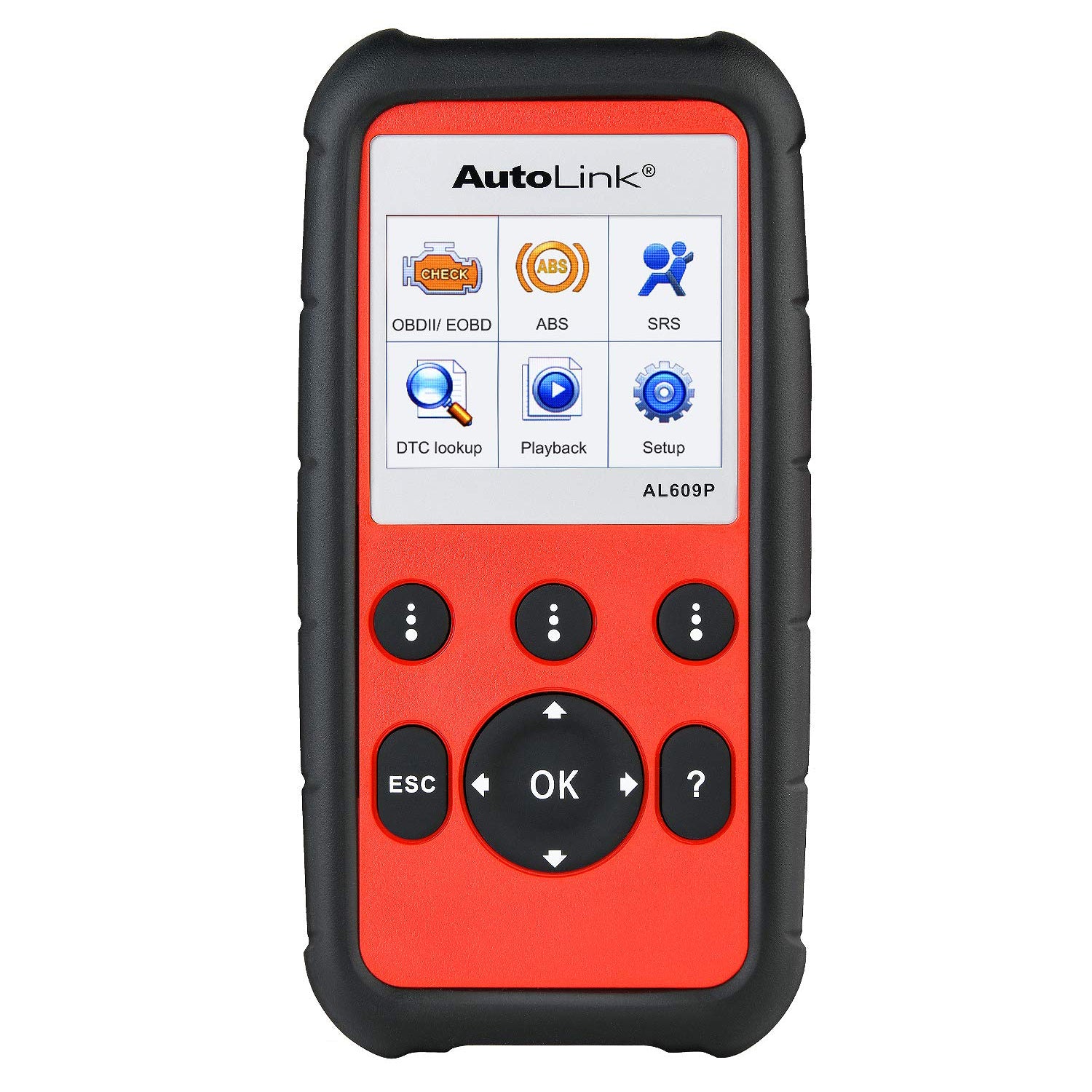

Autel Autolink AL609P
The Code Reader Scan Tool AutoLink AL609P is built to help you determine why the Malfunction Indicator Light or the ABS warning light is on. Featured with ABS/SRS diagnosis + CAN OBDII, 2.8’’ LCD, built-in DTC lookup library, AL609P offers swift code reading function.
-

-
Turn off Check Engine Light
Autel AL609P can read the error code of the engine and clear it quickly
-

-
Autel AutoLink AL609P can easily diagnostic to find out your vehicle's DTC or Information
-

-
The DTC Lookup function allows user to search definitions of DTC stored in built-in DTC library
-

-
Autel AL609P OBD2 Scanner can read/ erase ABS, SRS fault codes, turn off ABS warning light
-

-
You can read accurate live data through AL609P
-

-
Autel code reader enjoys lifetime free upgrades
-

-
Turn off Check Engine Light
Autel AL609P can read the error code of the engine and clear it quickly
-

-
Autel AutoLink AL609P can easily diagnostic to find out your vehicle's DTC or Information
-

-
The DTC Lookup function allows user to search definitions of DTC stored in built-in DTC library
-

-
AAutel AL609P OBD2 Scanner can read/ erase ABS, SRS fault codes, turn off ABS warning light
-

-
You can read accurate live data through AL609P
-

-
Autel code reader enjoys lifetime free upgrades
SCAN - 2 Systems
The AutoLink AL609P is a powerful OBDII scan tool that provide basic diagnosis and read and erase codes for four systems: ABS, SRS.
- ABS(Anti-lock Braking System)
- SRS(Supplemental Restraint System)
ABS
An anti-lock braking system (ABS) is an automobile safety system that allows the wheels on a motor vehicle to maintain tractive contact with the road surface according to driver inputs while braking, preventing the wheels from locking up (ceasing rotation) and avoiding uncontrolled skidding. It is an automated system that uses the principles of threshold braking and cadence braking which were practiced by skillful drivers with previous generation braking systems. It does this at a much faster rate andwith better control than many drivers could manage
An ABS warning lamp that is on usually means trouble and you need to pull the code to figure out what is wrong. The ML629 provides convenient service to read and erase codes for the ABS.
Read Codes
-
Select ABS from the system list. The list may vary by test vehicles.
-
Select Read codes from the diagnostic function list. All the DTCs of the ABS control module are displayed
-
Select ABS from the system list. The list may vary by test vehicles.
-
Select Read codes from the diagnostic function list. All the DTCs of the ABS control module are displayed
Erase Codes
- Select Erase codes from the diagnostic function list
- Follow the on-screen instruction and make sure the ignition on and engine off.
-
A confirmation message “DTCs and freeze data will be deleted. Are you sure you want to continue?” will pop up to ask for your confirmation.
-
Erase Codes command will be sent and you can perform Read Codes function to verify
OBDII Diagnostics
When more than one vehicle control module is detected by the scan tool, you will be prompted to select the module with retrievable data. The Power train Control Module [PCM] and Transmission Control Module [TCM] are the most commonly scanned modules.
- Turn the ignition off
- Locate the vehicle’s 16-pin Data Link Connector (DLC).
- Plug the tool into the vehicle’s DLC.
- Turn the ignition on. Engine can be off or running
- Turn on the scan tool. Use the SCROLL button to select OBDII/EOBD from the Main Screen
- Press the OK button and wait for the Menu to appear. A sequence of messages displaying the OBDII protocols will be observed on the display until the vehicle protocol is detected.
- View a summary of system status (MIL status, DTC counts, Monitor status) on screen
System Status
System Status shows the MIL Status, codes found, and monitors status.

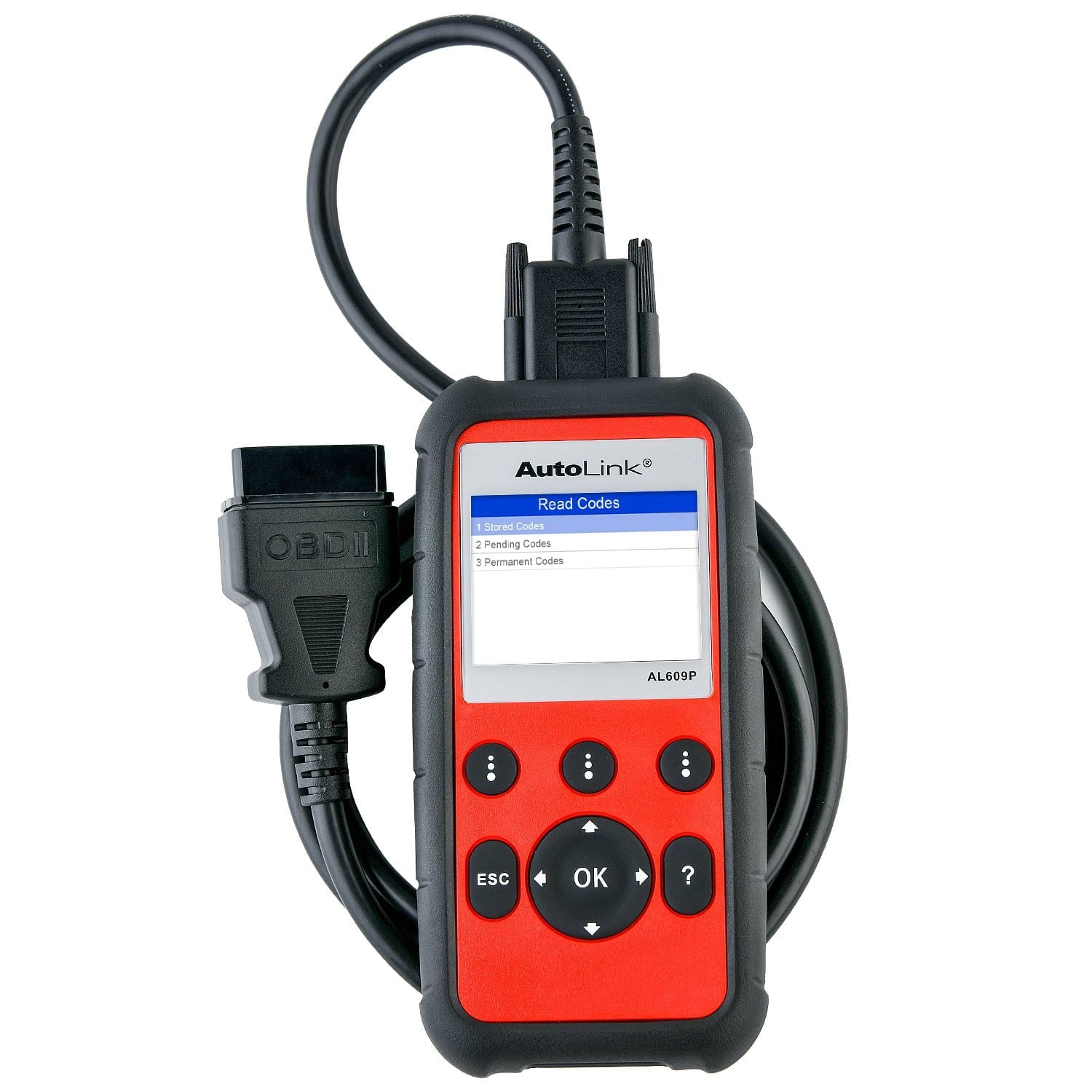

Read Codes
-
Stored Codes - Stored Codes are also known as “hard codes”, which are fault codes, or trouble codes that have been stored in the vehicle computer memory because the faults have reoccurred for more than a specified amount of key-cycles. These codes will cause the control module to illuminate the malfunction indicator light (MIL) when emission-related faults occur
-
Pending Codes - Pending Codes are also referred to as “maturing codes” or “continuous monitor codes”. They indicate problems that the control module has detected during the current or last driving cycle but are not yet considered serious. Pending Codes will not turn on the malfunction indicator lamp (MIL). If the fault does not occur within a certain number of warm-up cycles, the code clears from memory
-
Permanent Codes - Permanent Codes are DTCs that are "confirmed" and are retained in the non-volatile memory of the vehicle’s computer until the appropriate monitor for each DTC has determined that the malfunction is no longer present and is not causing the MIL on. Permanent DTCs are stored in non-volatile memory and may not be erased by any diagnostics service or by disconnecting power to ECU.

Erase Codes
Note:
- Erasing the Diagnostic Trouble Codes may allow the scan tool to delete not only the codes from the vehicle’s on-board computer, but also “Freeze Frame” data and manufacturer-specific enhanced data. Furthermore, the I/M Readiness Monitor Status for all vehicle monitors is reset to Not Ready or Not Complete status. Do not erase the codes before repairs or services have been performed.
- Even if deleted, codes will again display if the underlining fault causing the code is not addressed.
- This function is performed with key on engine off (KOEO). Do not start the engine.
Live Data
The View Data function allows viewing of live or real time PID data of vehicle’s computer module(s).
-
To view complete set of data
-
View live PIDs on the screen
-
To view customized PID data
-
Press the OK button to view selected PIDs on screen.
-
To view complete set of data
-
View live PIDs on the screen
-
To view customized PID data
-
Press the OK button to view selected PIDs on screen.
Freeze Frame
Freeze Frame Data allows the technician to view the vehicle’s operating parameters at the moment a DTC (Diagnostic Trouble Code) is detected. For example, the parameters may include engine speed (RPM), engine coolant temperature (ECT), or vehicle speed sensor (VSS) etc. This information will aid the technician by allowing the parameters to be duplicated for diagnostic and repair purposes.
-
- To view freeze frame data, use the UP/DOWN scroll button to selectFreeze Frame from Diagnostic Menu and press the OK button
- Wait while the scan tool validates the PID MAP.
-
Information displays
- Select Save to record freeze frame. A confirming message “Save success!”

-
- To view freeze frame data, use the UP/DOWN scroll button to selectFreeze Frame from Diagnostic Menu and press the OK button
- Wait while the scan tool validates the PID MAP.
-
Information displays
- Select Save to record freeze frame. A confirming message “Save success!”

O2 Monitor Test
OBD II regulations set by the (Society of Automotive Engineers) SAE require vehicles monitors and tests on the oxygen (O2) sensors to identify problems related to fuel efficiency and vehicle emissions. These tests are done automatically when engine operating conditions are within specified limits. These test results are saved in the vehicle’s on-board computer's memory.
The O2 Monitor Test function allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.
The O2 Monitor Test function is not supported by vehicles that communicate using a controller area network (CAN). For O2 Monitor Test results of CAN-equipped vehicles, see chapter “On-Board Mon. Test”.
On-Board Monitor Test
The scan tool allows access to the results of on-board diagnostic monitoring tests for specific components/systems. The vehicle manufacturer is responsible for assigning "Manufacturer Defined Test IDs" and Component IDs for tests of different systems and components. The advanced feature of this scan tool enables you to read the definition of an On-Board Diagnostic Monitor ID.
-
After you select the vehicle manufacturer, the scan tool displays the On-Board Monitor test results for specific monitored systems.
-
On-Board Monitor Test Menu
-
For CAN-equipped vehicles, test selections may be as depicted as below:
-
After you select the vehicle manufacturer, the scan tool displays the On-Board Monitor test results for specific monitored systems.
-
On-Board Monitor Test Menu
-
For CAN-equipped vehicles, test selections may be as depicted as below:
DTC Lookup
The DTC Lookup function allows user to search definitions of DTC stored in built-in DTC library.
-
Select DTC Lookup from Main Screen
-
After you input the data trouble code (DTC), select Finish
-
The scan tool will display DTC Vdefinition as below
-
Select DTC Lookup from Main Screen
-
After you input the data trouble code (DTC), select Finish
-
The scan tool will display DTC Vdefinition as below
Autel Autolink AL609p main features
- Reads and erases DTCs for ABS and SRS on most 1996 and newer major vehicle models
- Works on most 1996 and newer vehicles (OBDII & CAN) – domestic and import
- Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
- Turns off Check Engine Light (MIL) and ABS warning lights, clears codes and resets monitors
- Reads, stores and plays back live PCM data stream and live sensor data
- Retrieves vehicle information (VIN, CALID and CVN)
- Views freeze frame data
- Troubleshooter code tips guide technicians to the root cause of trouble codes faster
- Graphs data
- Multilingual support – English, Spanish, French, etc.
- 2.8’’ LCD with 320X240 resolution
- Internet updatable via USB
- Prints data via PC
Autel AutoLink AL609p Specification
Brand |
Autel |
Item model number |
AL609p |
Display |
2.8-inch LCD (320 x 240 dpi) |

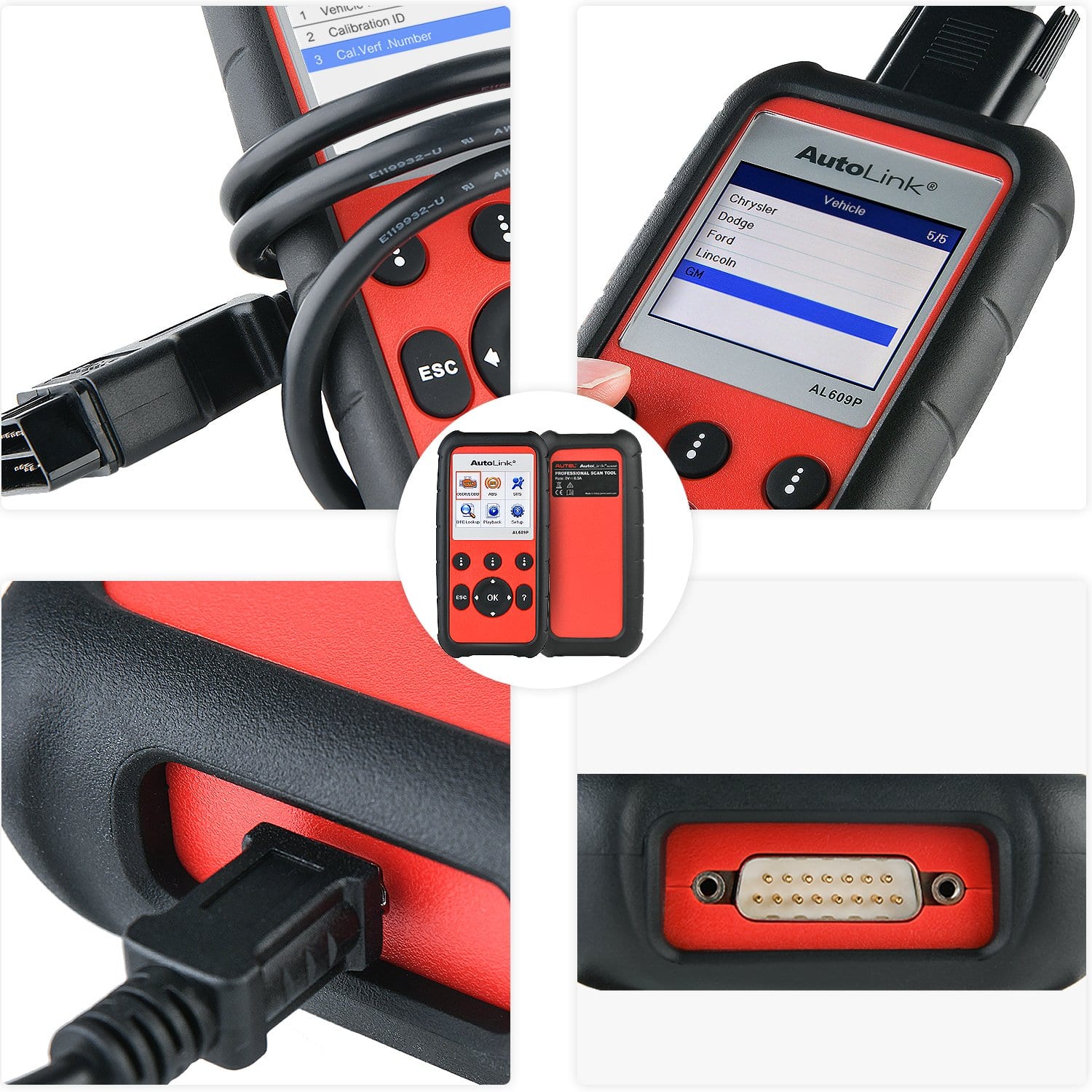

Connectivity |
USB mini 2.0 OBD II DB15 |
Operating Temp. |
-10°C to 60°C (14°F to 140°F) |
Storage Temp. |
-20°C to 70°C (-4°F to 158°F) |
External Power |
8.0 to 18.0 V power provided via vehicle battery |
Dimensions (LxWxH) |
182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”) |
Net Weight |
237.9 g (0.524 lb) |
