Autel MaxiSys Ultra | 2022 Newest Top Intelligent Diagnostic Scan Tool | J2534 ECU Programming | 36+ Service | 5-in-1 VCMI Module | Active Test | Upgraded of MS908S Pro Elite/MS909/MS919

Save 26%
£4,599.00
£3,399.00
Model
Gift
Shipping:
Free shipping & No Extra Tax
Carriers:
Royal Mail Yodel Hermes
Payment:
PayPal payment
Return:
30-Day Return or Replacement View More >>
  • Description
  • Videos
  • Comparisons
  • Downloads
  • Software Update
  • Shipping
  • Certificate
  • Autel Maxisys Ultra

    As Autel’s most ambitious diagnostic tablet to date, MaxiSys Ultra offers state-of-the-art hardware, intelligent diagnostics with unique Repair Assist, DTC analysis, TSBs, and Repair Tips to provide step-by-step repair guidance for technicians, 5-in-1 MaxiFlash VCMI supporting latest DoIP, D-PDU, and Mega CAN protocols, 27 Service options, bi-directional control, covering 95% post 2000 vehicles, 85% post 2019 vehicles. This MaxiSys Ultra scanner is the best investment for large auto workshops.

    autel maxisys ultra introduce

    Why Choose Autel Maxisys Ultra?

    • Latest Update Version - More advanced and powerful diagnostic tools are not affected by IP restrictions and can be used all over the world
    • Intelligent Diagnostics & 36+ Services - Through one-stop Intelligent Diagnostics, Autel Scanner MaxiSys Ultra provides techs with step-by-step repair guidance. With multiple repair guidance options: Technical Service Bulletin, DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases, it can make your work 200% easier than ever. Also, it has 36+ service to help you win more business.
    • Advanced 5-In-1 VCMI for Stable Connection & Measurement Tests - The new MaxiFlash VCMI functions as a VCI, 4-channel oscilloscope(preset guides and tests and waveform library), waveform generator, multimeter, and CAN BUS tester. With zoom in, playback and advanced triggers, oscilloscope is easy to use. With built-in battery, the VCMI can maintain the current and voltage required for stable, fast & secure vehicle communication
    • 99% Coverage on the Market - Autel MaxiSys Ultra ultimate automotive diagnostic tool supports the latest VCI protocols like D-PDU, DoIP/CAN FD, Mega CAN and can work on over 80+ US domestic, European and Asian vehicles. The Ultra has the best newer vehicle coverage Autel has yet to offer, covering 95% of post 2000 vehicles, and 85% of post 2019 vehicles and it’s fast growing with the frequent released software updates.
    • Solid Hardware - Ultra With a winning combination of solid hardware and software, the Autel MaxiSys Ultra ensures you a smooth and efficient diagnostic experience. Android 7.0 OS, Samsung octa-core processor, 4GB RAM & 256GB memory, 12.9 inch TFT-LCD touch screen, front & rear cameras, 18000mAh 3.8 V battery, etc.
    • State-Of-The-Art Hardware + 1 Year Free Updates - MaxiSys Ultra features a 12.9” touchscreen, Android 7.0 OS, Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 256GB built-in memory, 5MP & 16MP cameras, 18000 mAh battery, dual wifi, powering the new split-screen multi-application navigation to provide diagnostic guidance and test component to confirm repairs. The Ultra comes with 1 Year Free software updates, 1 Year Warranty
    • 1-Year Free Software Update - After you register and log in, you can enjoy a free software upgrade for one year. After one year, if you do not choose to continue to purchase the upgrade service, it will not affect the normal use of the device
    autel maxisys ultra hardware

    Autel Maxisys Ultra Main Features

    • Large 12.9" Touchscreen (2732 x 2048) / Android 7.0
    • 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
    • Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
    • Oscilloscope Preset Guided Component Tests / Waveform Library
    • New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
    • Split Screen Multi-Application Function / Dual Wi-Fi Connection
    • Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
    • Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
    • Repair Assist: Guided Procedures with DTC Analysis Fault Code Solutions
    • Code-Related Technical Service Bulletins (on select vehicles) / License Plate Reader
    • ScanVIN: Barcode or Text Recognition with Camera
    • Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
    • Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty Software Subscription
    • Enhanced Diagnostic Reports: PreSCAN PostSCAN
    • 18000mAh - 8hrs Continuous Use / 16MP Rear Camera 5MP Front Camera

    Autel MaxiSys Ultra Full Systems Diagnosis

    Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That's why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiSys Ultra. Now you can easily do functions like:

    1. Oil Reset: Reset the oil change calculator in the engine and automatic transmission
    2. EPB: Replacement of brake pads on vehicles with an electric parking brake
    3. SAS: Adaptation of the sensor to the angular position of the steering wheel
    4. DPF: Regeneration of diesel particulate filter
    5. Brake Bleed: ABS Brake Bleeding
    6. IMMO: Disable any lost keys and add new keys. *ONLY for vehicles with low-grade anti-theft systems. Compatible with GM, Ford, Toyota, Honda and other 56 brands or models.
    7. ​​TPMS: Battery registration and reset
    8. ​​Seat Calibration: Calibrate the memory in replaced or repaired seats
    9. Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator
    10. ​​A/F Reset: Set or learn Air/Fuel ratio parameters
    11. ​​Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality
    12. ​​Suspension Reset: Adjust the vehicle body height sensor for level calibration
    13. ​​BMS: Battery registration and reset

    autel maxisys ultra all systems diagnosis and service functions

    Autel MaxiSys Ultra Intelligent Diagnosis

    As the most ambitious tablet scanner developed by Autel, The Autel MaxiSys Ultra is designed to diversify the knowledge pool of repairers, simplify the diagnostic process and bring out the maximum potential of each technician. The 2021 newly added Repair Assist and TSB can consolidate and prioritize all detected fault codes and present in topology diagram. And also, it provides repair tips, videos, and related cases for your reference.

    autel maxisys ultra advanced diagnosis

    Autel 5 in 1 MaxiFlash VCMI - Four Isolated Channels

    Autel MaxiSys Ultra top automotive diagnosis scanner is equipped with MaxiFlash VCMI, a powerful multifunctional connector with Oscilloscope, Waveform Generator, Multimeter, and OBD Communication, functions worth over £1500 on the market. Via the VCMI with New CAN BUS Protocols (latest DOIP & CAN FD BUS) and OE-Diagnostic Protocol Standards (D-PDU/J2534/RP1210), you can use it with the original OE diagnosis scanner for programming.

    autel maxiflash advanced 5 in 1 VCMI

    Autel MaxiSys Ultra Advanced Functions:

    • ECU Programming/ECU Coding - Autel advanced diagnostic scanner Ultra comes with J2534 ECU programming device BMW Ethernet Cable(For F-Series Coding Programming), which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz/BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.
      Note: ECU Programming only for BMW/Mercedes Benz
    AUTEL MAXISYS ULTRA ECU PROGRAMMING
    • Bi-directional Control (Active Test) - Ultra automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
      Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or consult us directly.

      Autel Maxisys Ultra Detail Display:

      Autel Maxisys Ultra detail Autel Maxisys Ultra detail Autel Maxisys Ultra detail Autel Maxisys Ultra detail

      Autel Maxisys Ultra Specification:

      Operating System: Android 7.0
      Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
      Memory: 4GB RAM 256GB On-board Memory
      Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution capacitive touch screen
      Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS
      USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
      Camera: Rear: 16 Megapixel, Autofocus with Flashlight
      Front: 5 Megapixel
      Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
      Audio Input/Output: Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
      Power and Battery: 18000mAh 3.8 V lithium-polymer battery
      Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
      Input Voltage: 12V/3A Adapter
      Operating Temp.: 0 to 50°C (32 to 122°F)
      Storage Temp.: -20 to 60°C (-4 to 140°F)
      Dimensions (W x H x D): 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
      Weight 2.18kg (4.81 lb.)
      Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20),
      TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS),
      Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

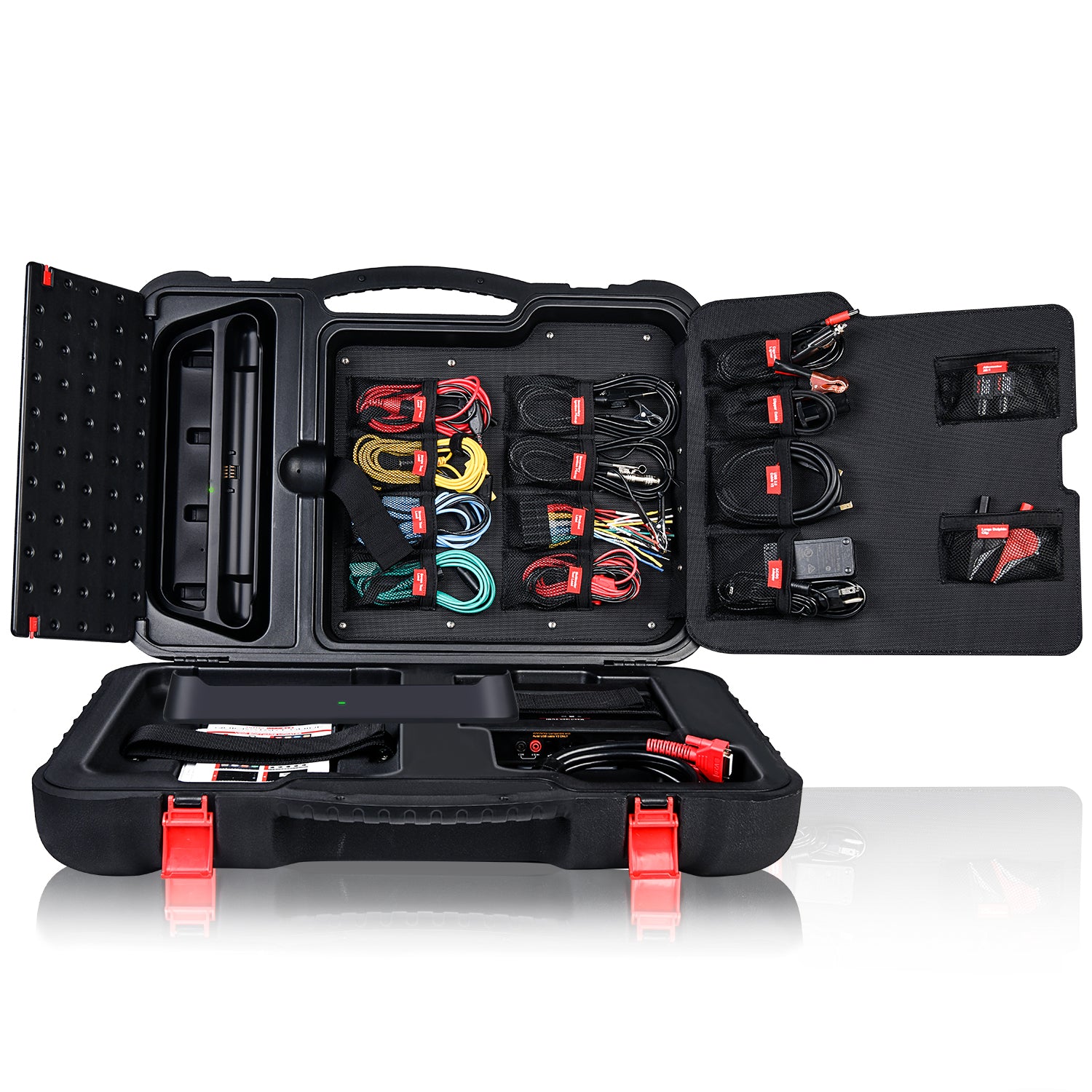

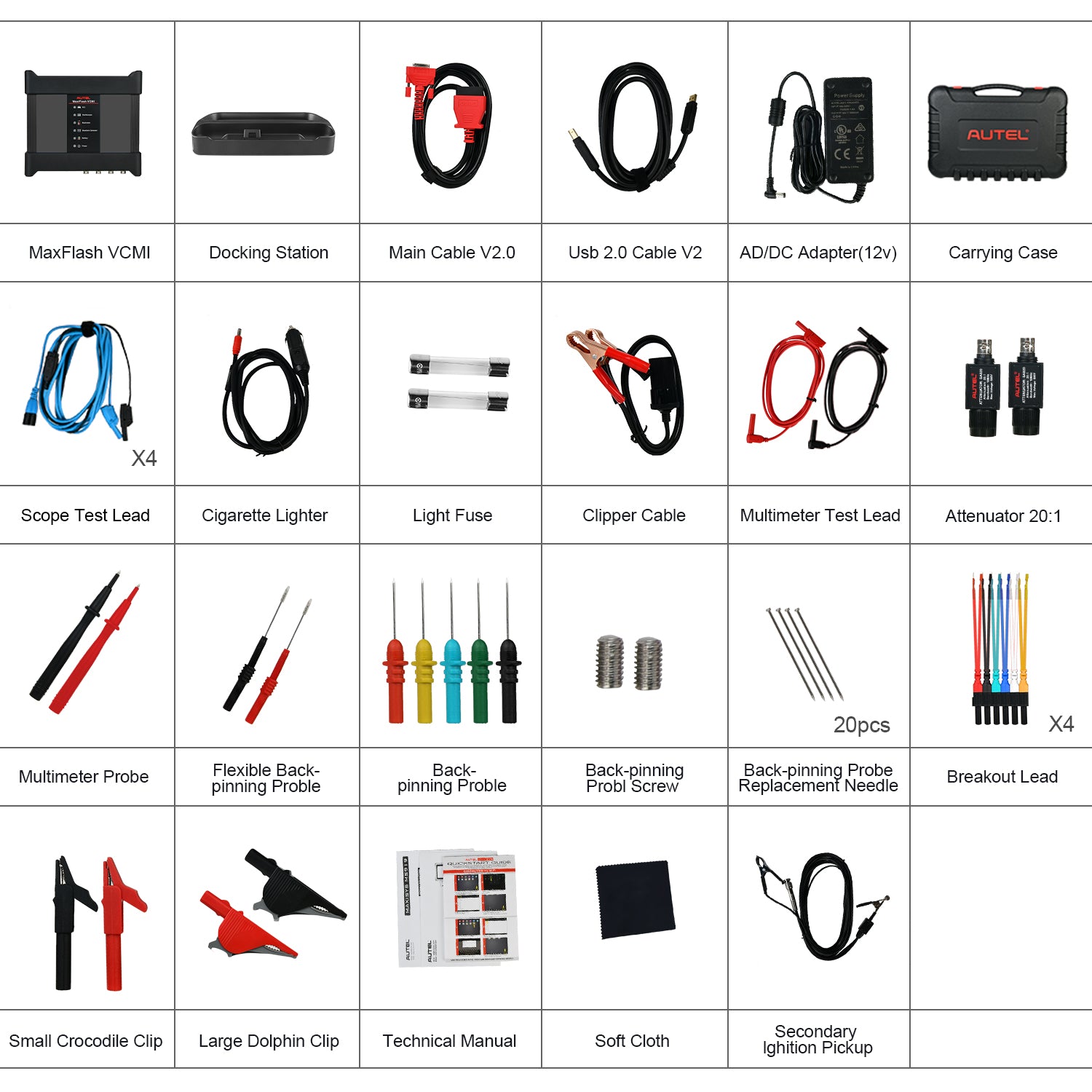

      Autel MaxiSYS Ultra Package List:

      • Maxisys Ultra Main Unit
      • MaxiFlash VCMI
      • Docking Station
      • Main Cable V2.0
      • USB 2.0 Cable V2
      • AC/DC Adapter(12V)
      • Cigarette Lighter
      • 2 PCS*Light Fuse (6x30mm )
      • Clipper Cable
      • 4 PCS*Scope Test Lead
      • 2 PCS*Multimeter Test Lead
      • 2 PCS*Secondary Ignition Pickup
      • 2 PCS*Attenuator 20:1
      • 4x6 PCS*Breakout Lead
      • 1x2 PCS*Multimeter Probe
      •  2x2 PCS*Flexible Back-pinning Probe
      • 1x5 PCS*Back-pinning Probe - Red/Green/Blue/Yellow/Black
      • 2 PCS*Back-pinning Probe Screw
      • 20 PCS*Back-pinning Probe Replacement Needle
      • 2x2 PCS*Small Crocodile Clip
      • 1x2 PCS*Large Dolphin Clip
      • Quick Reference Guide
      • Packing List
      • Soft Cloth
      • Tool Box (177 x 102.5 x 23.5 mm)
      • Carrying Case (687 x 170 x 470 mm)
      • 1pc x for Benz-14 (for EU Version) [gift]
      • 1pc x for Chrysler-16 (for US Version) [gift]
      • 1pc x for BMW-20 [gift]
      • 1pc x for Kia-20 [gift]
      • 1pc x for Nissan-14 [gift]
      • 1pc x for GM/Daewoo-12 [gift]
      • 1pc x for Honda-3 [gift]
      • 1pc x for VW/AUDI-2+2 [gift]
      • 1pc x for Mitsubishi/Hyundai-12+16 [gift]
      • 1pc x for Benz-38 [gift]
      • 1pc x for PSA-2 [gift]
      • 1pc x for Fiat-3 [gift]

      OBD Port Box Package List

      Some Information You Wish You Know Before Buying

      Q: Is your company an authorized dealer of Autel?

      A: Yes, we are an official authorized online reseller of Autel. You can enter the Autel official website  www.autel.com, click "where to buy" in the menu bar, and then select "online", the first "AO Jia Si" is our company.

      Autel authorized resellers

      Q: If I buy a product, where will it be shipped from? Do I need to pay any other fees?

      A: We have UK, France, Germany, Spain and other warehouses in Europe. If you are located in the UK, the products will be dispatched from the UK warehouse, the logistics time is 3-5 days, and the delivery company is Royal Mail/Yodel. Free shipping, you don't need to pay other fees.

      Q: When does the one-year free upgrade start to count? Will normal use be affected if I do not purchase the upgrade service after one year?

      A: The one-year free upgrade service for each device starts when you register and log in to your account, and you can check the expiration time in the settings. After one year, if you do not continue to purchase the upgrade service, it will not affect your normal use of Autel devices, but you will not be able to update the latest upgraded functions.

      Q: How can I make sure the product will work properly in my vehicle? If something goes wrong, can I return it?

      A: Our products can be used on any OBD2 compliant vehicle, with the difference that partial reset services and advanced features are only available on some brands of vehicles. So, to ensure your shopping experience, please send the VIN of your vehicle and your needs to our Email--👉Contact us👈, we will reply you within one working day.
      We guarantee 30 days no reason to refund, if it is not due to quality problems, you need to pay for the postage.

    1. (1/5) Autel MaxiSys Ultra: Introducing the MaxiSys Ultra

      (2/5) Autel MaxiSys Ultra: How to connect Ultra with vehicle

      (3/5) Autel MaxiSys Ultra: How to use intelligent diagnostics

      (4/5) Autel MaxiSys Ultra: Upgraded Topology Module and Diagnostics Basic Function

      (5/5) Autel MaxiSys Ultra: How to Use Ultra for Programming and Coding

      Autel MaxiSYS Ultra - Topology Mapping

      Autel MaxiSYS Ultra - Unboxing Introduction

      Autel MaxiSYS Ultra - Hardware Introduction

      Autel MaxiSYS Ultra - Intelligent Diagnostics

    2. Model MS908S Pro MK908P Elite II Ultra Lite Ultra
      Hardware
      CPU Exynox 5260 Exynox 5260 Exynos 8895 Exynos 8895 Exynos 8895
      RAM 2GB 2GB 4GB 4GB 4GB
      ROM 64GB 64GB 128GB 256GB 256GB
      Battery Capacity 11000 mAh 15000 mAh 15400 mAh 18000 mAh 18000 mAh
      Android Version Android 4.4.2 Android 4.4.2 Android 7.0 Android 7.0 Android 7.0
      Screen Size 9.7 inch 10.1 inch 9.7 inch 12.9 inch 12.9 inch
      Screen Resolution 1024*768 1920*1200 1536*2048 2732*2048 2732*2048
      Camera Rear 8.0 Megapixel Rear 8.0 Megapixel Rear 16.0 Megapixel
      Front 5.0 Megapixel
      Rear 16.0 Megapixel
      Front 5.0 Megapixel
      Rear 16.0 Megapixel
      Front 5.0 Megapixel
      VCI MaxiFlash Elite MaxiFlash Elite MaxiFlash Elite MaxiFlash VCI MaxiFlash VCMI
      Software
      Basic Diagnostic Function
      Service
      Special Functions
      Bi-Directional Control(Active Test)
      Online ECU Programming √(Benz, BMW) √(Benz, BMW) √(Benz, BMW) √(Benz, BMW) √(Benz, BMW)
      Online ECU Coding √(Benz, BMW, Audi, Porsche, VW) √(Benz, BMW, Audi, Porsche, VW) √(Benz, BMW, Audi, Porsche, VW) √(Benz, BMW, Audi, Porsche, VW) √(Benz, BMW, Audi, Porsche, VW)
      VW, Audi, Skoda Brush Hidden √(Need to purchase OTG conversion cable and F chassis special cable √(Need to purchase OTG conversion cable and F chassis special cable
      VW, Audi, Skoda, Seat, Bently, Man LD Guide function
      McLaren, Tesla diagnostics /
      Extended function
      Oscilloscope function (requires MP408)
      Endoscope function (requires MV105/MV108) /
      Battery Test /
      Remote Expert /
      Flagship Product Features
      Intelligent diagnostics (TSB technical bulletins, DTC guidance, fault prioritization, maintenance videos, etc.) / / /
      Diagnostic System Topology / / /
      Diagnostic standard D-PDU/RP1210 / / /
      Bus protocol DoIP/CAN FD / / /
      New Features
      Language Only English Multi-Language Multi-Language Only English Only English
      Autel Cloud Service
      Wifi Printer / /
      Accessories Free TS508 Free MV108 Free A Box of OBD1 No-Strandard Adapters Free A Box of OBD1 No-Strandard Adapters Free A Box of OBD1 No-Strandard Adapters
      Price £1899.00 £1834.00 £2049.00 3199.00 3499.00
