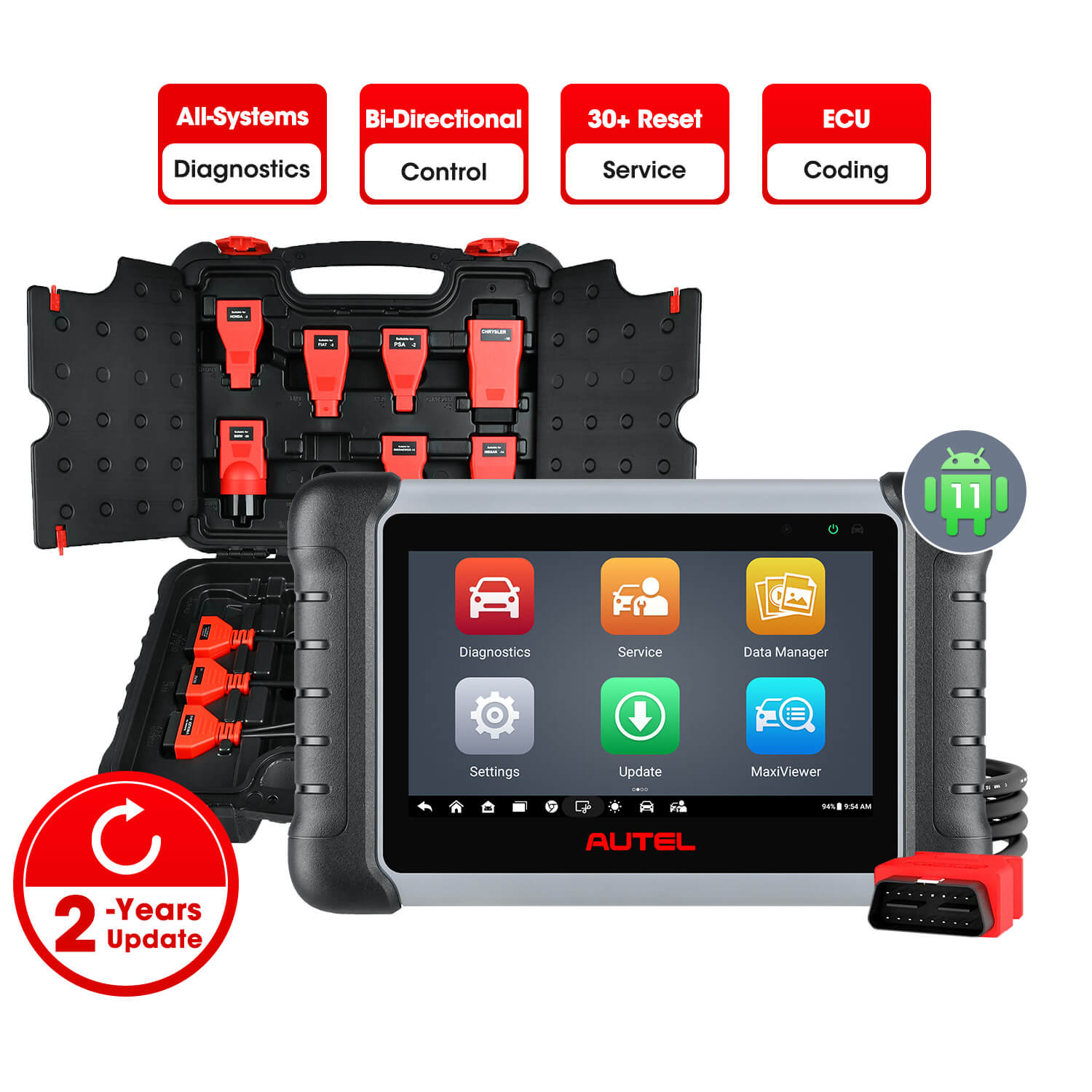

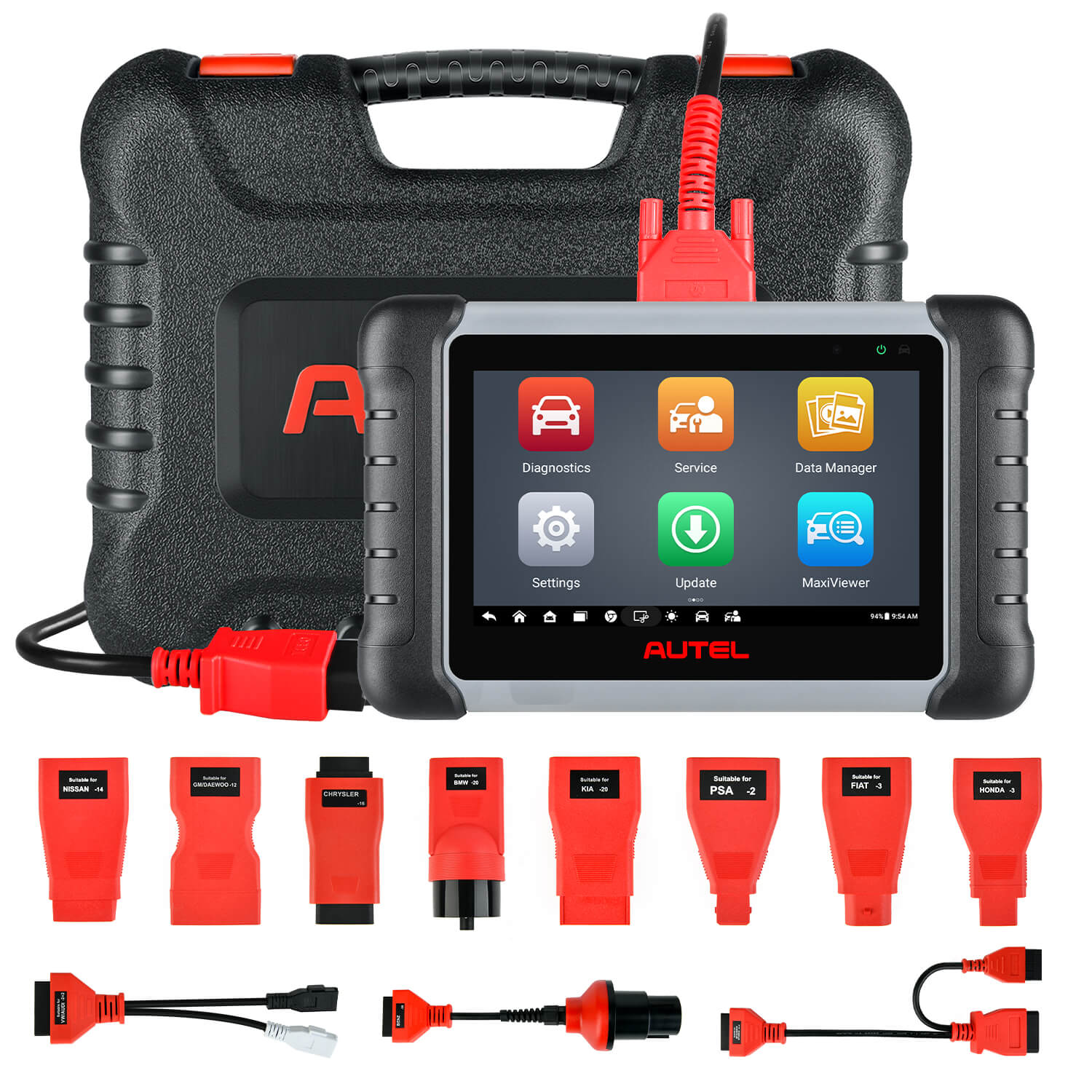

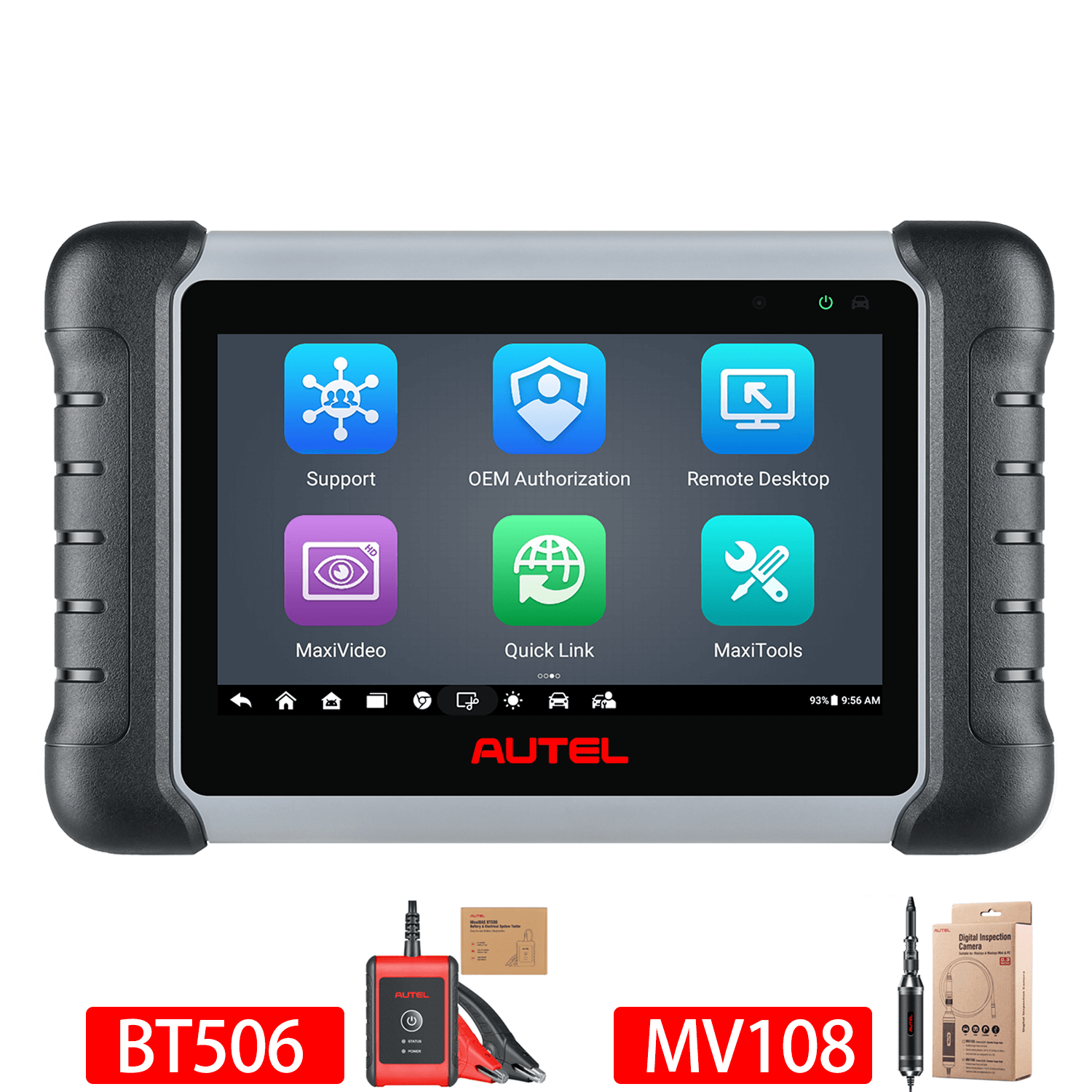

Autel MaxiPRO MP808S Kit

The Autel MP808S Kit is a powerful diagnostic tool designed for professional automotive technicians and mechanics. It features a large 7-inch touchscreen display and is capable of performing comprehensive diagnostic functions on all major vehicle systems, including engine, transmission, ABS, SRS, and more.

The MP808S Kit is an upgraded version of the MP808K, with hardware improvements including an increase in RAM from 1G to 4G, as well as a better CPU and operating system. In addition, software upgrades mainly focus on supporting online ECU coding.

Comparison of similar models

Autel MaxiPro MP808S Kit Main Features

• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
• Exceptional OE-Level system coverage for all electronic systems
• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
• Smart AutoVIN technology for identifying vehicles easily
• Automatic system and software updates with real-time push message notifications via Wi-Fi
• Instant remote control tech support anytime, anywhere
• Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
• Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Convenient data management system for managing internal program applications and reviewing data

The Diagnostics tool MP808S Kit's application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)

Vehicle Identification

The MaxiPro diagnostic system (MP808S Kit)supports four methods for Vehicle Identification.

Auto Scan

The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle to locate systems’ faults and retrieve DTCs. An example of the Auto Scan interface is pictured below:

Control Unit

Manually locate a required control system for testing through a series of selection choices. Follow the menu driven procedures and make proper selection; MP808S Kit can guide the user to the proper diagnostic function menu based on selections.

• ECU Information - Upgraded Version MP808S Kit provides the retrieved ECU information in detail. An information screen opens upon selection.

• Trouble Codes - The function of MP808S Kit includes Read codes and Erase codes functions. Displays detailed information of DTC records retrieved from the test vehicle’s ECU and erases DTC records and other data from the test vehicle’s ECU

• Freeze Frame - displays the freeze frame data of the DTCs

• Live Data - retrieves and displays live data and parameters from the test vehicle’s ECU

• Active Test - provides specific subsystem and component tests

• Special Functions - performs various component adaptations

ECU Information

MP808S Kit retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.

Trouble Codes

Live Data

When this function is selected, the screen displays the data list for the selected module. The items available for any control module vary from one vehicle to another. The parameters display in the order that they are transmitted by the ECM, so expect variation between vehicles.

Generic OBDII Operations

A fast-access option for OBDII/EOBD vehicle diagnosis is available on the Vehicle Menu screen. This option presents a quick way to check for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related. The OBD direct access option is also used for testing OBDII/EOBD compliant vehicles that are not included in the Diagnostics database.

General Procedure

1. Tap the Diagnostics application button from the MaxiPro Job Menu. The Vehicle Menu displays

2. Tap the EOBD button. There are two options to establish communication with the vehicle

   • •

     • Auto Scan — when this option is selected the diagnostic tool attempts to establish communication using each protocol in order to determine which 30 one the vehicle is broadcasting on

   • •

     • Protocol — when this option is selected the screen opens a submenu of various protocols. A communication protocol is a standardized way of data communication between an ECM and a diagnostic tool. Global OBD may use several different communications protocols

   • •

     • Auto Scan — when this option is selected the diagnostic tool attempts to establish communication using each protocol in order to determine which 30 one the vehicle is broadcasting on

   • •

     • Protocol — when this option is selected the screen opens a submenu of various protocols. A communication protocol is a standardized way of data communication between an ECM and a diagnostic tool. Global OBD may use several different communications protocols

3. Select a specific protocol under the Protocol option. Wait for the OBDII Diagnostic Menu to appear

Function Descriptions

DTC & FFD

When this function is selected, the screen displays a list of Stored Codes and Pending Codes. When the Freeze data of certain DTCs are available for viewing, a snowflake button will display on the right side of the DTC item.

• Stored Codes

  Stored codes are the current emission related DTCs from the ECM of the vehicle. OBDII/EOBD Codes have a priority according to their emission severity, with higher priority codes overwriting lower priority codes. The priority of the code determines the illumination of the MIL and the codes erase procedure. Manufacturers rank codes differently, so expect to see differences between makes.

• Pending Codes

  These are codes whose setting conditions were met during the last drive cycle, but need to be met on two or more consecutive drive cycles before the DTC actually sets. The intended use of this service is to assist the service technician after a vehicle repair and after clearing diagnostic information, by reporting test results after a driving cycle.

  1. If a test failed during the driving cycle, the DTC associated with that test is reported. If the pending fault does not occur again within 40 to 80 warm-up cycles, the fault is automatically cleared from memory.
  2. Test results reported by this service do not necessarily indicate a faulty component or system. If test results indicate another failure after additional driving, then a DTC is set to indicate a faulty component or system, and the MIL is illuminated.
• Freeze Frame

  In most cases the stored frame is the last DTC that occurred. Certain DTCs, which have a greater impact on vehicle emission, have a higher priority. In these cases, 32 the top prioritized DTC is the one for which the freeze frame records are retained. Freeze data includes a “snapshot” of critical parameter values at the time the DTC is set.

• Clear DTC

  This option is used to clear all emission related diagnostic data such as, DTCs, freeze frame data and manufacturer specific enhanced data from the vehicle’s ECM. A confirmation screen displays when the clear codes option is selected to prevent accidental loss of data. Select Yes on the confirmation screen to continue or No to exit.

Service

The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.

The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us and inform us of

Autel MaxiPro MP808S Kit Bi-Directional Control(Active Test)

Autel MaxiPro MP808S Kit, automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.

Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or consult us directly

Autel MaxiPro MP808S Kit Key FOB Programming

Autel MP808S Kit Helpful Functions For Mechanics & Auto Repair Shops

• MaxiFix – Autel MP808S Kit comes with an online troubleshooter database that provides you with all common DTCs database for most vehicles and allows you to network with other users.
• Remote Desk – MP808S Kit works with TeamViewer Quick Support to enable you to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your tablet diagnostic tool on their PC.
• Shop Manager – MaxiPro MP808S Kit owns an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.
• Data Manager – MP808S Kit Supports to store, print, and review the saved files.

Autel MaxiPRO MP808S Kit Specification:
