Autel Maxisys MS906BT Review: high-end bluetooth obd2 automoblie diagnostic tool

Autel Maxisys MS906BT is an upgraded version of Autel MS906 diagnostic scanners and mainly built for individuals in search of quality and advanced wireless diagnostic auto scanner.

Autel Maxisys MS906BT has a wide coverage as it can scan U.S, European, and Asian Models. It also covers a variety of cars from over 80 manufacturers worldwide. Same times, MS906BT boasts of such functions as covering codes, actuation tests, ECU, adaptations, and coding, etc.

Autel MS906bt
Autel Maxisys MS906BT

In order to fully understand the efficiency of Autel Maxisys MS906BT, read this detailed review to find out more about this professional automotive diagnostic scanner.

Autel Maxisys MS906BT Review Contents

1.First Review Technical Specifications of Autel MS906BT
   1.1 Features
   1.2 Specifications
2. Look at the box of ms906bt
3. Autel Maxisys MS906BT Detailed Review
   3.1 Wireless Accurate Diagnosis
   3.2 Bi-directional Control and ECU Coding
   3.3 Adequate Connectivity
   3.4 Special Functions
3.Summary: Why buy?
4.Our Advice

First Review Technical Specifications of Autel MS906BT


Autel MS906BT Specifications

Operating System: Android 4.4.2
Processor: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Display: 8.0″ LED capacitive touch screen with 1024x768P resolution
Memory: RAM: 2GB, ROM: 32GB
Camera: Built-in 8-megapixel rear camera, autofocus & flashlight
Oil Reset: Yes
Live data: Yes
Views freeze frame data: Yes
Instant remote control tech support anytime, anywhere: Yes
Smart AutoVIN technology: Yes
Wireless VCI: Yes
Oscilloscope (add on): Yes
Inspection Camera (add on): Yes
Complete OEM-Specific Scanner coverage: Yes
ECU coding: Yes
Connectivity: Wi-Fi, USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a
Real-time push message notifications: Yes
Audio Input/Output: Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply (up to 14 hours of continuous operation)
Input Voltage: 12 V (9-35 V)
Vehicle Coverage: more than 80 US, Asian and European makes and models
Support Car Models: Abarth, Audi, Bentley, Acura, Alfa, Benz, Bmw,
Fiat, Ford, Bugatti, Chevrolet, Gm, Holden, Chrysler,
Hyundai, Citroen, Dodge, Infiniti, Isuzu, Dacia, Daihatsu,
Kia, Land Rover, Maybach, Mazda, Lexus, Lancia, Mini, Mitsubishi,
Honda, Nissan, Opel, Jaguar, Jeep, Peugeot, Saab, Scion, Seat,
Skoda, Smart, Porsche, Renault, Sprinter, Subaru, Suzuki,
Toyota, Vauxhall, Volvo, Vw, Etc..
Operating Temperature: -10 to 55°C (14 to 131°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Update Option: Yes.(via internet)
Warranty: One year limited warranty

autel ms906bt price
Check Today’s Price

Look at the box of ms906bt

complete package of autel ms906bt
the complete package of Autel ms906bt

  • AC/DC Adapter (12V)
  • Adapter for Chrysler-16 (America Only)
  • Adapter for GM/Daewoo-12
  • Adapter for Benz-38
  • Adapter for Mitsubishi/Hyundai-12+16
  • Adapter for Honda-3
  • Adapter for BMW-20
  • Adapter for Kia-20
  • Adapter for Nissan-14
  • Adapter for VW/AUDI-2+2
  • Cigarette Lighter
  • MaxiVCI V100
  • Lighter Fuse
  • Soft Cloth
  • Mini USB Cable
  • User Manual
  • Packing List
  • Carrying Case
  • Quick Reference Guide
  • MV108 inspection camera
  • CD

Autel Maxisys MS906BT Detailed Review

1.Wireless Accurate Diagnosis:

The Autel Maxisys MS906BT is a Bluetooth enabled equipment. Due to this, it has the ability to connect to a vehicle and transmit data wirelessly within a working range of up to 164 feet (around 50m). The scanner helps to transmit information to the Android device within the same connection range allowing you to diagnose and possibly fix the vehicle without actually being in too much contact with the car. Cool right?

2.Bi-directional Control and ECU Coding

With the ability to send and receive information to and from the vehicle, the Autel Maxisys MS906BT can ensure that one can access the function of individual parts or the system as a whole. This means that whilst troubleshooting the vehicle system as a whole, you can know which part is faulty.

Bi-directional Control and ECU Coding

The Autel Maxisys MS906BT does this by reading the engine ECU data, monitoring the operation of the actuators while reading values from multiple sensors. The ECU coding also makes it possible for it to reprogram an engine’s ECU right from the Android device.

3.Adequate Connectivity

At times, one might need to connect to the internet or other people who’ve had a previous encounter with certain situations. The adequate Wi-Fi connection gives the users the opportunity to contact other technicians or check how previously verified repairs were done. Also, if there is a need to get additional information from the manufacturer, the interactive data logging can be used.

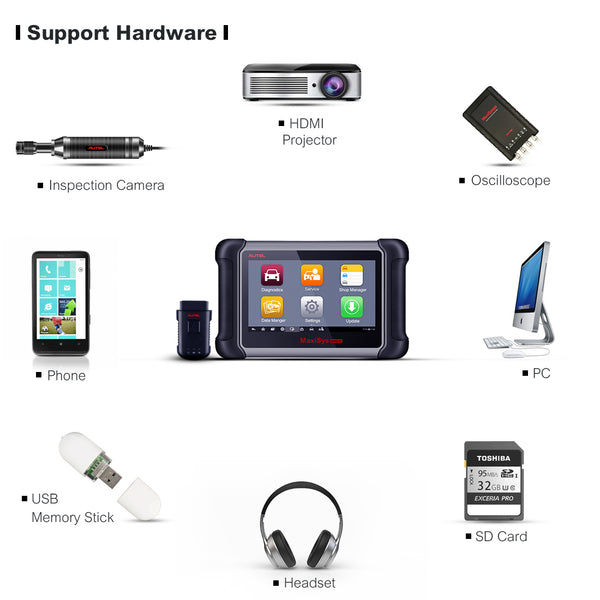

MS906BT Supports Multi-Hardware

4.Special Functions

Being a wireless diagnostic tool, the Autel Maxisys MS906BT provides the luxury of performing multiple functions right on the android device. Most engine issues signaled by the “check engine” light can be solved on-the-go by some of these special functions.

In fact, it actually has 18 service functions. This consequently leads to an easier service.

18 special service functions

Some of the functions include the following:

4.1 Oil Reset Service:

The Autel Maxisys MS906BT can help clear or reset the oil maintenance minder system using the Android device after changing the oil. It can also help clear the oil warning light.

4.2 SAS Calibration:

The steering angle sensor measures the steering wheel position and the rate of turn. In situations whereby the steering angle is slightly tilted away from the normal angle, it is usually due to an anomaly in the SAS calibration.

Isn’t that just amazing?!

4.3 TPMS programming:

The Autel Maxisys MS906BT helps to detect accurately the tire sensor IDs from the vehicle’s engine control unit. It then uses this information to program the TPMS.

4.4 EPB service:

Immediately the brake pads are repaired or tampered with, the Autel Maxisys MS906BT can help to reset the EPB. This helps to prevent any kind of software malfunction in the “new” brakes.

4.5 DPF Regeneration:

This feature ensures that there is always an optimal filter performance at all times. The Diesel particulate filter helps to filter particulate matter in the diesel. It, however, retains the particulate matter and the DPF regeneration hence constantly clears particulate matter.

Summary: Why buy?

  • It has a high-quality and clear LCD color screen
  • Autel ms906bt provides multiple languages for easy use
  • It comes with a built-in battery that is long-lasting
  • Its small and compact design makes moving around to be easy
  • It has a good storage of 32GB to keep data
  • It comes with one year of free software updates
  • Autel offers a one-year limited warranty which is comprehensive

Our Advice

Autel Maxisys MS906BT scanning tool is a product that performs every aspect of the scanning and diagnostic task. Besides, it goes a step further to make your user experience pleasant and worth its value. The device will surprise you with much more features than you wouldn’t have imagined. To wrap things up if you are a professional then this is a thumb up tool for you. It will go a long way in making every scanning and diagnostic need incredibly easy.


Question: Can I use the Autel Maxisys MS906BT when the car is switched off?
Answer: Yes, you can. The Autel Maxisys MS906BT features built-in rechargeable lithium-polymer battery with a continuous runtime of up to 14 hours. This battery allows the user to review his or her car when the car is switched off or when the car power is off. Thus, you never have to worry about diagnosing your vehicle at any time or condition.
