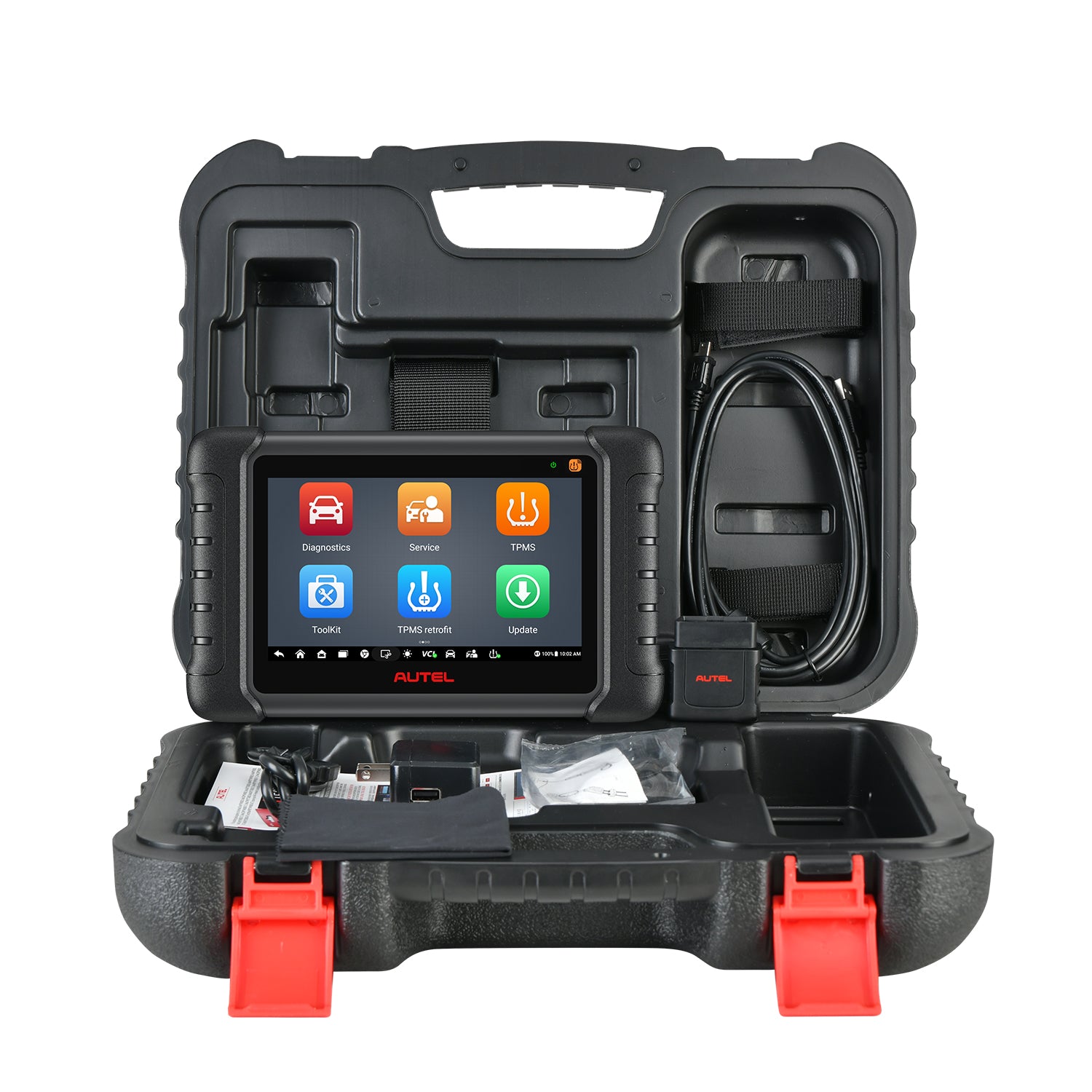

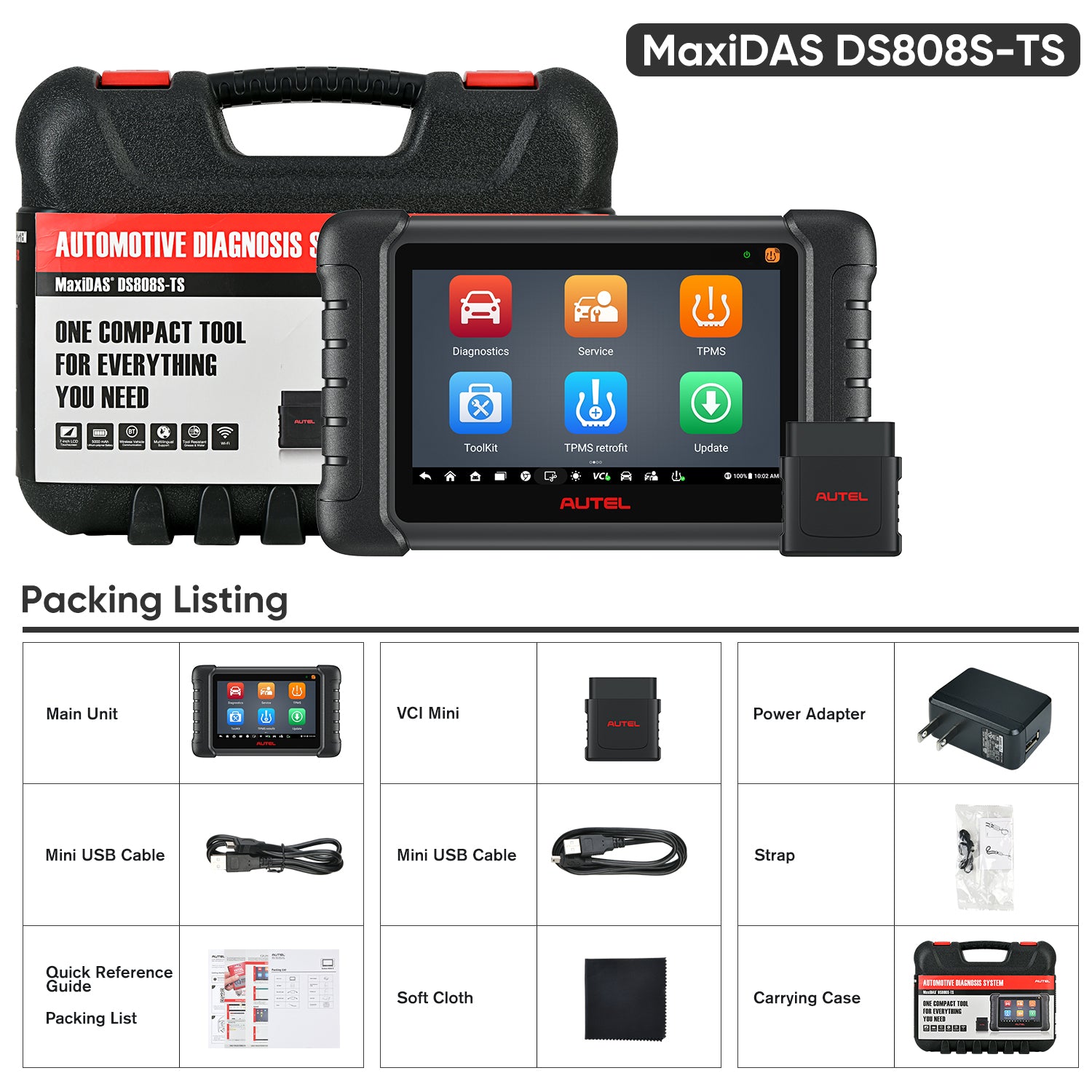

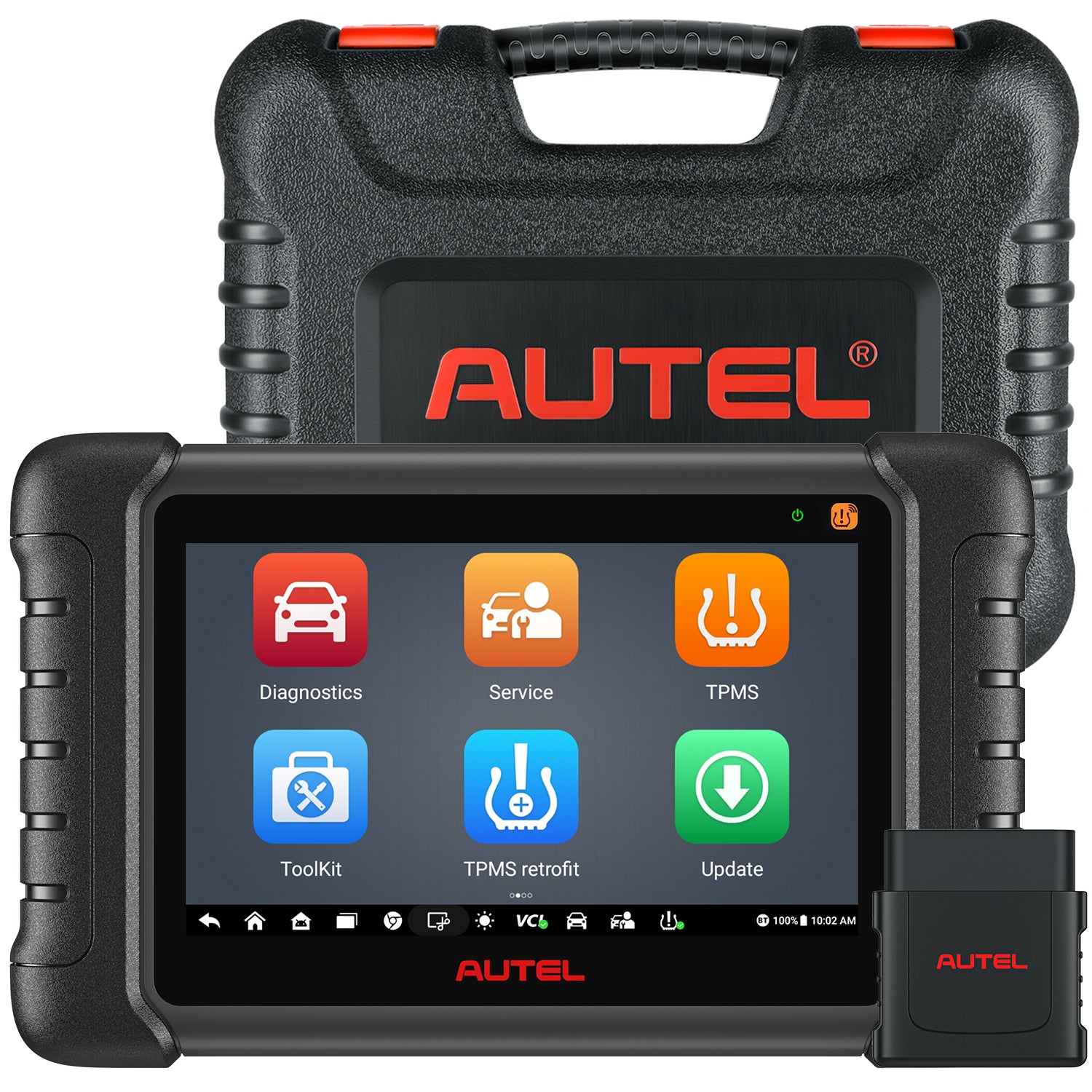

Autel MaxiDAS DS808S TS
The Autel DS808S TS is a comprehensive diagnostic tool designed for professional mechanics and technicians. It offers a wide range of advanced features, including both OBD2 diagnosis and complete TPMS functionality. With the OBD2 diagnosis feature, the DS808S TS can quickly and accurately diagnose engine faults and provide detailed diagnostic reports. It supports a wide range of vehicle makes and models, and can read and clear diagnostic trouble codes, as well as display live data streams and graph data. In addition, the DS808S TS offers advanced functions such as oil reset, EPB, SAS, DPF, and battery reset, providing comprehensive diagnostic capabilities for both basic and advanced vehicle systems.
The DS808S TS also provides complete TPMS functionality, allowing users to activate, read, and program TPMS sensors. It can quickly identify sensor types and read sensor data, and offers advanced functions such as relearn procedures and TPMS system status checks. The DS808S TS also supports multi-lingual user interfaces and can display data in a variety of formats, making it easy for technicians to use and understand.
-
-
No IP Restriction, You can use DS808S TS all over the world.
-
-
Autel Scan Tool DS808S TSworks well on 80+ car makes and models worldwide (1996 and newer)
-
-
MaxiDAS DS808S TS Scanner has up to 30 Reset service functions options
-
-
DS808S TS is an upgraded model of DS808, which has improved hardware.
-
-
Autel MaxiDAS DS808S TS flagship diagnostic tool supports Online ECU Coding and Programming
-
-
Autel MaxiDAS DS808S TS supports active test diagnostic function
-
-
Autel brand new authentic tool comes with 1-Year warranty
-
-
Autel DS808S TS can be used with BT506 for battery test
-
-
No IP Restriction, You can use DS808S TS all over the world.
-
-
Autel Scan Tool DS808S TS works well on 80+ car makes and models worldwide (1996 and newer)
-
-
MaxiDAS DS808S TS Scanner has up to 30 Reset service functions options
-
-
DS808S TSis an upgraded model of DS808S TS, which has improved hardware.
-
-
Autel DS808S TS supports Online BMW ECU Coding
-
-
MaxiDAS DS808S TS supports active test diagnostic function
-
-
Autel brand new authentic tool comes with 1-Year warranty
-
-
Autel DS808S TScan be used with BT506 for battery test
Comparison of similar models
| Model |
DS808 |
DS808S TS |
| HardWare |
| CPU |
ROCKCHIP RK3188 (1.4GHz) |
ROCKCHIP RK3566 (1.8GHz) |
| RAM |
1GB |
4GB |
| Android Version |
Android 4.4.4 |
Android 11 |
| Wi-Fi |
2.4GHz |
2.4GHz & 5GHz |
| Software |
| Online ECU Coding |
/ |
Support (BMW/VW/Porsche) |
| Hidden Brush |
Android 4.4.4 |
Support (BMW/VW/Audi/Skoda) |
The Diagnostics tool DS808 II's application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)
Vehicle Identification
The MaxiDAS diagnostic system (DS808 II)supports four methods for Vehicle Identification.
- Auto VIN Scan
- Manual VIN Input
- Automatic Selection
- Manual Selection
- Auto VIN Scan
- Manual VIN Input
- Automatic Selection
- Manual Selection
Auto Scan
The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle to locate systems’ faults and retrieve DTCs. An example of the Auto Scan interface is pictured below:
Control Unit
Manually locate a required control system for testing through a series of selection choices.Follow the menu driven procedures and make proper selection; DS808 II can guide the user to the proper diagnostic function menu based on selections
-
ECU Information - Upgraded Version DS808 II provides the retrieved ECU information in detail. An information screen opens upon selection.
-
Trouble Codes - The function of DS808 II includes Read codes and Erase codes functions. Displays detailed information of DTC records retrieved from the test vehicle’s ECU and erases DTC records and other data from the test vehicle’s ECU
-
Freeze Frame - displays the freeze frame data of the DTCs
-
Live Data - retrieves and displays live data and parameters from the test vehicle’s ECU
-
Active Test - provides specific subsystem and component tests
-
Special Functions - performs various component adaptations.
ECU Information
DS808 II retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications.
Trouble Codes
-
Read Codes
Autel MaxiDAS DS808 II retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing
-
Erase Codes
After reading the retrieved codes and making appropriate vehicle repairs, use thisfunction to erase vehicle codes.
Live Data
When this function is selected, the screen displays the data list for the selected module. The items available for any control module vary from one vehicle to another. The parameters display in the order that they are transmitted by the ECM, so expect variation between vehicles
-
Active Test
The Active Test function is used to access vehicle-specific subsystem and component tests. Available tests vary depending on the manufacturer, year, and model.
During an active test, the tablet sends commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators. Such tests may include toggling between two positions of a solenoid, relay, or switch.
-
Special Functions
These functions perform various component adaptations, allowing you to recalibrate or configure certain components after making repairs or replacement.
The main menu displays the supported special functions for the test vehicle. Follow the on-screen instructions to complete the test. When the operation is done, a message such as Completed, Finished or Successful displays. Tap the ESC button to exit the function.
-
Active Test
The Active Test function is used to access vehicle-specific subsystem and component tests. Available tests vary depending on the manufacturer, year, and model.
During an active test, the tablet sends commands to the ECU in order to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators. Such tests may include toggling between two positions of a solenoid, relay, or switch.
-
Special Functions
These functions perform various component adaptations, allowing you to recalibrate or configure certain components after making repairs or replacement.
The main menu displays the supported special functions for the test vehicle. Follow the on-screen instructions to complete the test. When the operation is done, a message such as Completed, Finished or Successful displays. Tap the ESC button to exit the function.
Service
The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.
The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us and inform us of
-
- Vehicle information (brand, model, model or VIN )
- Requirements (code reading, clearing code? Which one or several items of the reset service? Or more advanced functions).
- Contact Us
-
- Vehicle information (brand, model, model or VIN )
- Requirements (code reading, clearing code? Which one or several items of the reset service? Or more advanced functions).
-
Complete TPMS Diagnosis
The Autel DS808S TS is a powerful diagnostic tool designed for professional mechanics and technicians. It provides a comprehensive TPMS diagnosis feature, offering advanced capabilities for diagnosing and repairing TPMS-related issues in vehicles.
The DS808S TS's TPMS diagnosis feature can quickly and accurately identify TPMS sensor types, read sensor data, and diagnose TPMS faults. It can perform TPMS system status checks, identify tire pressure discrepancies, and perform TPMS relearn procedures. In addition, the DS808S TS can program TPMS sensors and perform system-wide TPMS resets, providing a complete TPMS solution for vehicle maintenance and repair.
The DS808S TS also supports various TPMS sensor programming options, including the Auto Create and Auto Learn functions. The Auto Create function can generate new sensor IDs and program sensors with a single click, while the Auto Learn function can program new sensors in just a few simple steps. The tool also supports both 315 MHz and 433 MHz TPMS sensors, making it compatible with a wide range of vehicles.
Bi-Directional Control
Autel Scanner, MaxiDAS DS808 II comes with advanced bi-directional control (active test) function that allows mechanics determine the integrity of the system or parts by sending commands to a car with the tool and reading the data coming back from it. Such as ABS, window, door, solenoids, relay, switch, valves, sunroof, headlamps and etc.
ECU Coding
Autel MaxiDAS DS808 II professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.
Guided Function
The Guided Functions are advantaged with their easy operations. A guided functions is composed of multiple basic functions, freeing users from trouble such as looking up channel number and login code. Every guided function has detailed operation guidance and operating condition statement.
Autel MaxiDAS DS808 II Helpful Service
-
Auto VINThe diagnostic system features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system
-
Remote Desk – DS808 II works with TeamViewer Quick Support to enable you to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your tablet diagnostic tool on their PC.
-
Shop Manager – MaxiDAS DS808 II owns an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.
-
Data Manager –DS808 II Supports to store, print, and review the saved files.
-
Academy -Autel MaxiDAS DS808 II provides tutorials and technical bulletins written by top-notch technicians and product experts
Autel MaxiDAS DS808 II Additional Functions
Autel MaxiVideo MV108 Digital Inspection Camera
Autel Battery Tester BT506
Autel MaxiDAS DS808S TS Specifications
| Operating System: |
Android 11 |
| Processor: |
Cortex-A55 quad-core processor (1.8GHz) |
| Memory: |
64G ROM | 4G RAM |
| Display: |
7-inch LCD capacitive touchscreen with 1024x600 resolution |
| Connectivity: |
Mini USB 2.0; USB2.0; Wi-Fi:2.4GHz & 5GHz; HDMI Type A; Micro SD card slot(supports up to 32GB) |
| Sensors; |
Light sensor for brightness auto changing |
| Audio Input/Output: |
Input: N/A, Output: buzzer |
| Power and Battery: |
3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply |
| Tested Battery Life: |
Around 7 hours of continuous use |
| Battery Charging Input : |
5V/1.5A |
| Power Consumption: |
600 mA(LCD on with default brightness, Wi-Fi on)@3.7 V |
| Operating Temp.: |
0 to 55°C(32 to 131°F) |
| Storage Temp.: |
-20 to 60°C (-4 to 140°F) |
| Operating Humidity: |
5%-95% non-condensing |
| Dimensions (W x H x D): |
237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”) |
| Net Weight |
788 g (2.42 lb.) |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, SAE J2610,GM UART, Honda Diag-H Protocol,
ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), UART Echo Byte Protocol, TP2.0, TP1.6 |
