Autel XP400 Key & Chip Programmer VCI Dongle IMMO Key Reprogramming Tool for Autel MAXIIM IM508 IM608
by Autel UK
|
Save 41%
£689.00
£406.00
- Return:
- 30-days return or replacement View details »
- Shipping:
-
Free Shipping From United Kingdom
Estimated delivery time: 7-10 Days.View details »
- Payment:
- Description
- Shipping
-

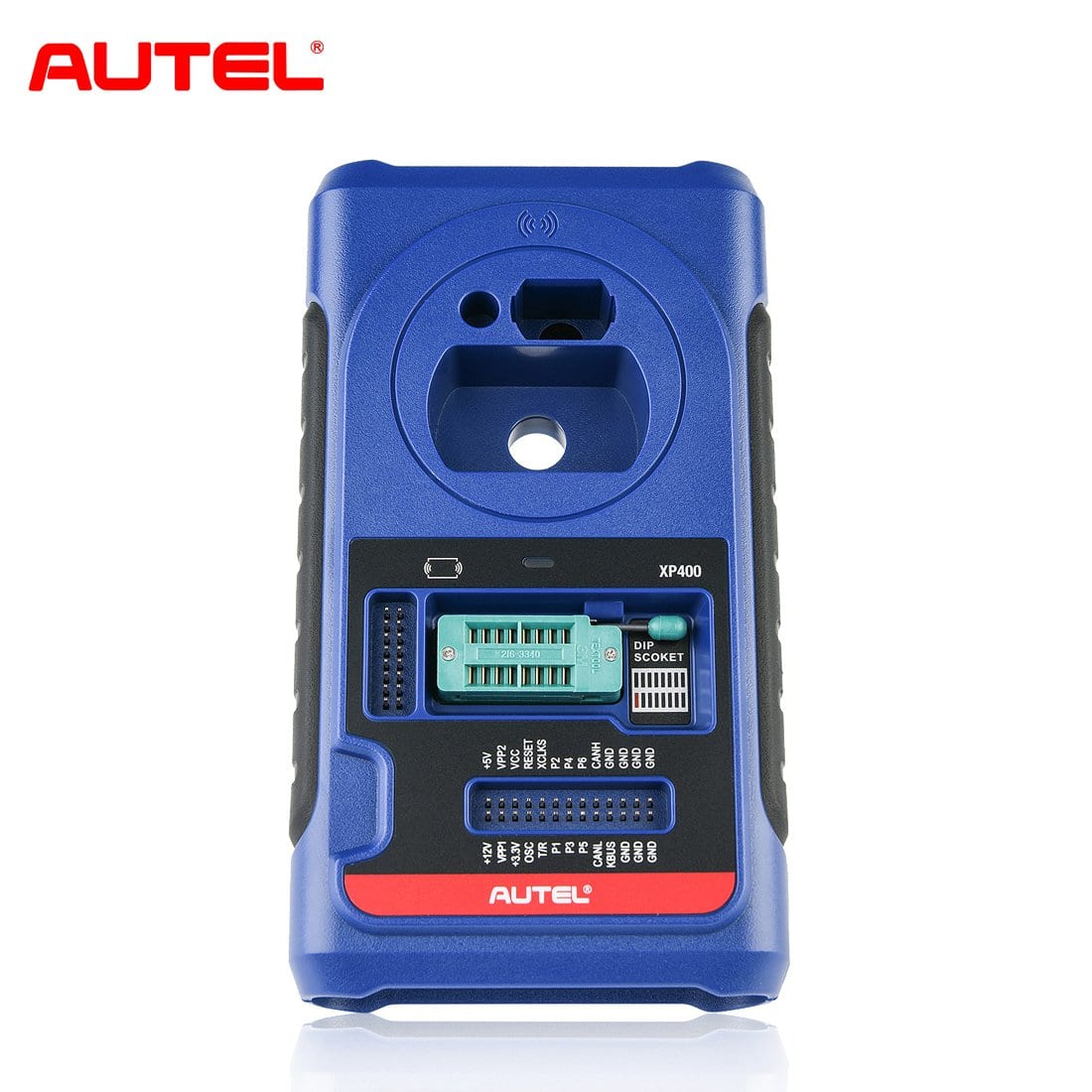

Autel XP400 SWITCH & CHIP PROGRAMMER
XP400 can be used with Autel MaxiIIM IM508 / IM608, Auro Otosys IM100 / IM600 to do advanced key progeamming work. Note: The tablet and J2534 Box in the advertising image are for display only, do not include in the package content.
- PC Supported
- MCU / EEPROM Chip Read / Write
- ECU Read / Write
- MC9S12 Encrypted Chip Read / Write
- Key Reading / Writing
- Mercedes Infrared Key Reading / Writing
- Finding the Control Frequency
- IC Card Reading / Writing
XP400 Key & Chip Programmer Instruction:
- Connect the IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions.

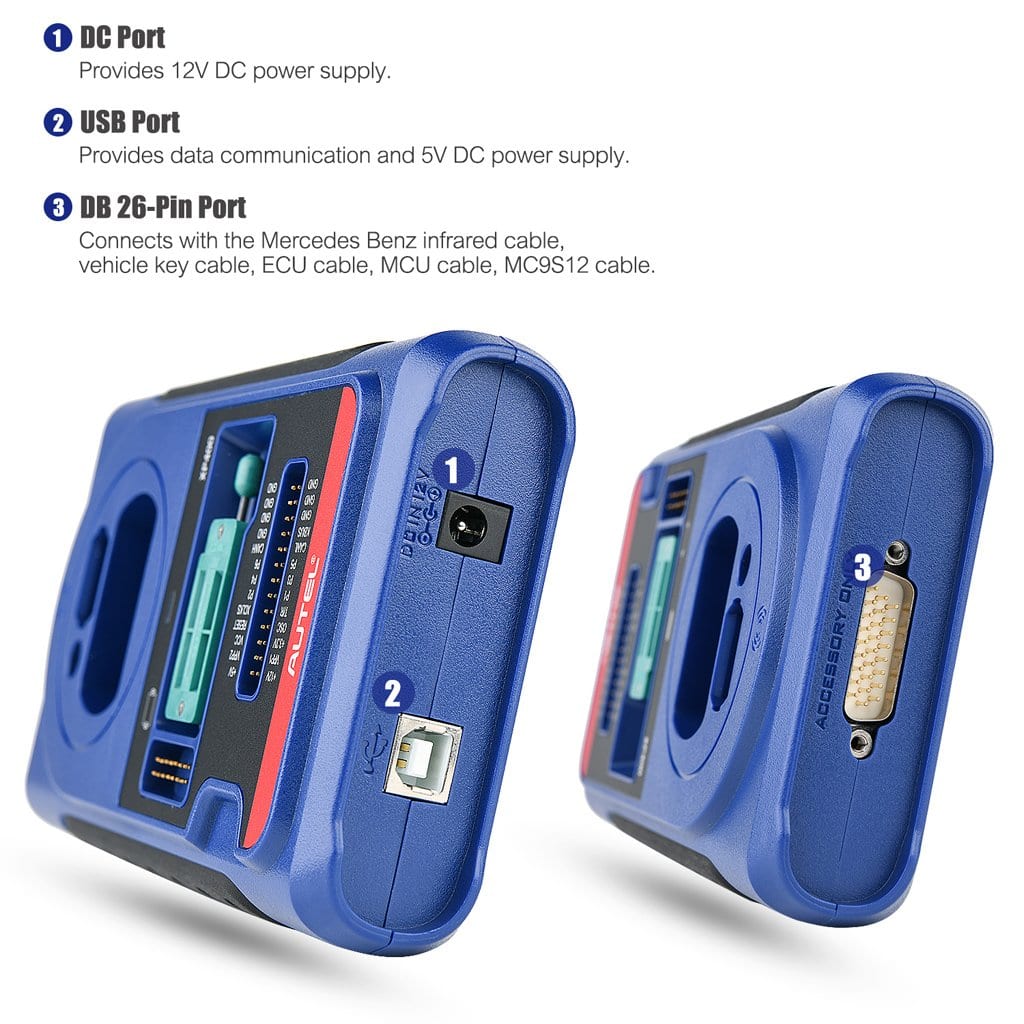

- 1. DC Port – provides 12V DC power supply.
- 2. USB Port – provides data communication and 5V DC power supply.
- 3. DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.
- 4. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
- 5. IC Card Induction Area
- 6. Vehicle Key Slot – holds the vehicle key.
- 7. Transponder Slot – holds the transponder.
- 8. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11
- 9. Mercedes Infrared Key Slot – holds the Mercedes infrared key.
- 10. Status LED – indicates the current operating status.
- 11. Locker – locks the EEPROM component transponder slot to ensure proper functioning.
- 12. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.
- DC Port: Provides 12 V power supply for the XP400.
- USB Port: Provides data communication and power supply for handheld device, PC and XP400.

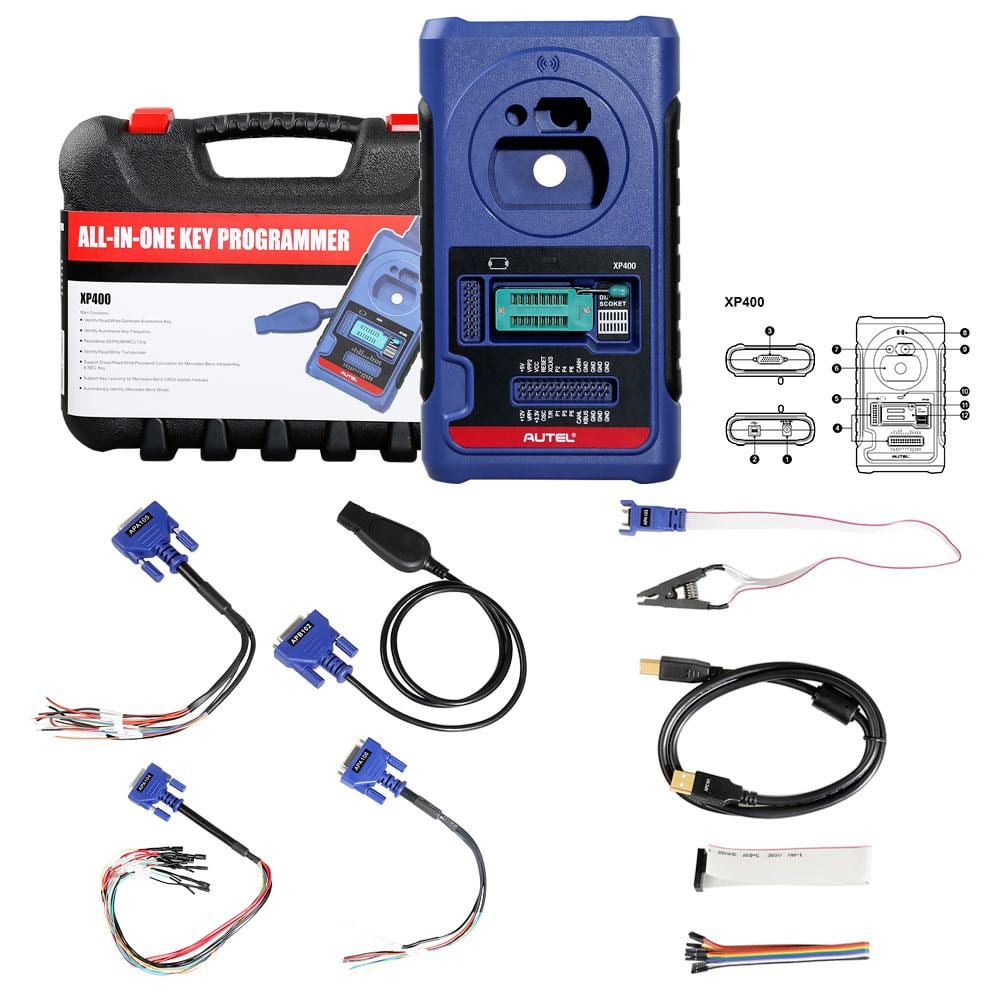

- DB 26-Pin Port: 5 components can be connected to this port:
- Mercedes Infrared Cable
- APA102 – Remote Match Cable (optional)
- APA104 – ECU Cable
- APA105 – MCU Cable
- APA106 – MC9S12 Cable
Why Buy an XP400 Device?
- If your original XP400 for IM608 / IM600 is broken, you can buy this to replace the old one. Or If you have a MaxiIM IM508 or Otosys IM100, you want to do advanced IMMO reprogramming like IM608 / IM600 do, you can buy an XP400 for your machine. Then it works on IMMO functions as im608 / im600. Detailed functions comparison between XP400 and XP200, please refer to bellow chart.
