Autel IMMO - How to Use the G-Box for Mercedes(Use IM608 as operating tool)

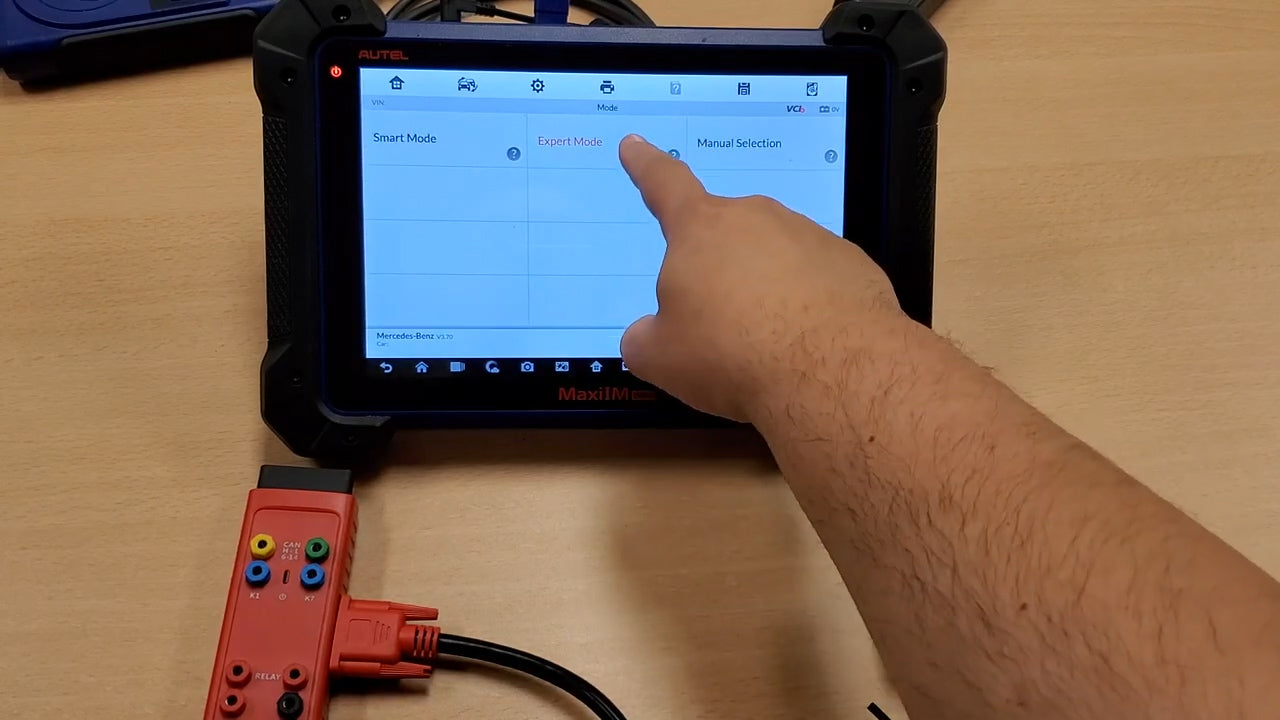

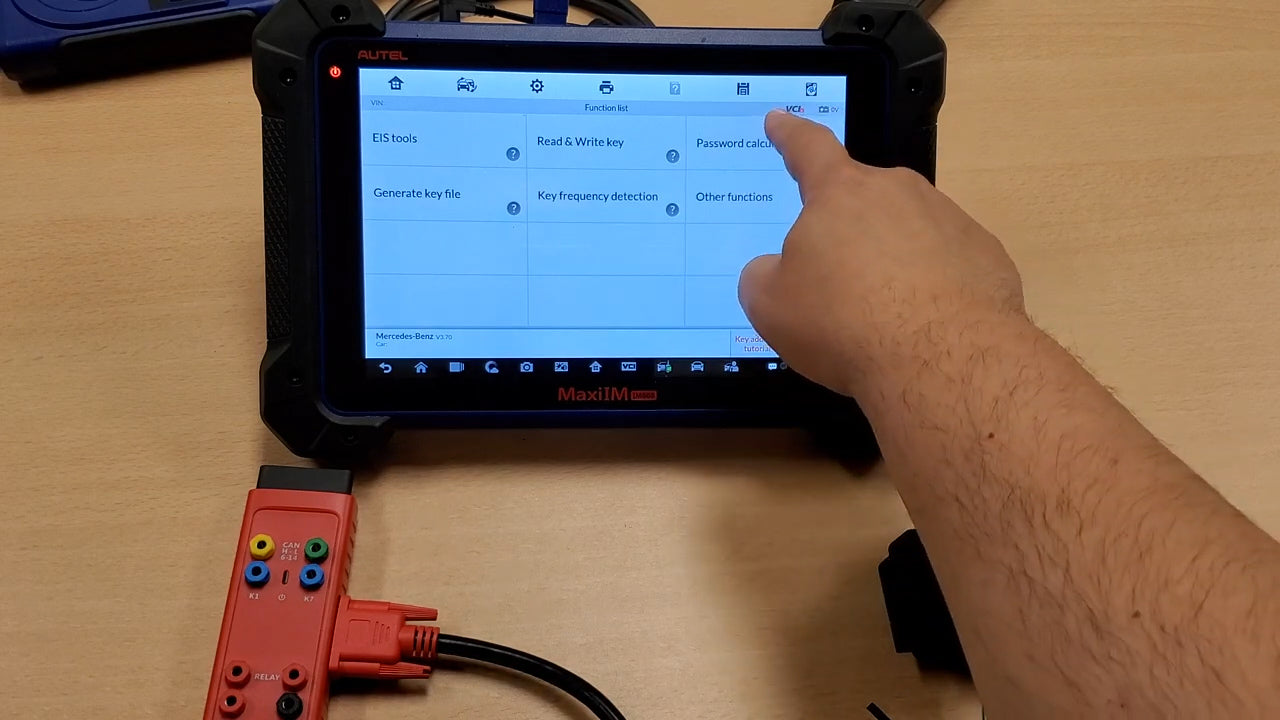

Select Mercedes and then go into expert mode from here go to password calculation.

 Tips: How to Use the G-Box for Mercedes Tips: How to Use the G-Box for Mercedes

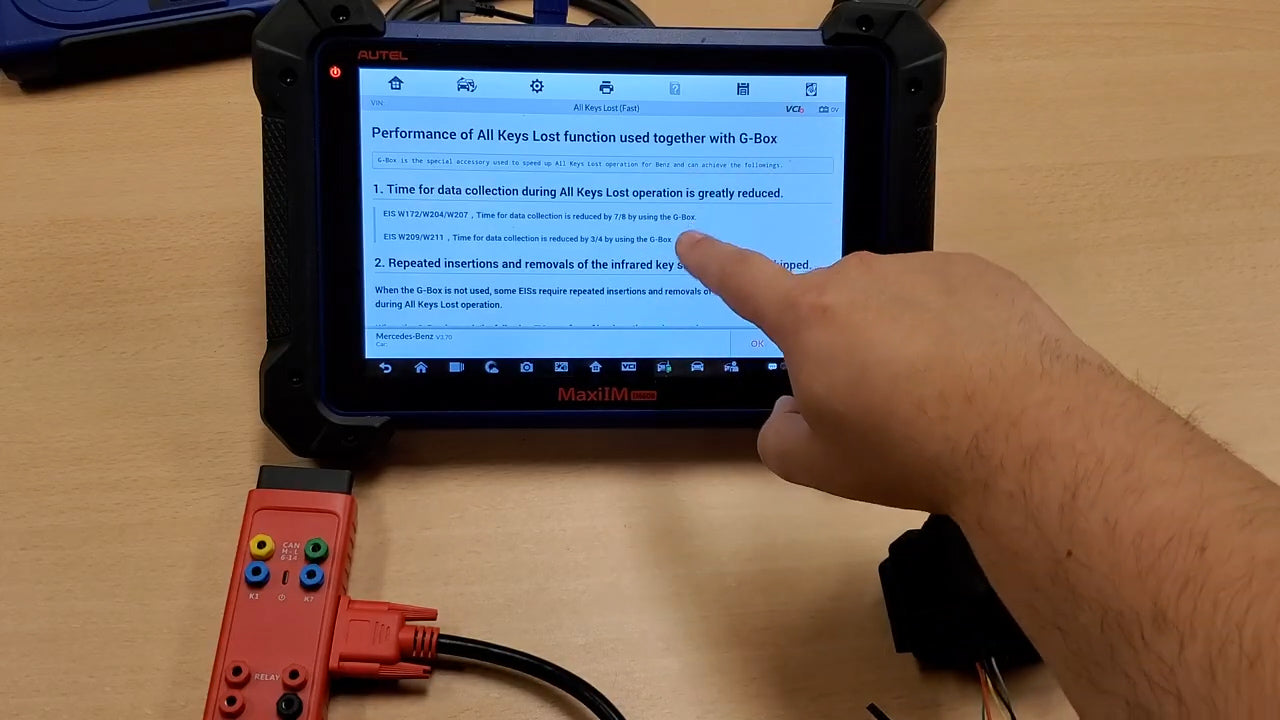

The beauty part about the g-box 2.it does the password calculation even faster
so what we're gonna do is we're gonna select all keys lost fast.

Tips: How to Use the G-Box for Mercedes

This is some diagrams or explanations on each of the EISs,so just hit OK and here you just select on bench.

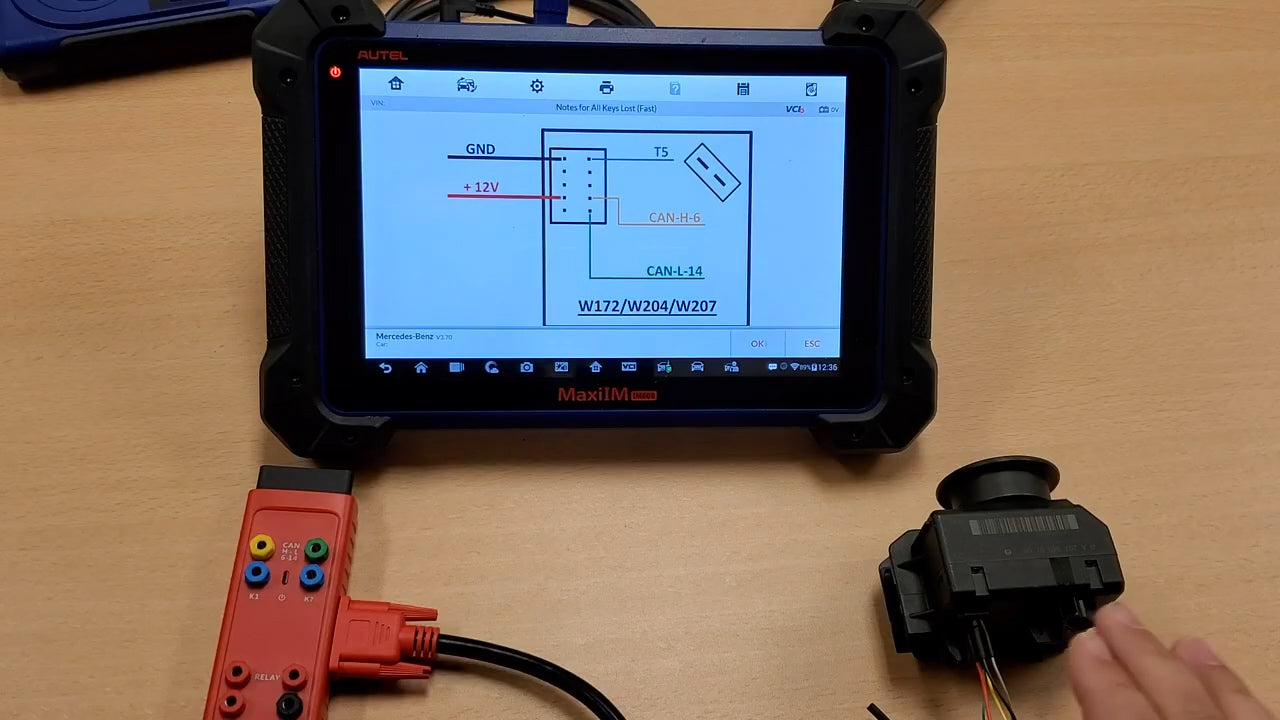

Tips: How to Use the G-Box for Mercedes Tips: How to Use the G-Box for Mercedes Then go ahead and select the is you're working with today, the beauty part about the Autel IMMO key programming tool IM608, it gives you the diagram on how to select it for quickness.
Tips: How to Use the G-Box for Mercedes We went ahead and did it already so we actually connected all the wires together.
Tips: How to Use the G-Box for Mercedes

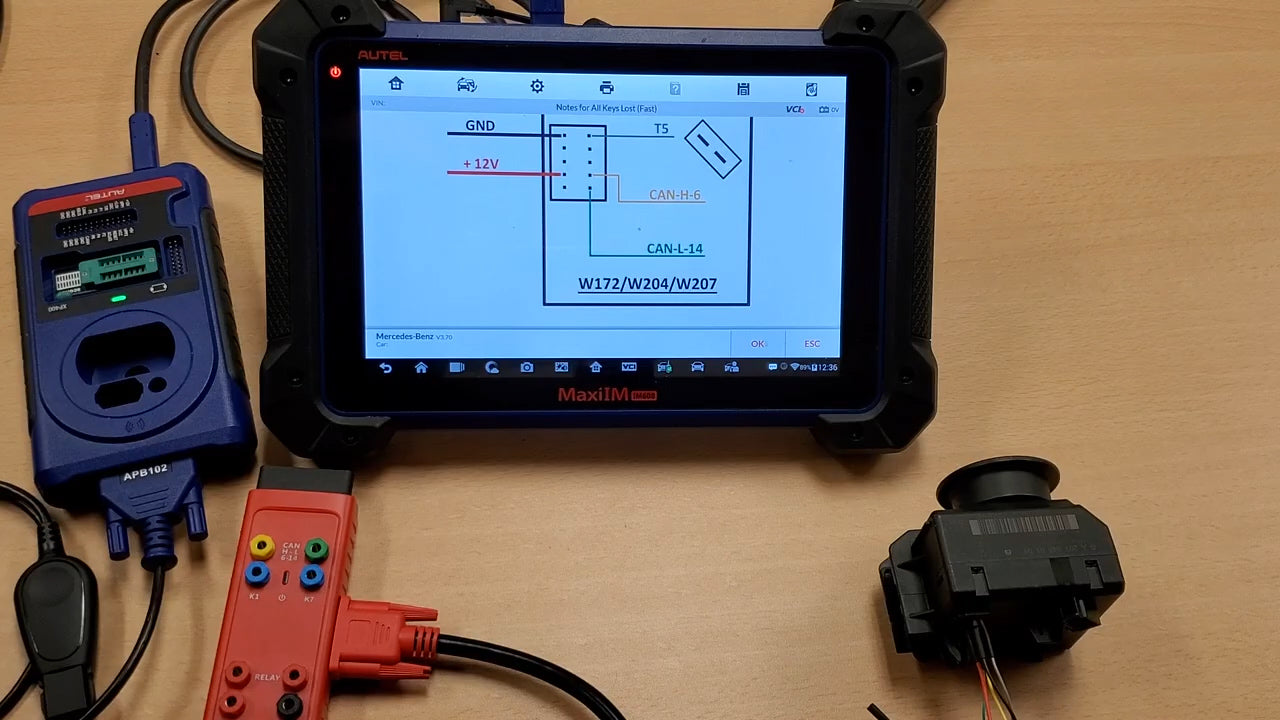

Please note that each Mercedes is different, that's why it's a W-2 or 7e and make sure you follow the corresponding scematic for the E is once you set it up on the bench.

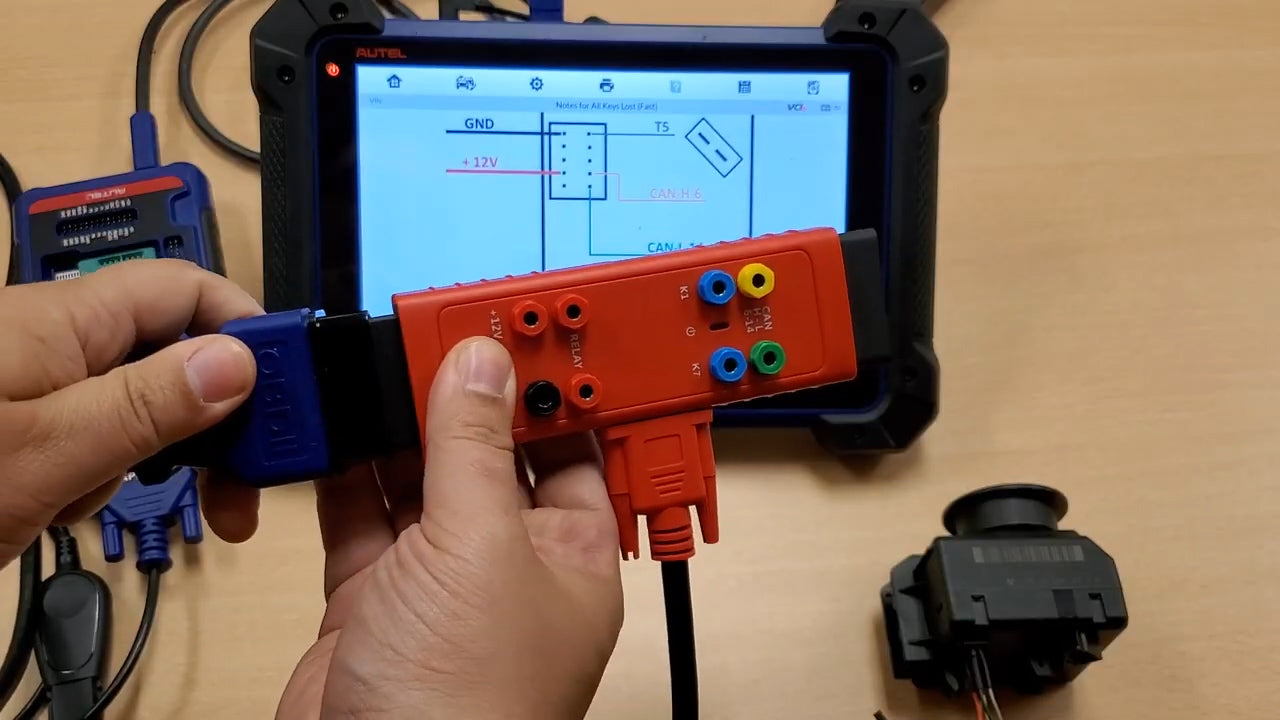

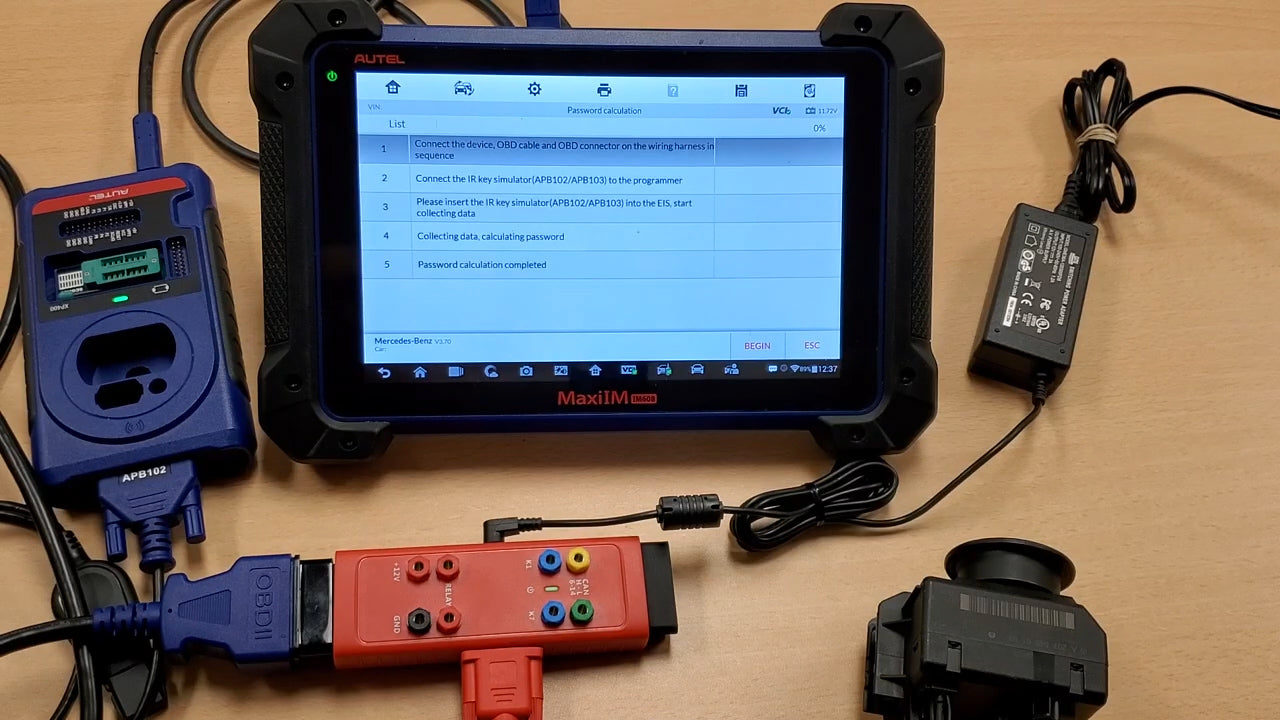

Go ahead and connect your XP400 with the APB102 to the tablet also you want to connect your J2534 to one end of the GBOX in order to get power.

Tips: How to Use the G-Box for Mercedes We're gonna have to borrow the AC adapter from the MaxiIM IM608, please allow a few moments for your tool to connect to the gbox once, once you hear that beep, you're about ready to go.

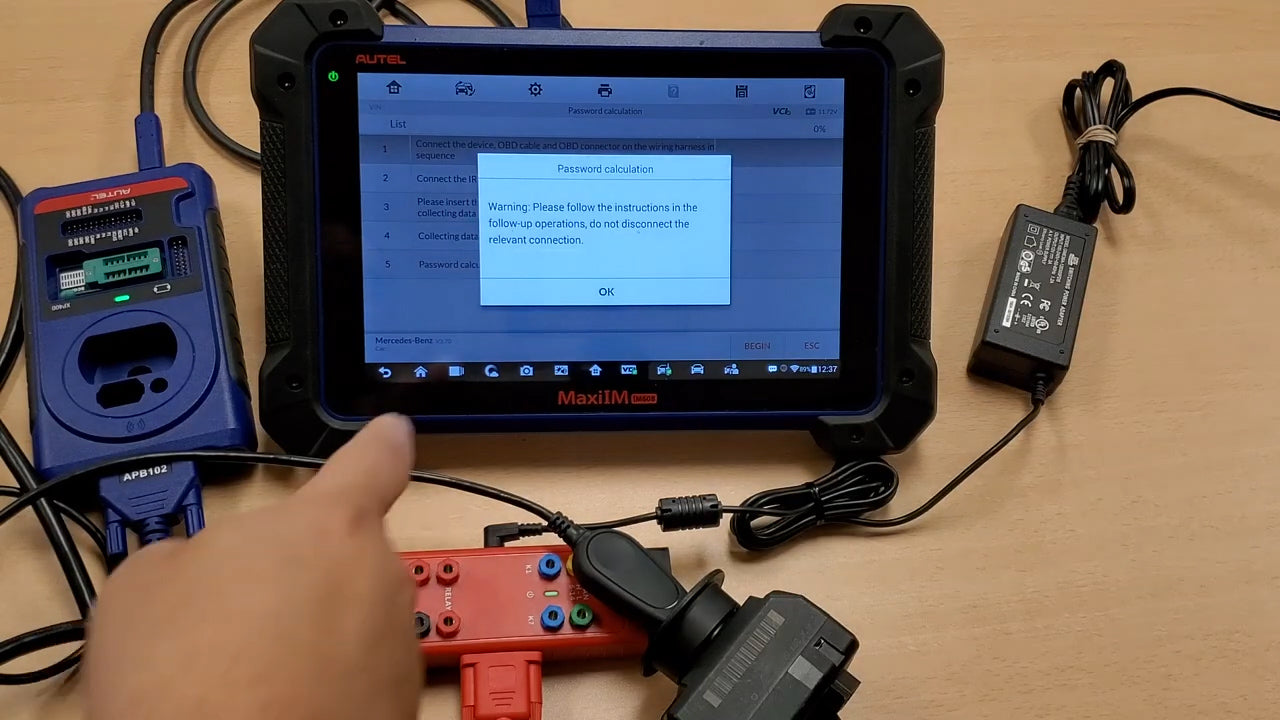

Tips: How to Use the G-Box for Mercedes Tips: How to Use the G-Box for Mercedes Please follow the directions exactly the way,there are Autel IM608 prescribes them make sure you conncet the APB102 directly into yarn then hip again.
Tips: How to Use the G-Box for Mercedes

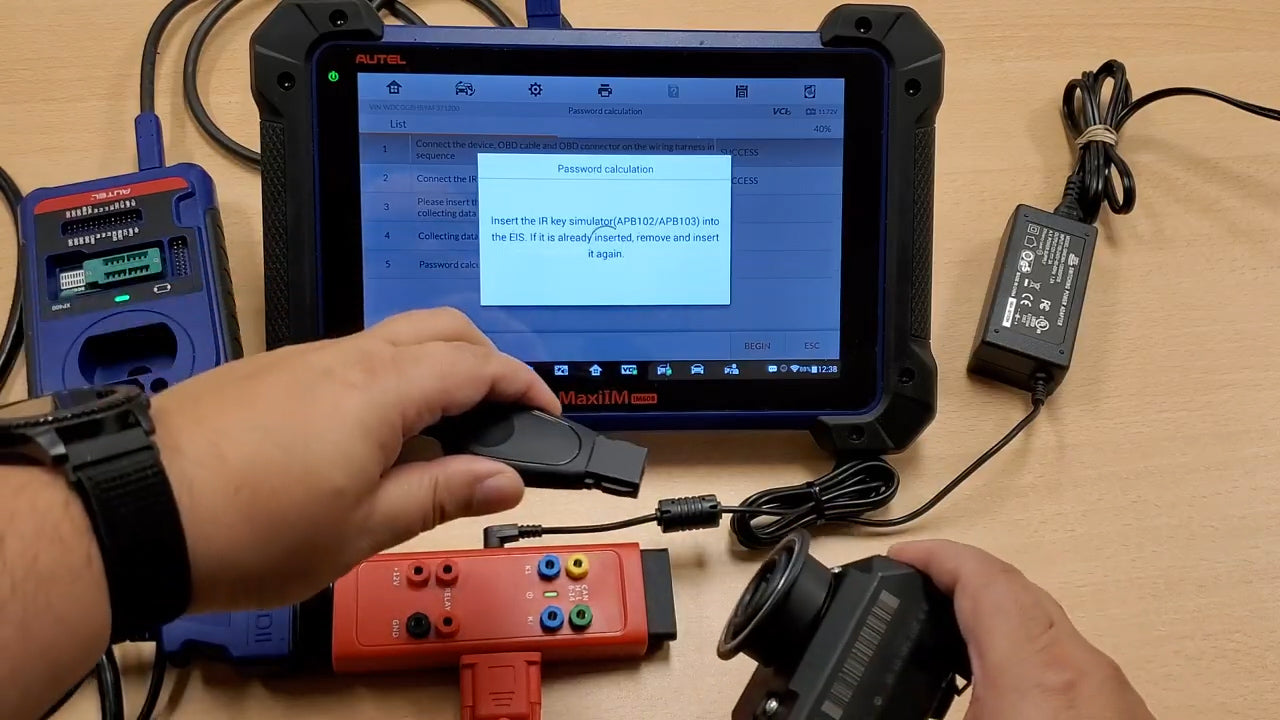

Currently it's looking at the EISs as well as the actual gbox, now it's asking us to take the EPP102 out the simulator and put it right back in once you've done this.

Tips: How to Use the G-Box for Mercedes

You'll see this screen up here and just let it sit there and calculate the password for the W-207, it can take between 10 and 50 minutes, other ones may take shorter but we have to allow at some time while this is happening.

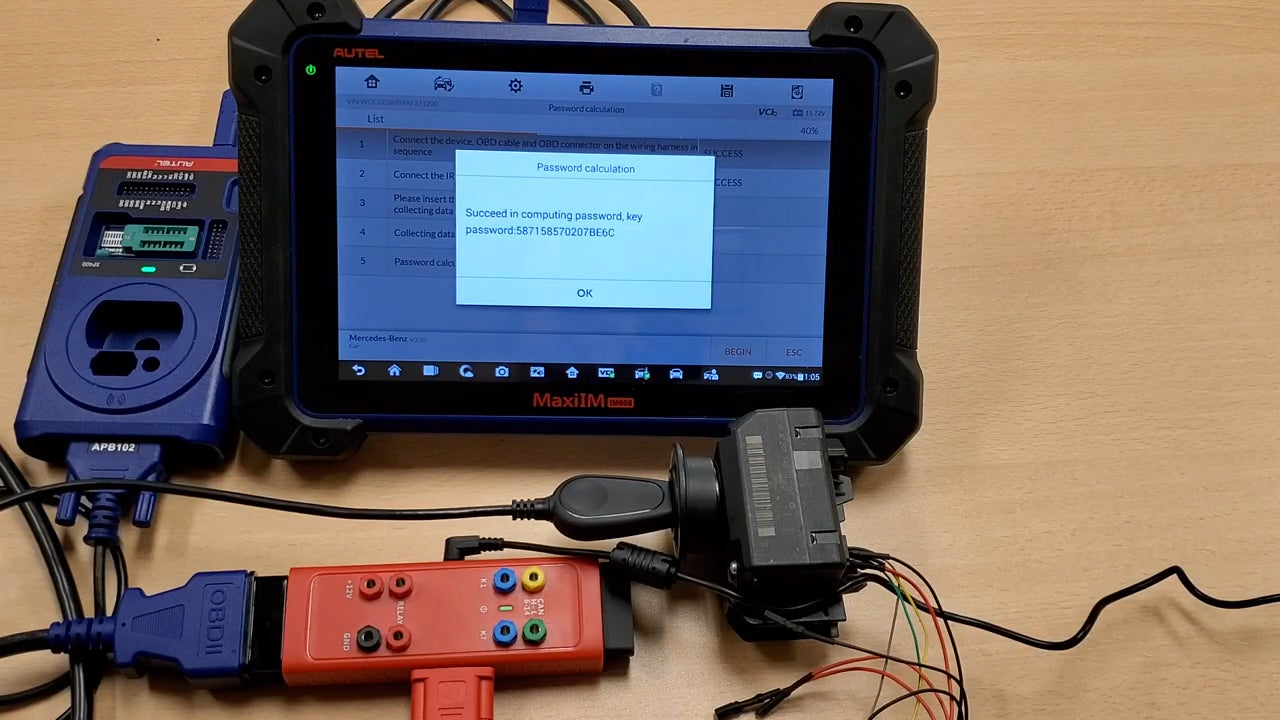

Just go ahead and walk away and do something else with your car, Okay, our password seems to be calculated.so the next thing we're gonna go ahead and hit OK, and then OK again.

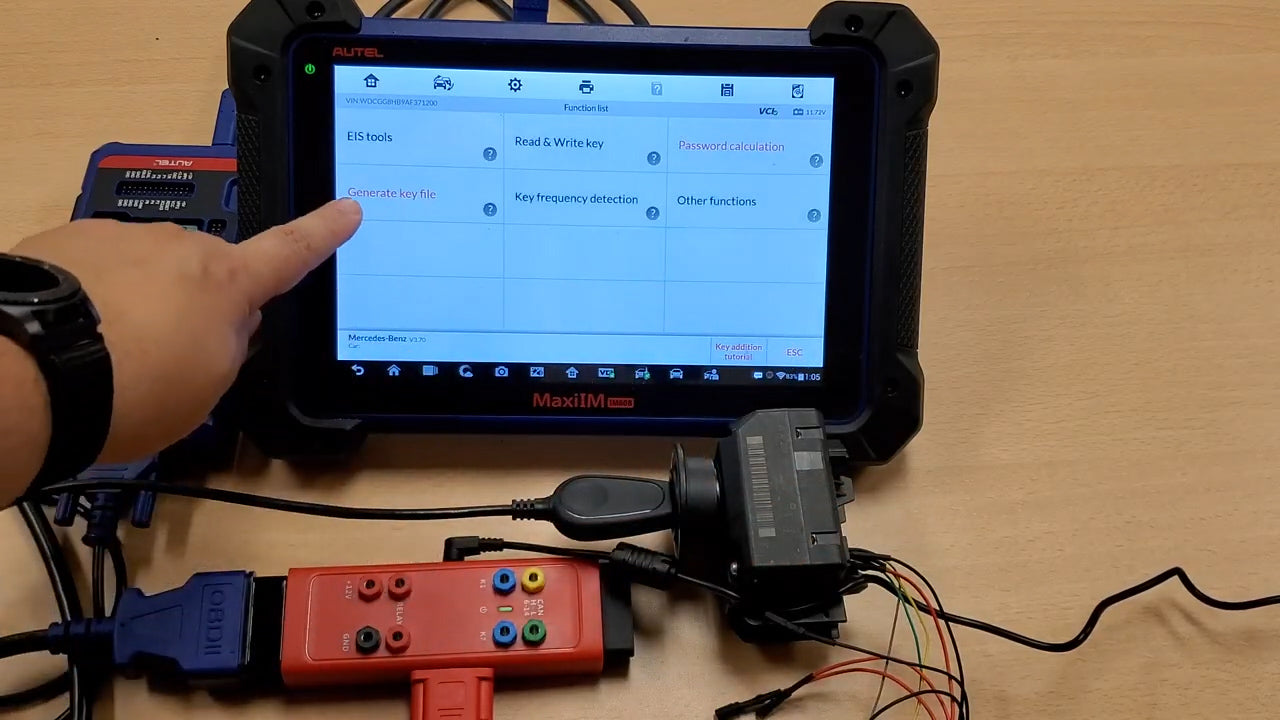

Tips: How to Use the G-Box for Mercedes Go back to the main screen, and select generate key files, hit OK.

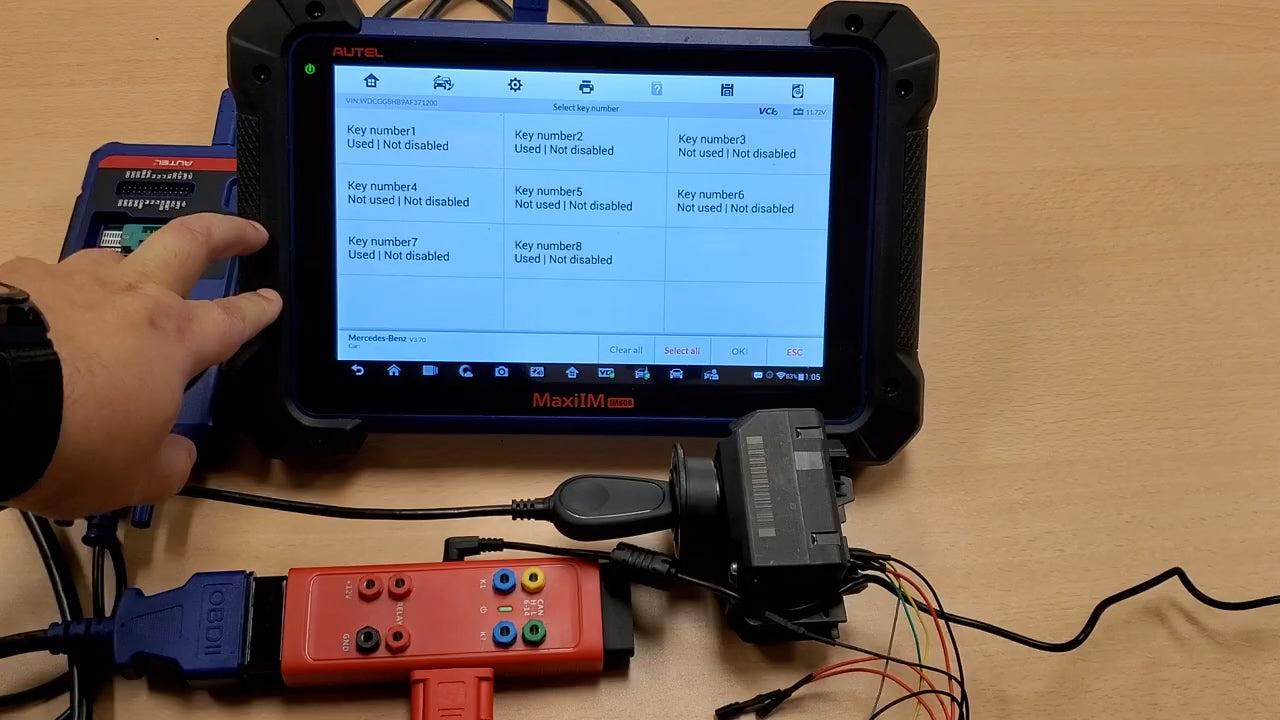

Tips: How to Use the G-Box for Mercedes Make sure you always use the last slots in order to program your key in this particular case our last slot to program the key is number 6 but you may be a little different.

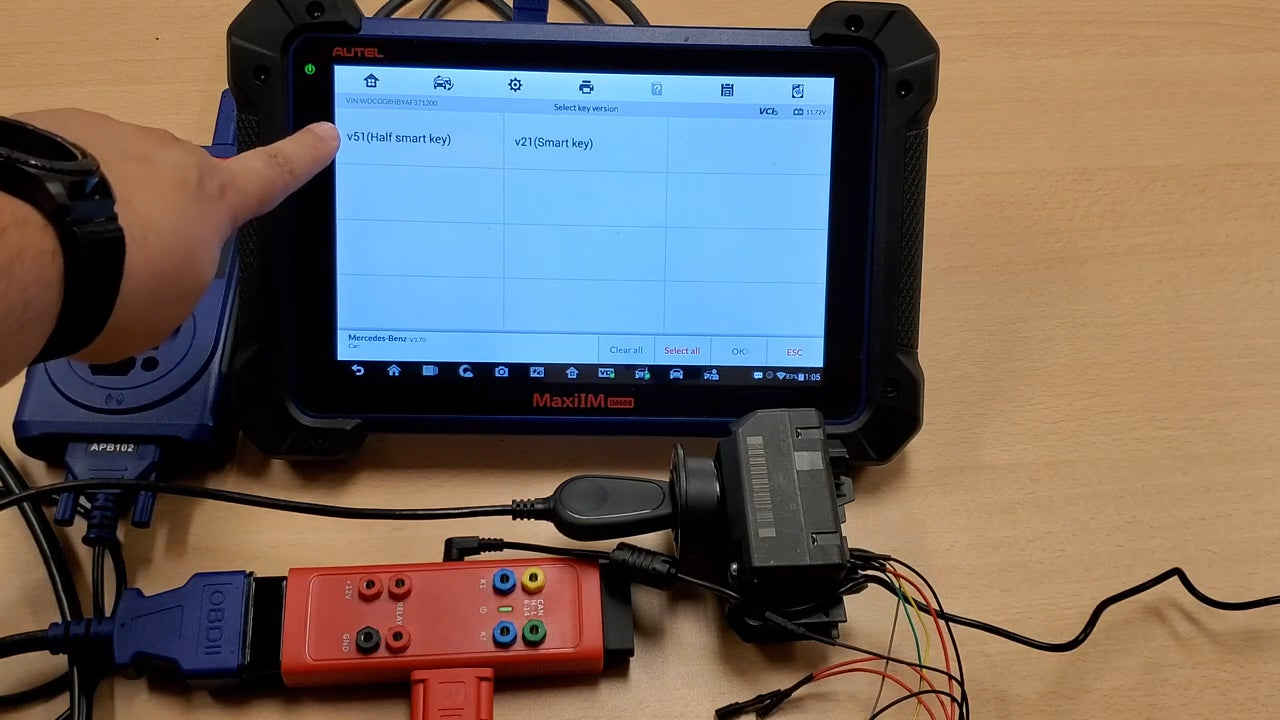

after that,hit OK for our particular key it's gonna be the V51 half smart key and then hit OK.
Tips: How to Use the G-Box for Mercedes Tips: How to Use the G-Box for Mercedes Tips: How to Use the G-Box for Mercedes

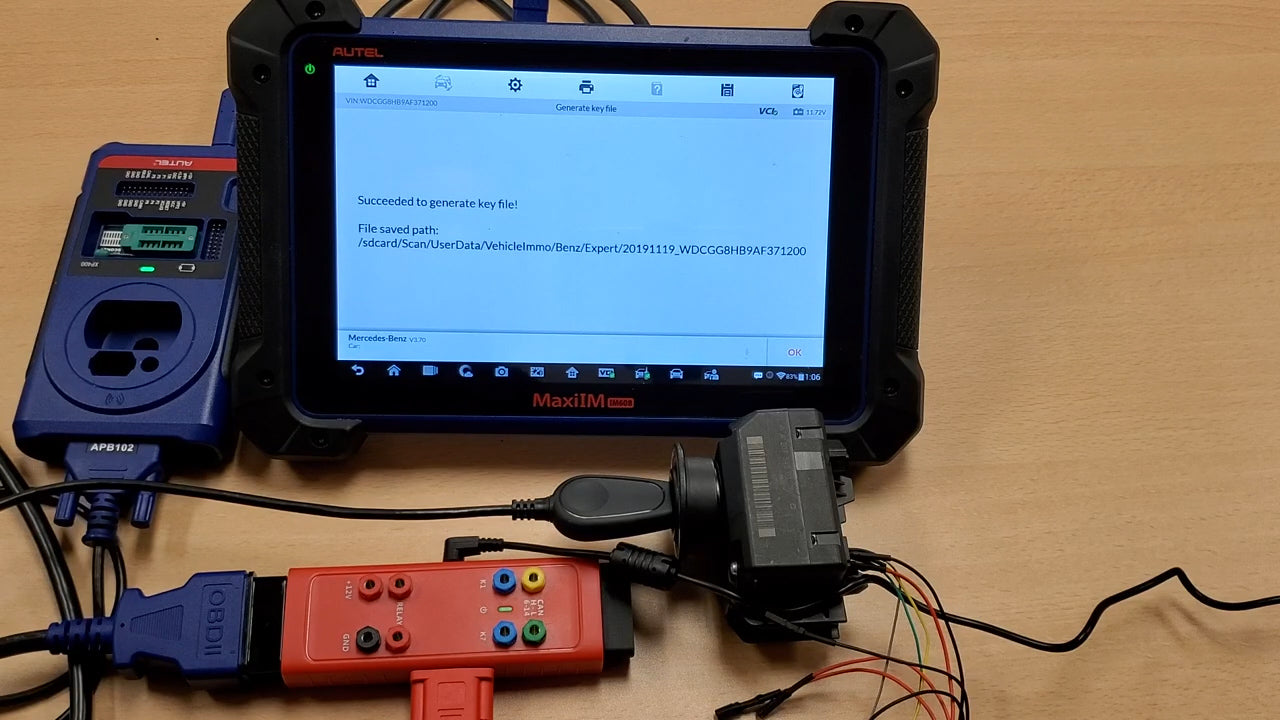

Considering the key file, so now we're all set the next thing ,we're gonna have to do is write our key.

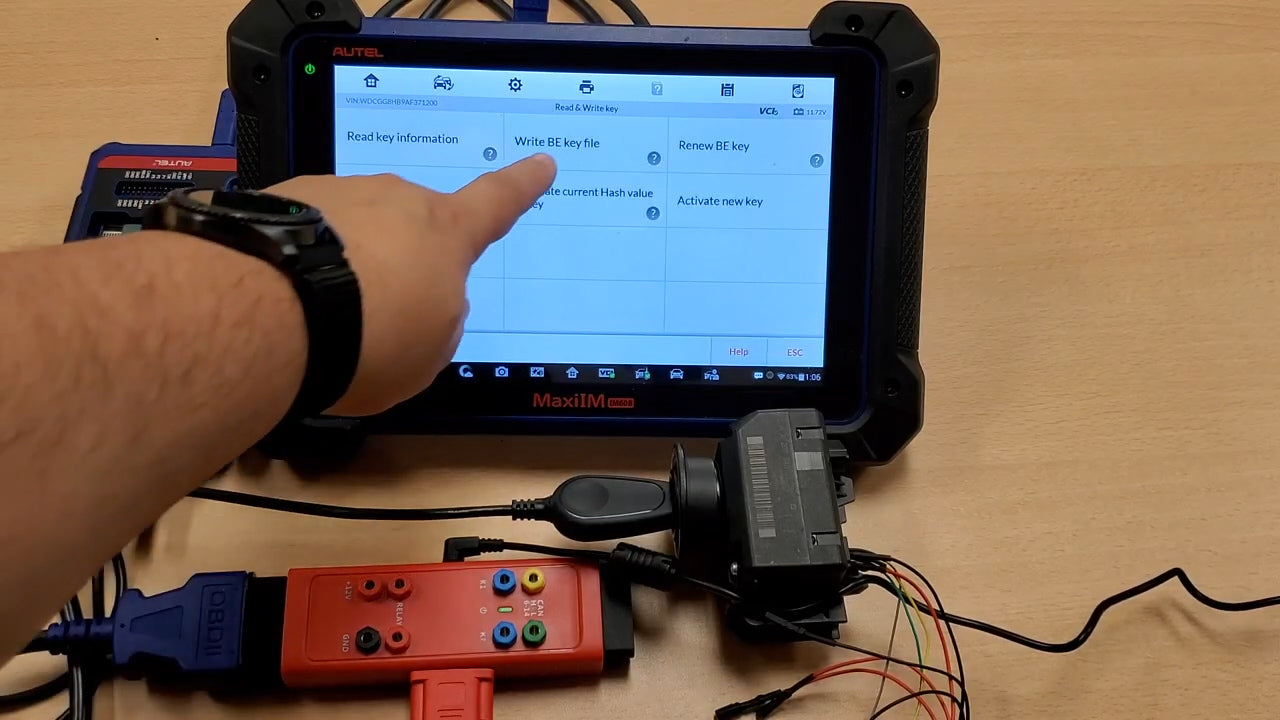

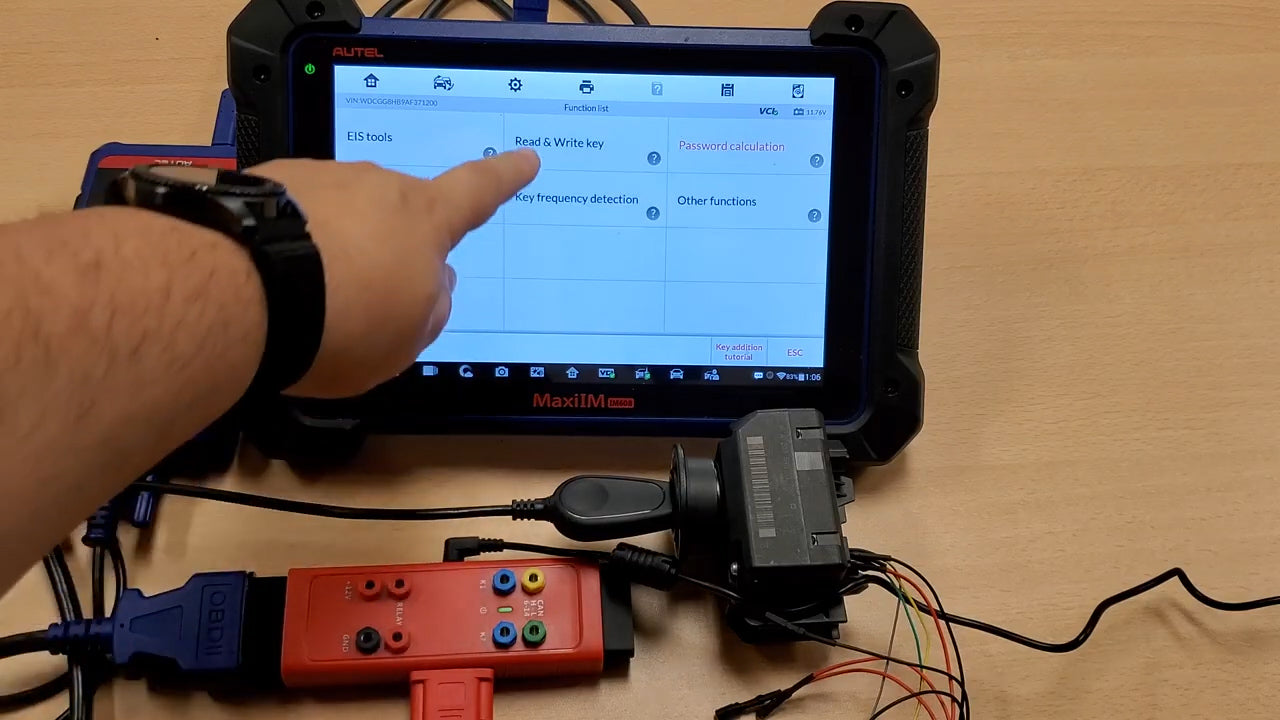

So i'm gonna put this into the XP400, go back to the main screen, select read and write key do IR and write BE key file.

Tips: How to Use the G-Box for Mercedes Tips: How to Use the G-Box for Mercedes Tips: How to Use the G-Box for Mercedes

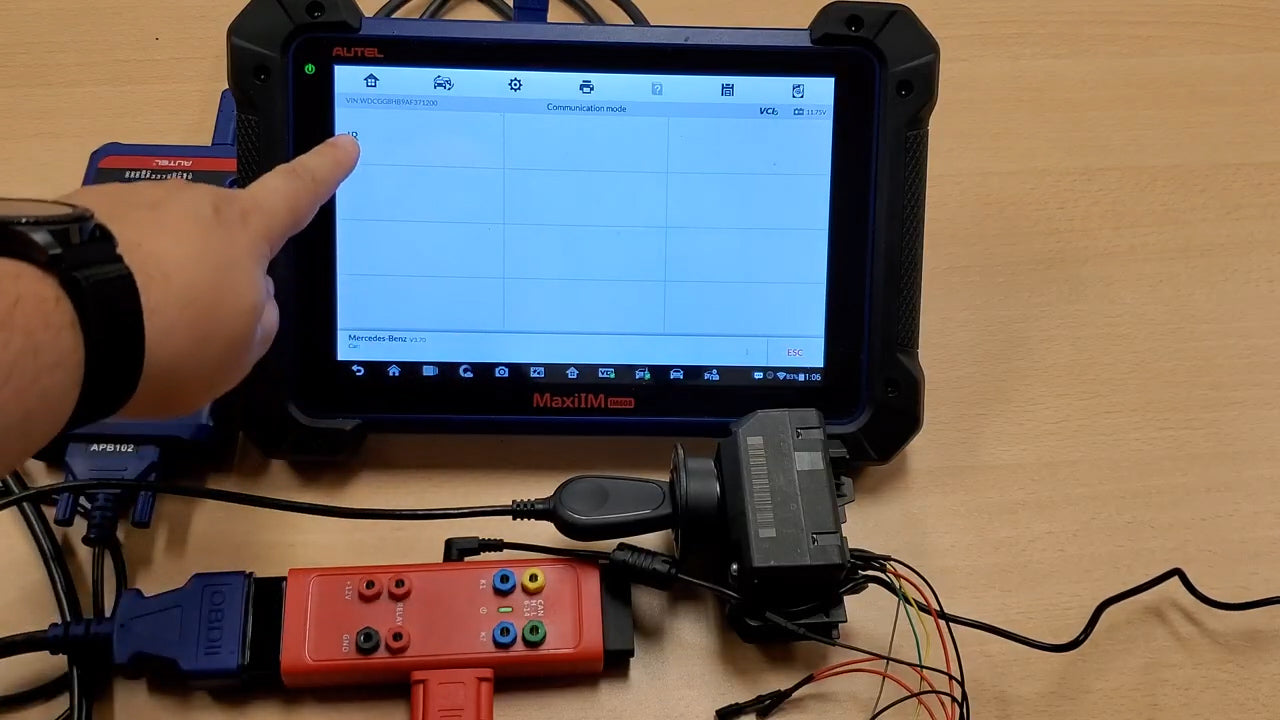

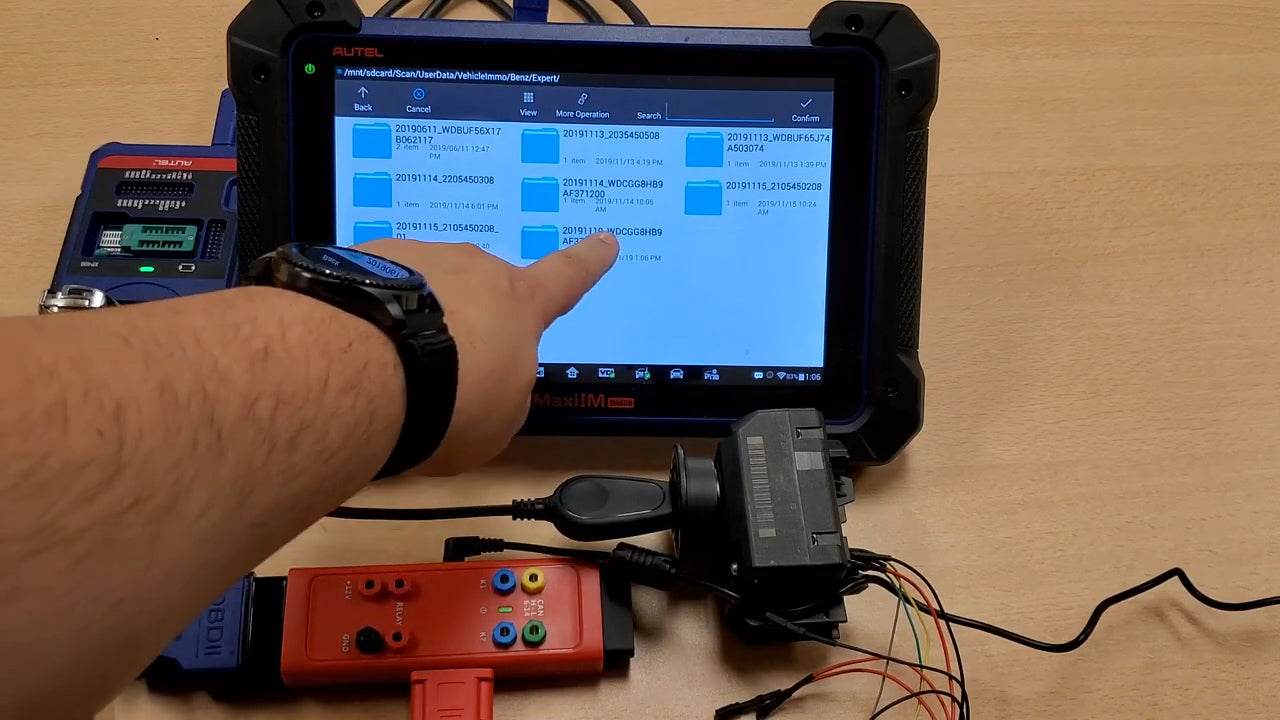

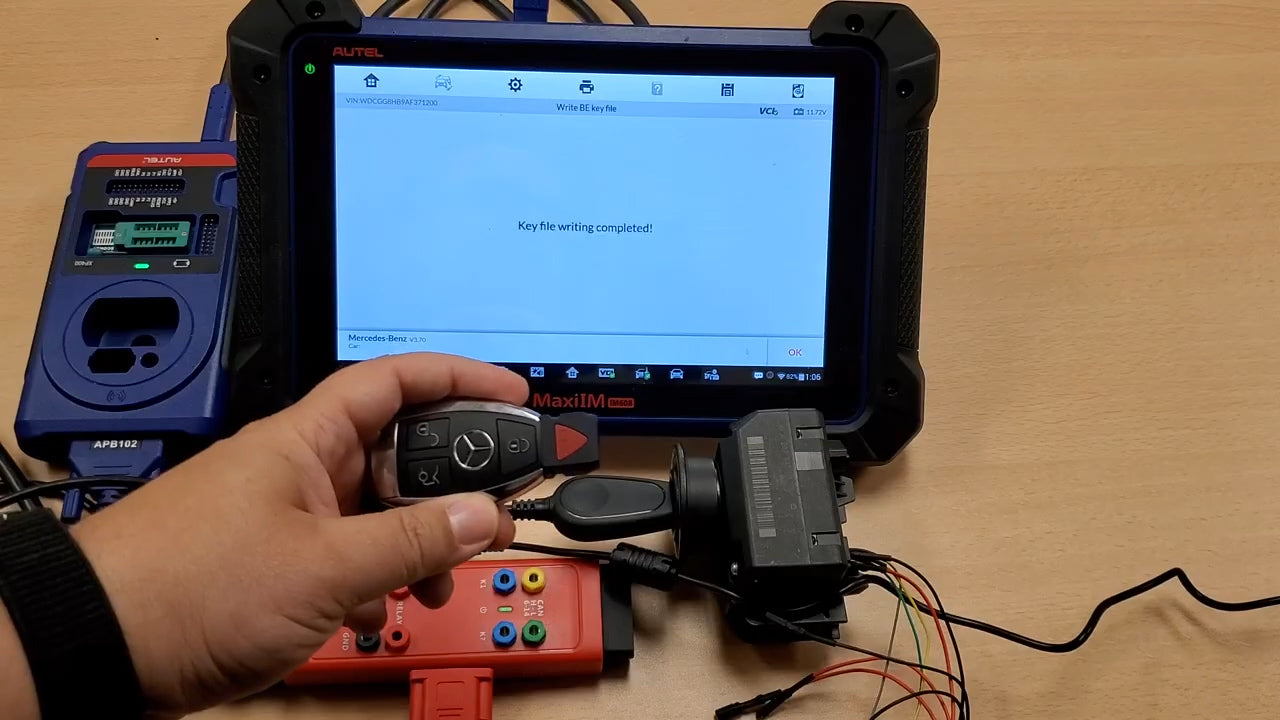

The next you want to do is select where you made the key file from and that's the key programming tool IM608 will send that information over to the XP400 and our key file is complete, we just made a new key for this Mercedes Benz towards this E is.

Tips: How to Use the G-Box for Mercedes Tips: How to Use the G-Box for Mercedes
