How to Update Your VCI(Use the MS908S Pro)

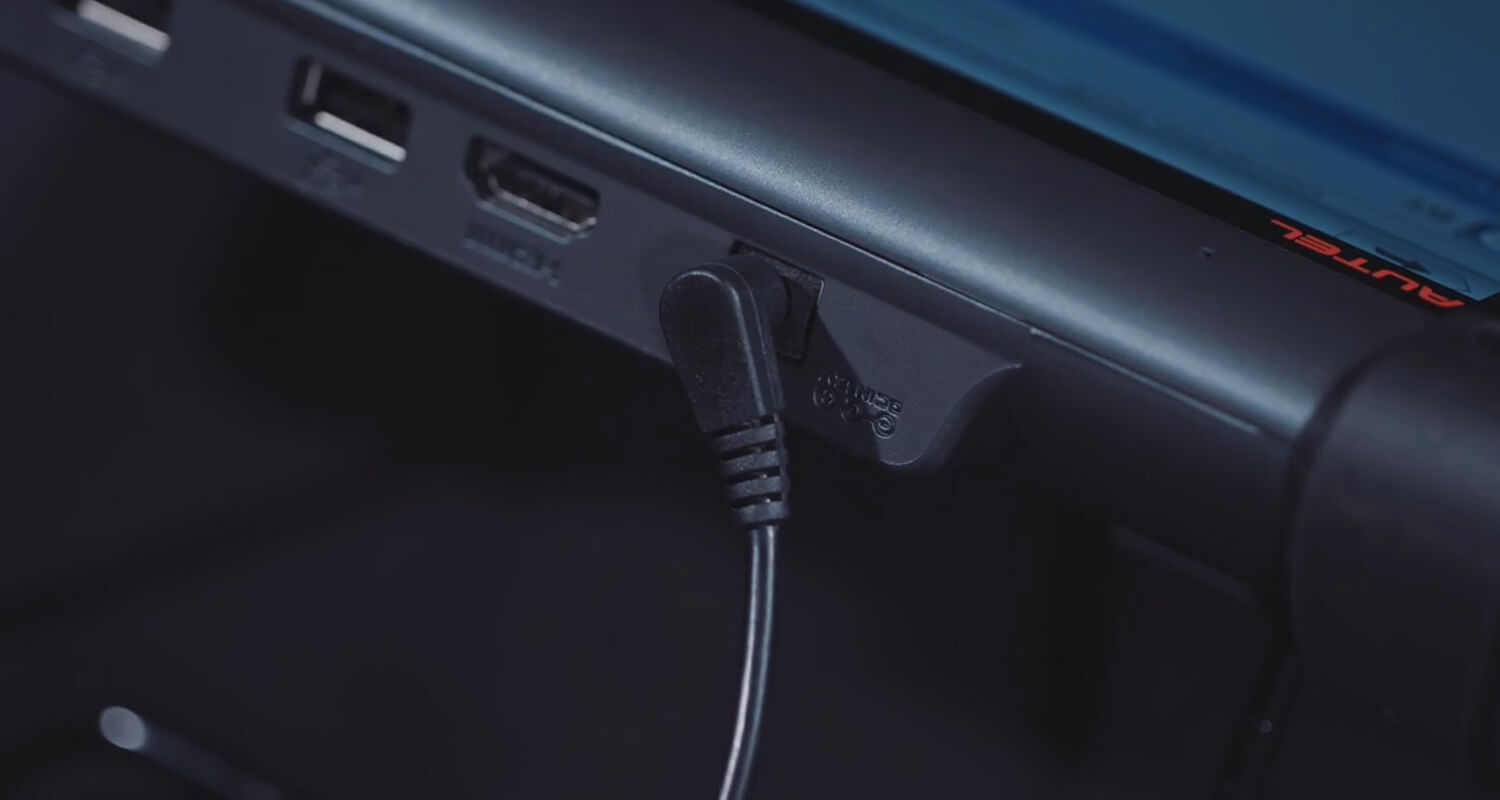

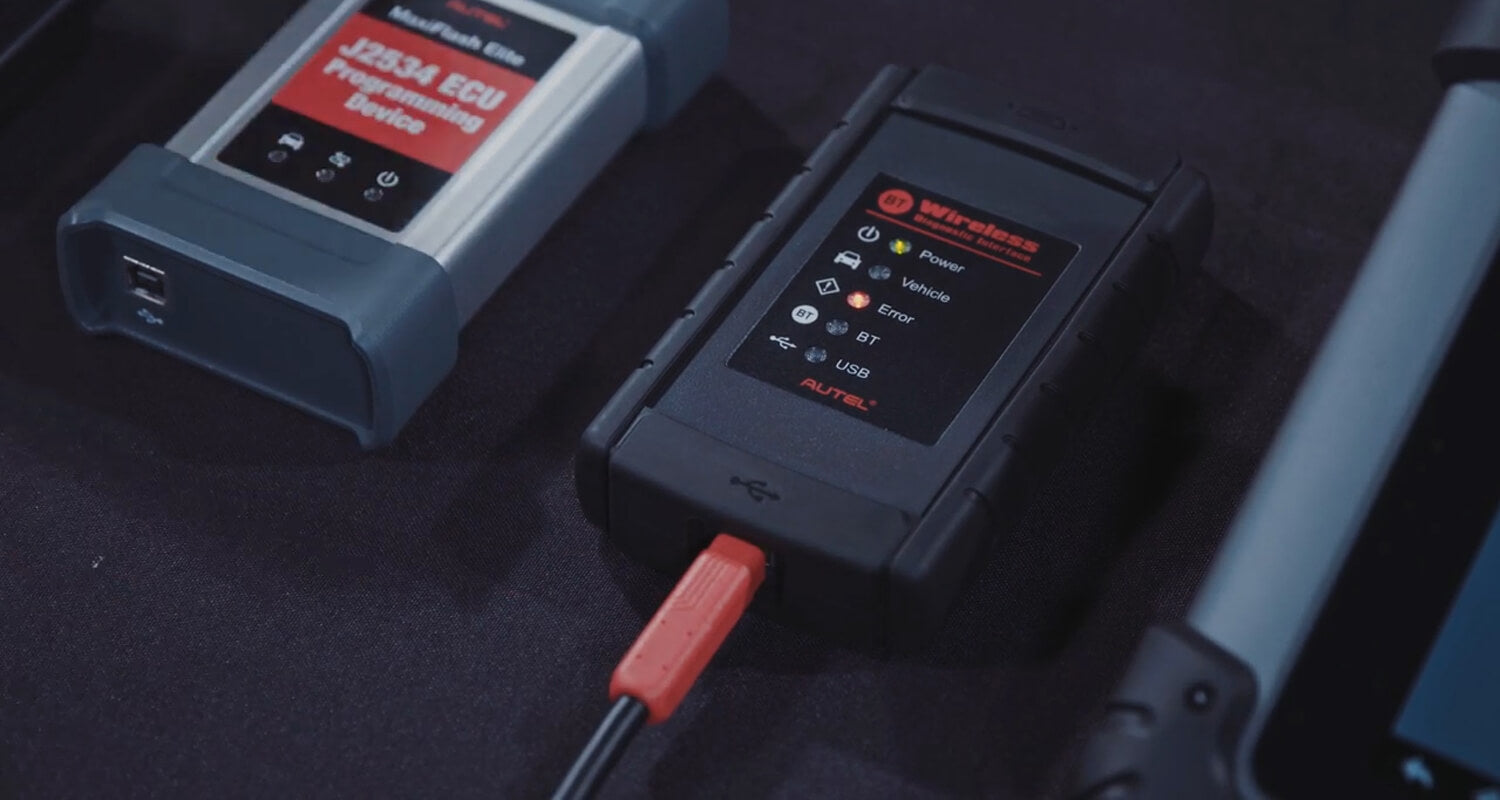

Use the power supply and plug the tablet into an electrical outlet. use the supplied USB cable and connect the VCI with the tablet.

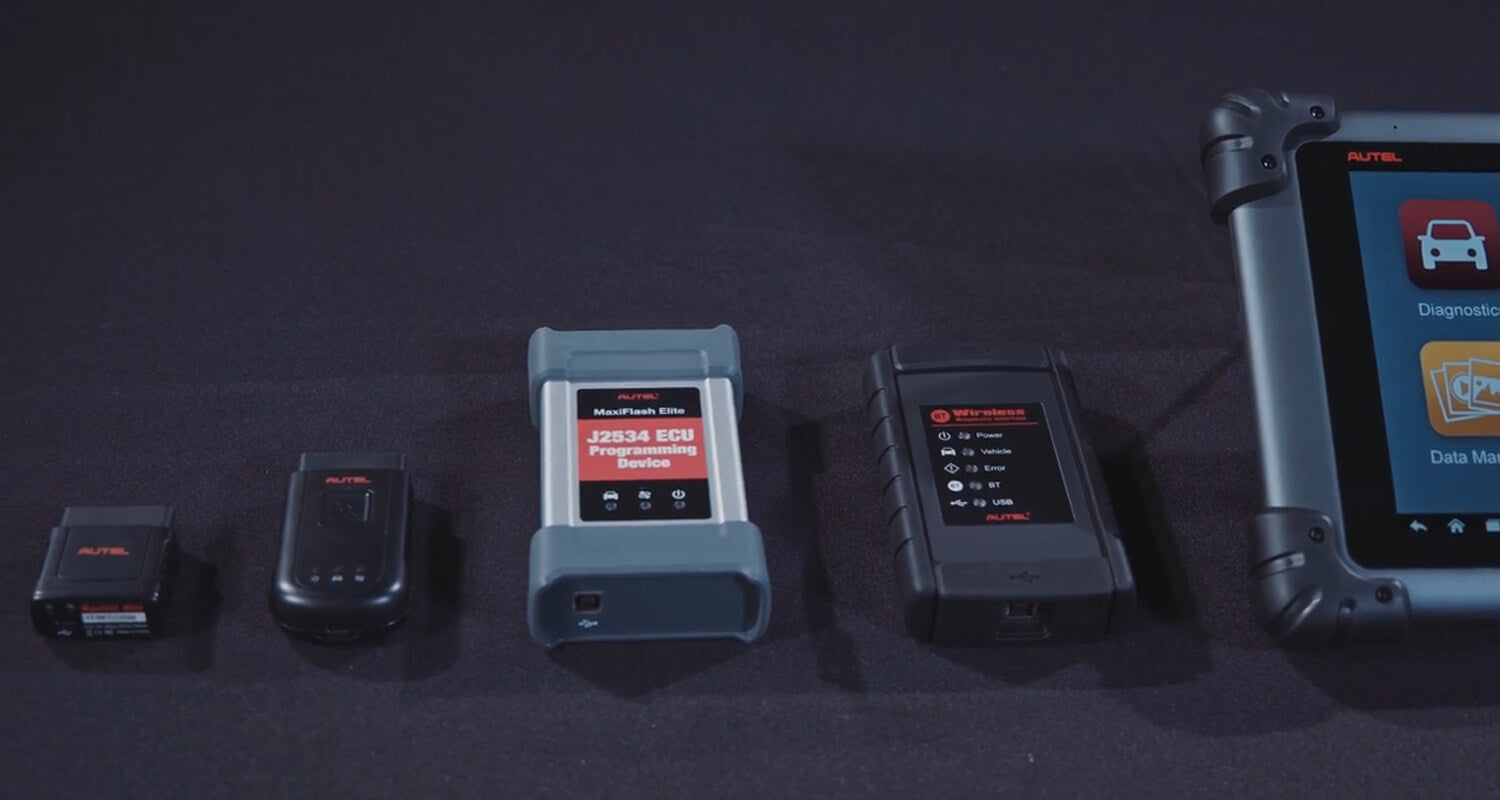

The Bluetooth connectors on the desktop can only be matched with the MK808BT, MS906BT, MS908S Pro and MK908 from the left.

Update VCI Steps

Update VCI Step

Update VCI Step

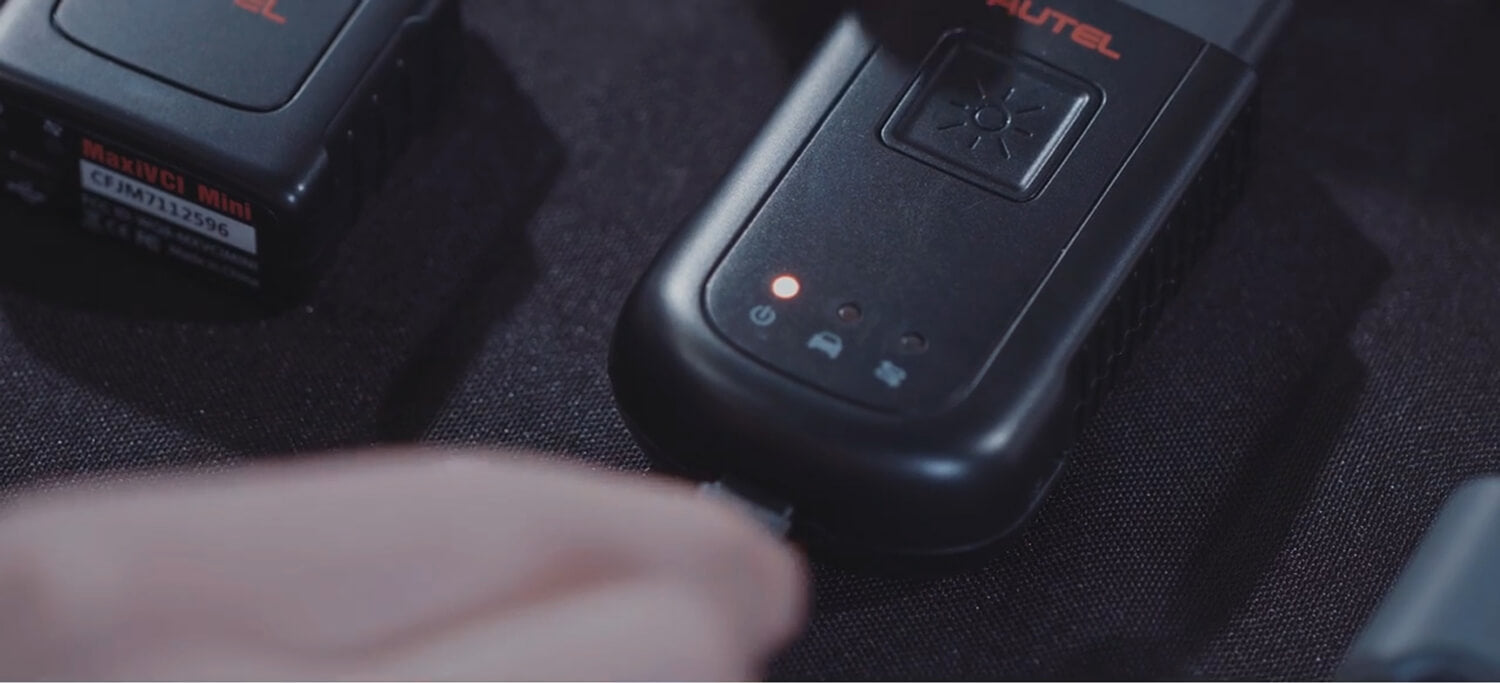

The smaller VCI dongles use a different USB cable than the larger units. The correct cable is included in the tablet case power.

Update VCI Step

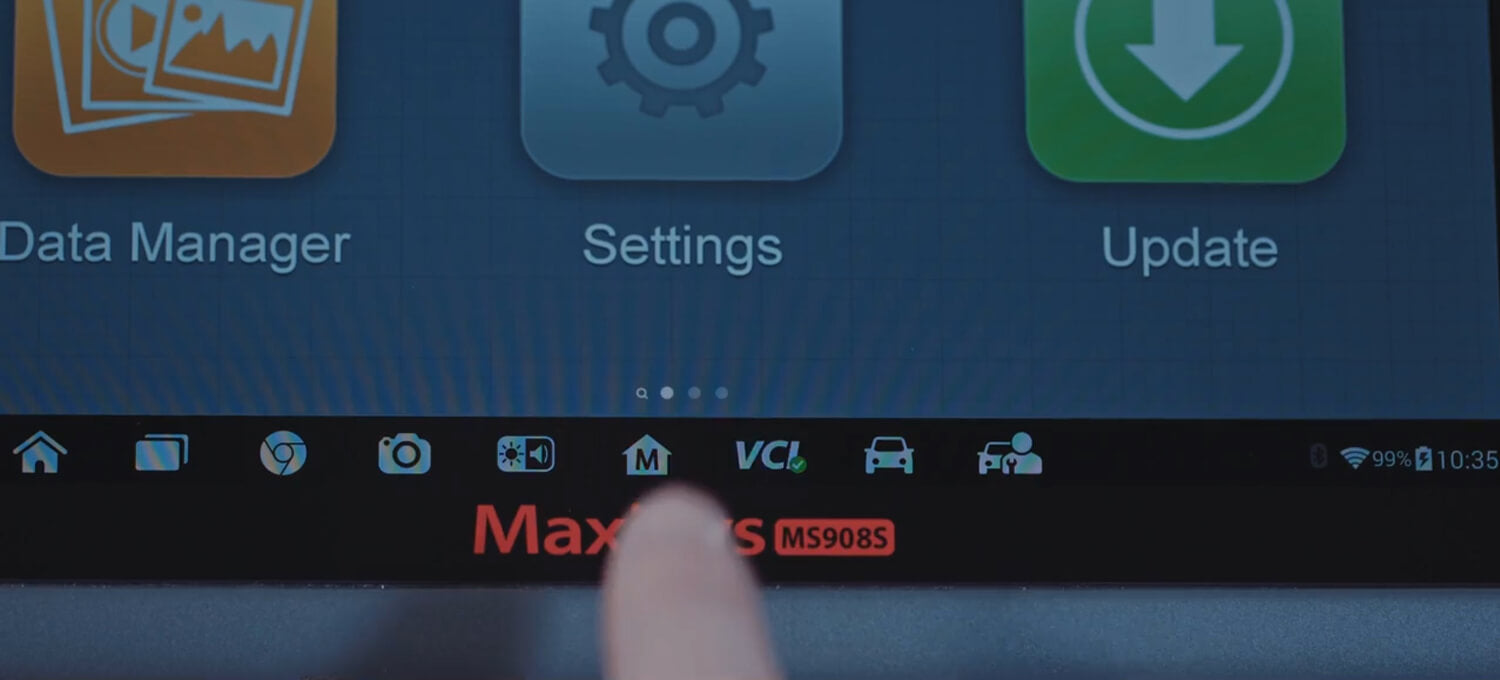

Ensure the tablet is connected to internet via Wi-Fi, tap the VCI icon on the toolbar.

Update VCI Steps

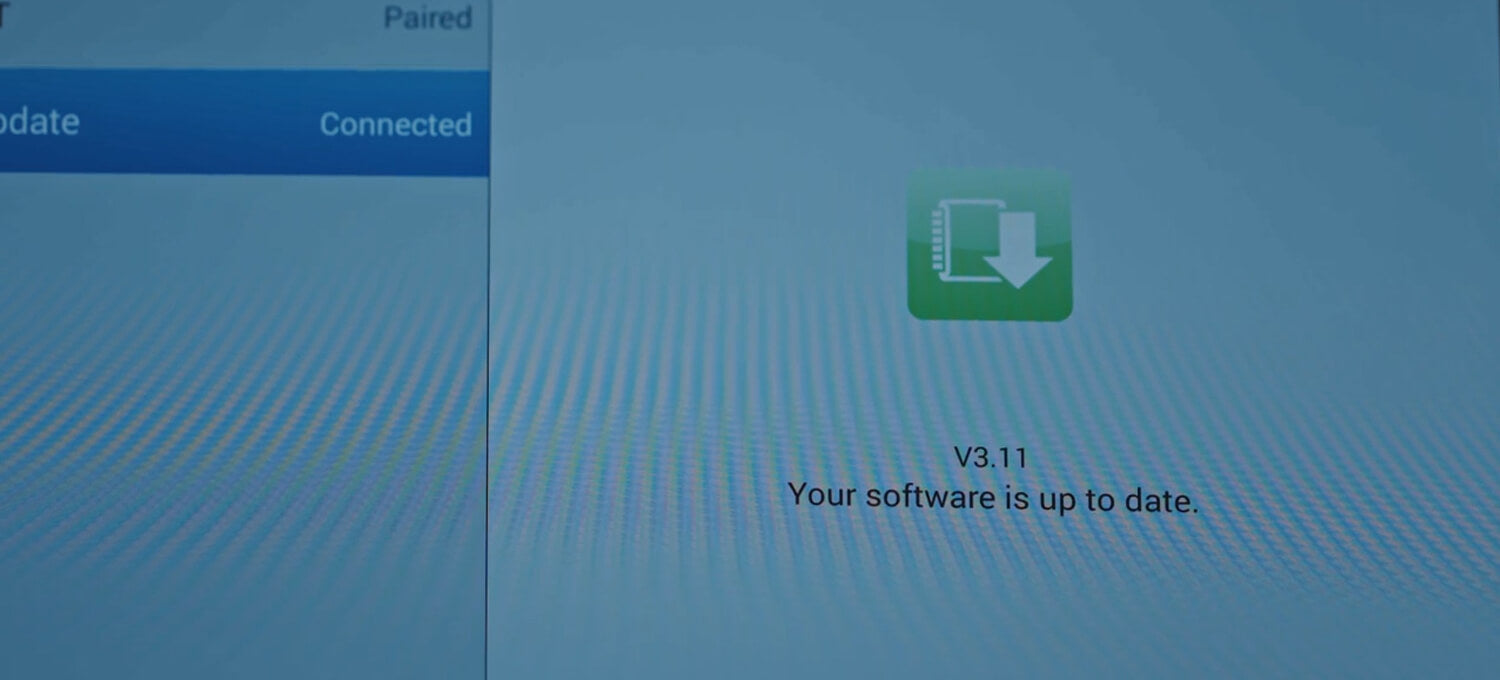

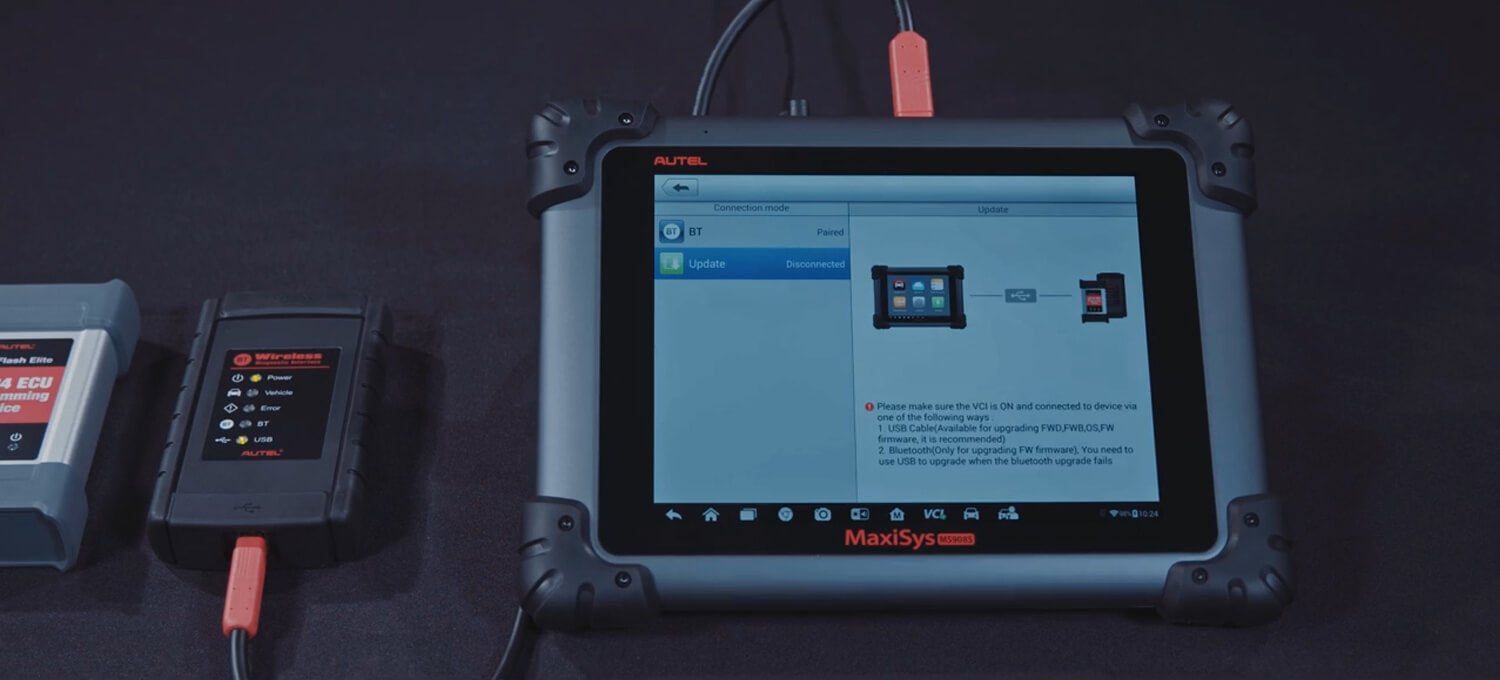

Then select the update button on the screen, a message will display the current VCI firmware version

Update VCI Steps

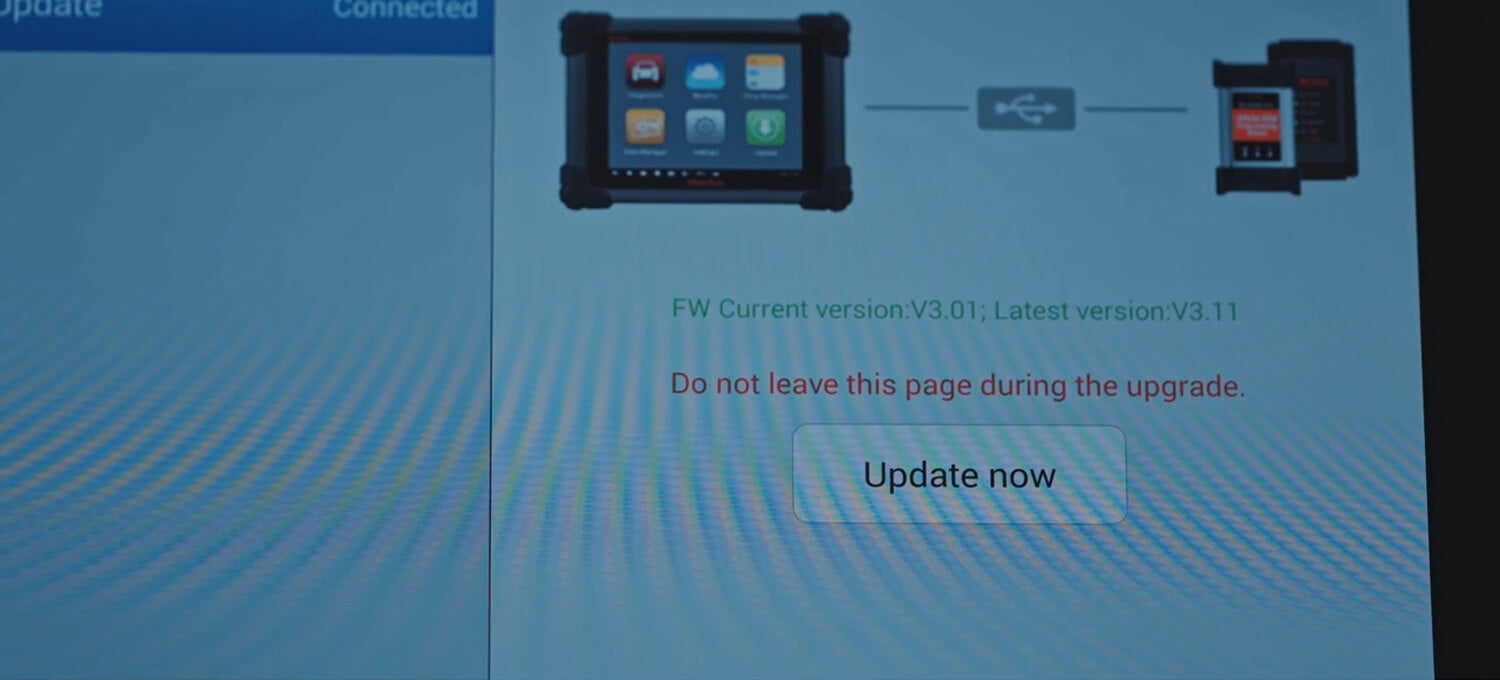

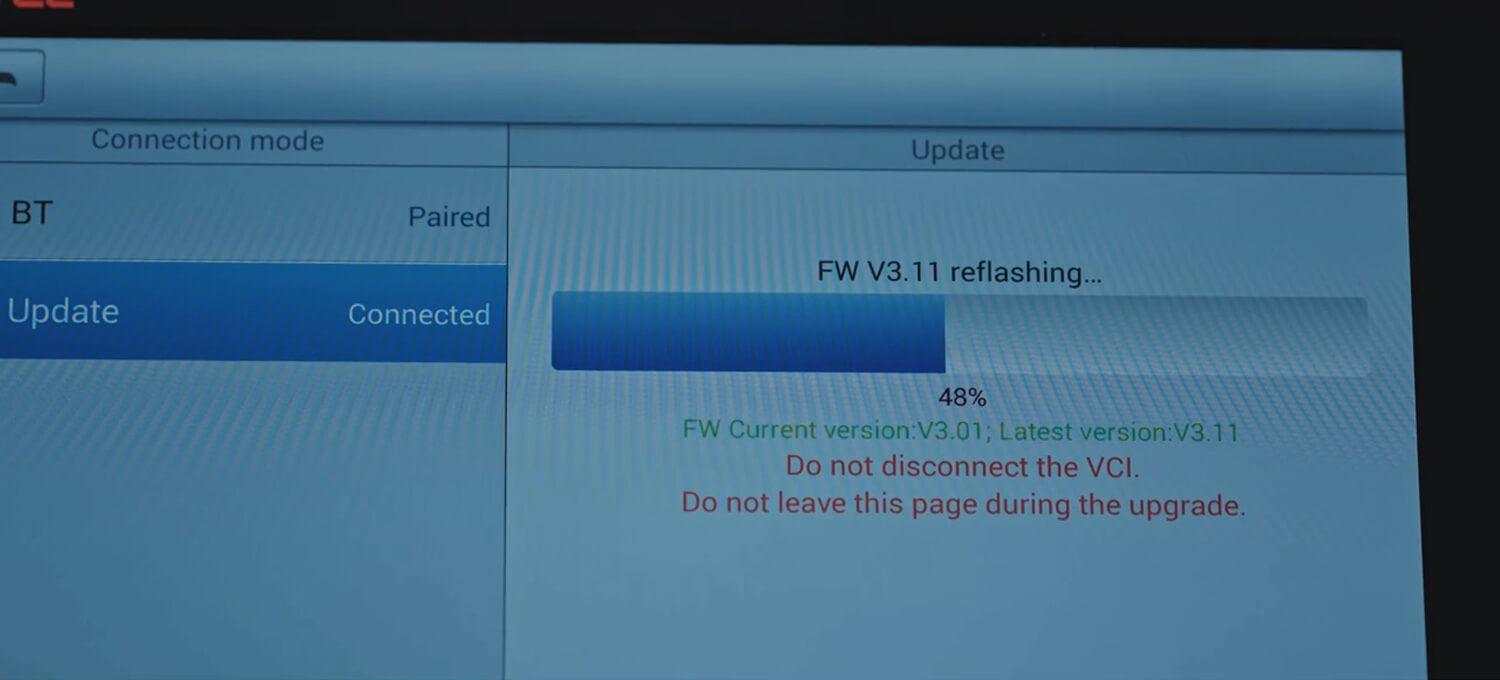

And if an update is available, tap update for the new version to install, a progress bar will display as the update is installed.

Update VCI Steps

Update VCI Steps

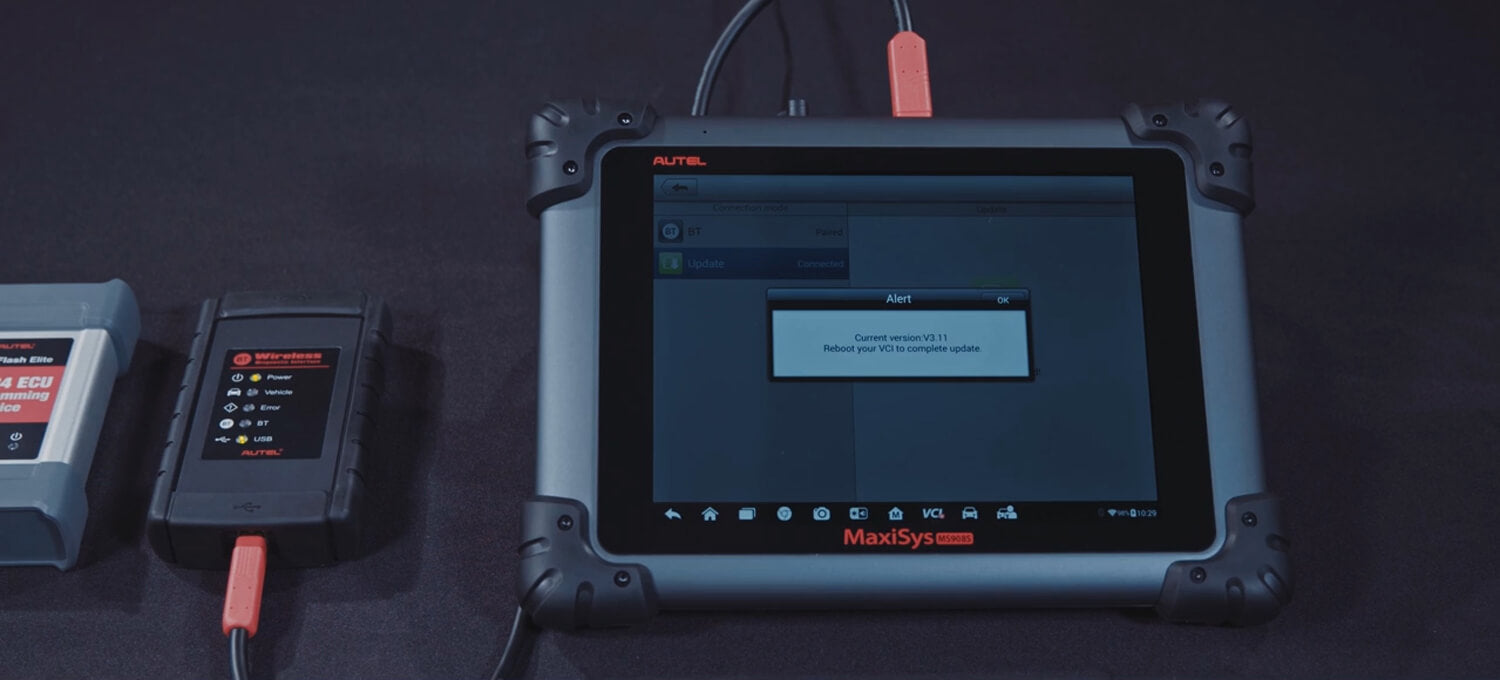

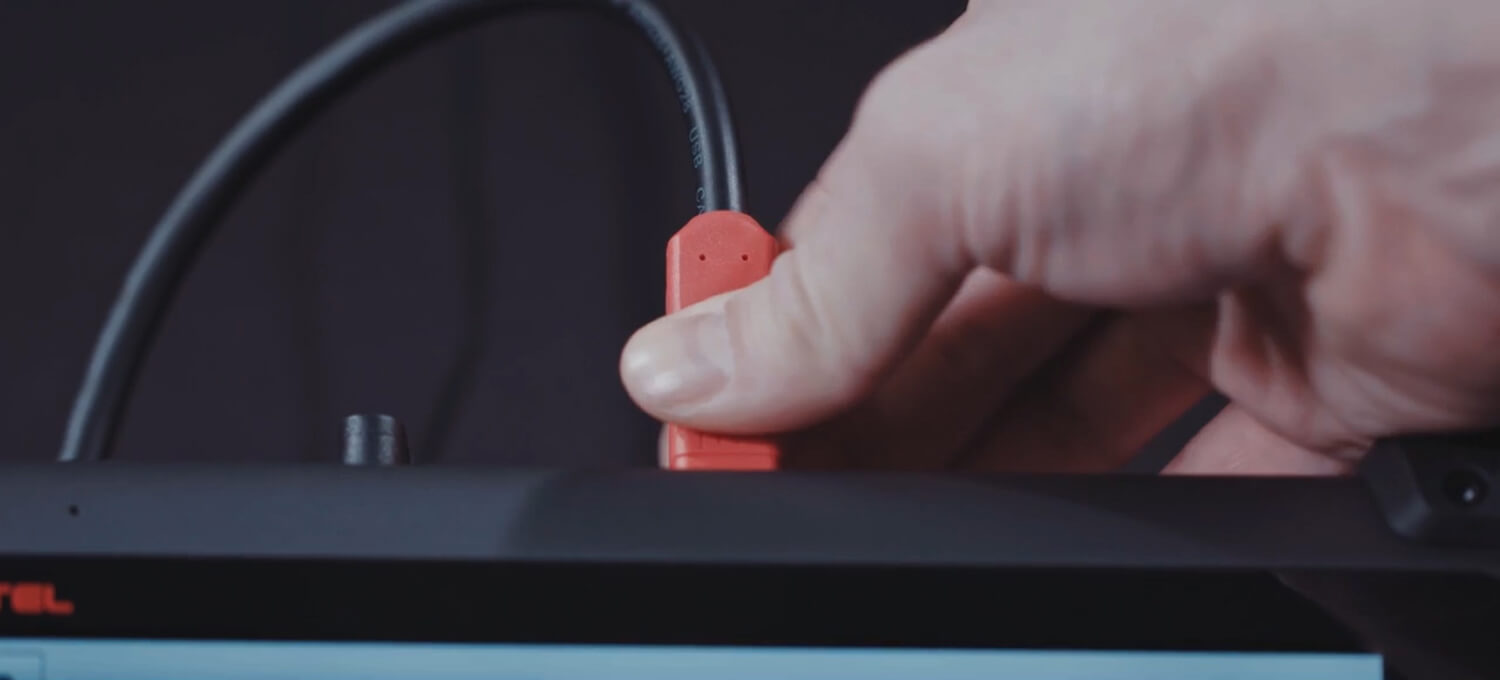

Once completed ,follow the instructions displayed and reboot the VCI .by unplugging the USB cable frome the VCI and then plugging in the USB cable back into the VCI .the tablet will then reconnect to the VCI and a message will display once the VCI update is completed.

Update VCI Steps

Update VCI Steps

Update VCI Steps

Step 1

  • Keep the VCI charged when updating
  • Connect the VCI to the tablet via supplied USB
  • Connect the tablet to the Internet via Wi-Fi

Step 2

  • Tap "VCI" icon
  • Select "Update"buttom
  • Disconnect and then reconnect the USB to reboot the VCI
