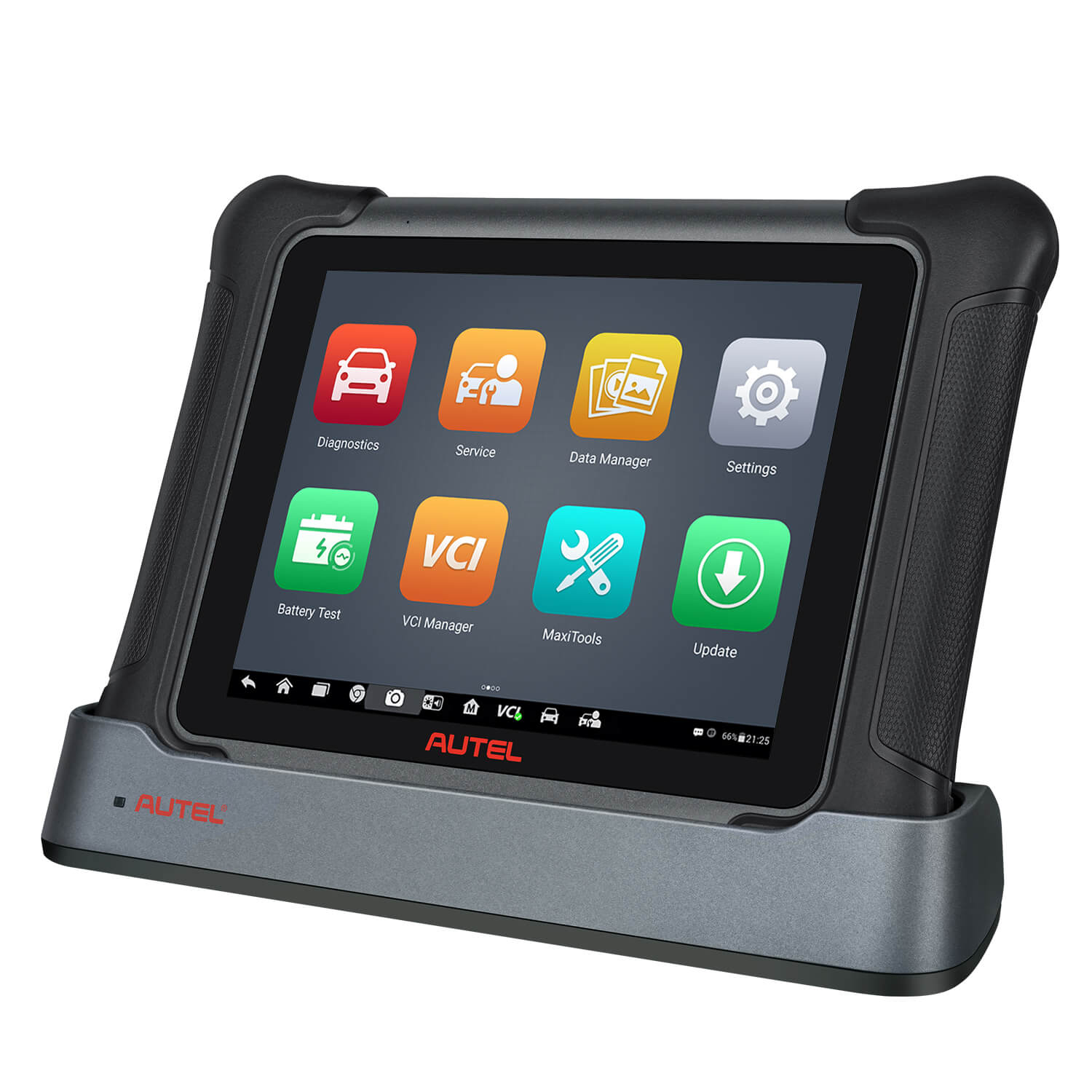

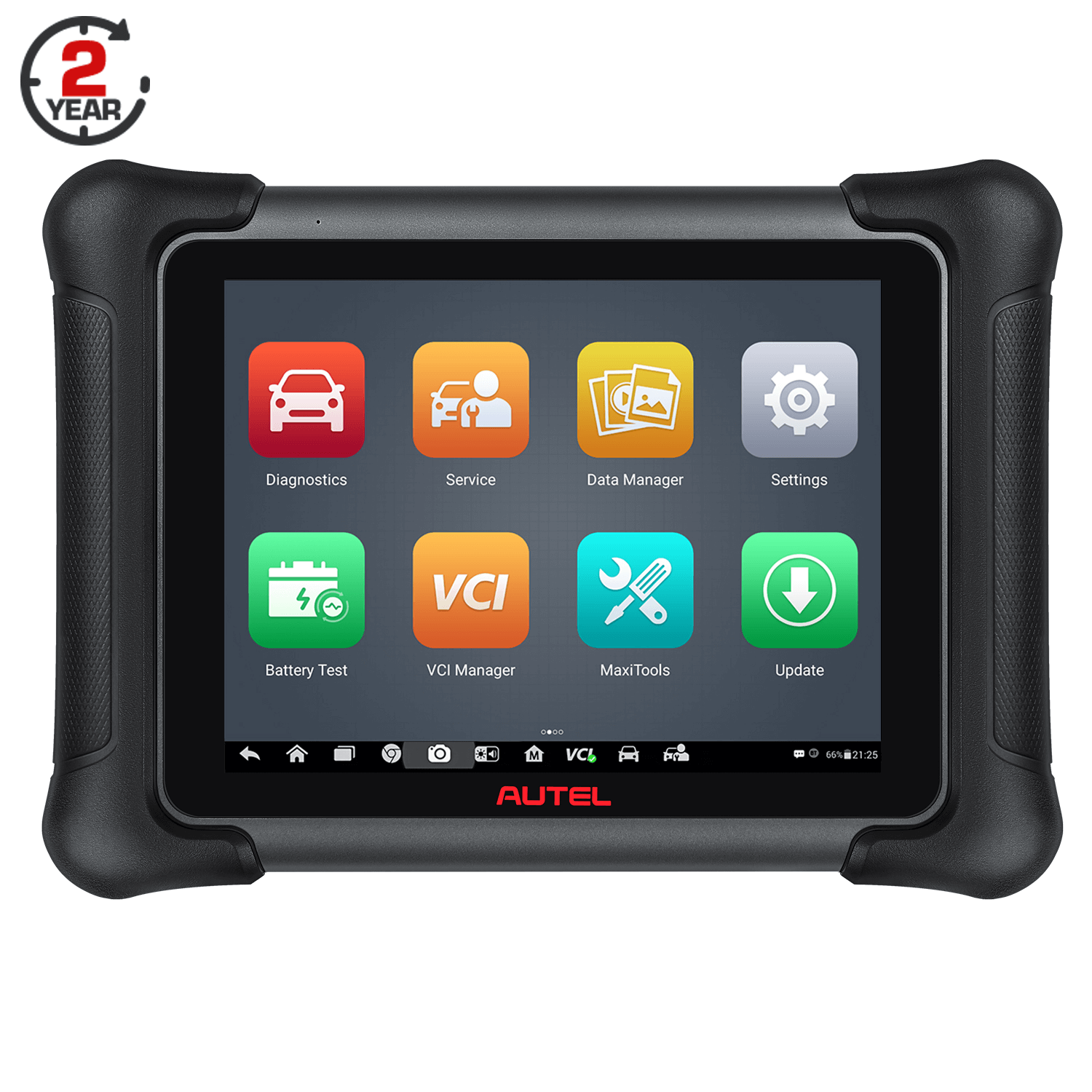

Autel Maxisys Elite II (Learn About Elite II Pro)

As 2022 Autel Upgraded ver. of Autel Elite/MK908P, MaxiSys Elite II has equipped with a set of TOP hardware, same as MS909(Valued £2799.00), such as Octa--core Processor, 4GB RAM 128GB ROM, 9.7” Retina display with 2048*1536 resolution, Android 7.0 OS, 15400mAH battery, etc. It also comes with improvement on software, such as supporting Autel cloud service, remote expert service and battery detection.

Autel Maxisys Elite II Main Features

1. Vehicle coverage: Elite II has full OBD2 coverage, the best possible coverage of OE-Level diagnosis on over 80 American, European and Asian vehicles and also coverage for some OBDI vehicles with 9 OBDI adapters included: Chrysler-16, Nissan-14, BMW-20, Kia-20, Honda-3, GM/Daewoo-12, Benz-38, Hyundai-12+16, VW/Audi-2+2.
2. Generic OBD II operations for retrieving OBD2 vehicle diagnostic information
3. Read Codes: displays detailed information of DTC records retrieved from the vehicle control module
4. Erase Codes: erases DTC records and other data from the ECM
5. Live Data: retrieves and displays live data and parameters from the vehicle’s ECU
6. USB or Bluetooth Connection: With the VCI dongle, data transmission between the vehicle and the Bluetooth Diagnostic Scan Tool Elite II could be either through the USB cable or the Bluetooth VCI
7. Fast Wireless Connection: Available Range Up to 230m. Elite II comes with both dual band 802.11n Wi-Fi technology and long range Blue-tooth connectivity that provides its users with an ultra-fast Vehicle Communication Interface. You don’t have to wait. Just plug it into the OBD-II dashboard and it will diagnose within seconds
8. AutoVIN Technology: advanced Auto-Scan functions to identify CAN-Enabled vehicles, in one touch. Autel Elite II displays the data in the form of text, graph, analog and digital gauge for efficient analysis
9. Warranty Update: 1 Year warranty for any possible quality problems and 1 Year free updates online
10. Notice: Please close the anti-virus software in your PC when updating the device

Intelligent Diagnostics

Intelligent Diagnostics is a specific fault code analysis function, with which you can access the most comprehensive and the latest code-specific data, DTC analysis, repair assist, repair tips, and relevant repair cases. It has been drawn from real world shop repair orders and records and with input from experienced industry professionals.

Intelligent Diagnostics adopts the scientific data cloud computing technology to match the specific fault code with the exact vehicle model. And the data has been thoroughly verified by automotive maintenance professionals.

1. Vehicle System and Detected DTC(s) - displays the name of the vehicle system(s) and the detected DTC(s).
2. Technical Service Bulletin (OEM Information) - contains DTC-related recalls, TSB, and OEM campaigns
3. DTC Analysis - provides repair assistance information related to the fault code.
4. Repair Assist - intelligently prioritizes DTCs and leads the user to the proper repair.
5. Repair Tips - details the steps for determining and clearing faults.
6. Component Measurement - provides detailed information and instructional guides on using the oscilloscope to test components for faults.

Note:Before performing the Intelligent Diagnostics function, please ensure the network is connected successfully

Function Introduction

Vehicle System and Detected DTC(s)

This section displays the scanned vehicle systems that contain faults. Tap the drop-down menu to view comprehensive information of ALL systems or switch to different fault codes for details.

Vehicle System and Detected DTC(s) Screen

Technical Service Bulletin (OEM Information)

The Technical Service Bulletin (TSB) function matches the selected fault code with relevant vehicle manufacturer TSBs. All TSBs that relate to the selected DTC are listed in the TSB display window. Select a TSB to open the TSB page and view the TSB in details

DTC Analysis

On the Intelligent Diagnostics screen, the DTC Analysis contains repair assistance and information related to the fault codes, including the fault description, condition, and possible solution. The repair assistance information may vary by vehicle.

Repair Assist

The Repair Assist displays a list of items and their descriptions, completion status, and priorities. The higher the priority number is (1 is the highest), the earlier the related items should be tested.

Programming

Since the introduction of OBDII and leading up to modern Hybrids and EVs, hardware and software technologies in cars have been advancing at an exponential rate. Updating software may be the only way to fix the following issues:

• Drivability
• Fuel Efficiency
• Power Loss
• Fault Codes
• Durability of Mechanical Parts

The Programming function is used to re-flash the vehicle control modules, which allows you to update the computer software of the vehicle to the latest version, as well as to reprogram adaptive data of certain components after making repairs or replacements

Available programming operations vary by test vehicle. Only the available operations display in the tablet menu. There are two general types of programming operations:

• All available systems for coding are displayed on the left side, and the coding data or value on the right side.
• The bottom of the main section displays the function buttons that enable you to manipulate the operation.

Service

The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.

The reset service is not applicable to all models, and the models supported by different functions are different. If you need to know whether Autel diagnostic tools can support it, please contact us and inform us of

Bi-directional Control (Active Test)

Elite II automotive diagnostic scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid, relay.
Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to Autel website or consult us directly.

Hidden Brush

The Autel Elite II is a powerful diagnostic tool that comes equipped with a variety of advanced features, including a hidden function known as "flashing" or "hiding". This function allows users to make certain changes to the programming of their vehicle's onboard computer system, which can be useful for a range of purposes.

For example, if you have modified your vehicle with aftermarket parts such as a new exhaust system or performance chip, you may need to adjust the engine's parameters in order to achieve optimal performance. The flashing function in the Autel Elite II allows you to do just that, by changing the settings of the ECU (engine control unit) to better suit your vehicle's modifications.

In addition, the hidden function can also be used to remove certain restrictions or limitations that may have been programmed into the vehicle's computer system by the manufacturer. This can include speed limiters, torque limiters, and other types of restrictions that may be holding your vehicle back.

Guided Function

The Guided Functions are advantaged with their easy operations. A guided functions is composed of multiple basic functions, freeing users from trouble such as looking up channel number and login code. Every guided function has detailed operation guidance and operating condition statement.

Online ECU Coding

Autel MaxiPro Elite II professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.

Autel MaxiPRO Elite II Helpful Service

• Auto VIN - The diagnostic system features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system
• Remote Desk – Elite II works with TeamViewer Quick Support to enable you to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your tablet diagnostic tool on their PC.
• Shop Manager – MaxiPro Elite II owns an application that helps you deal with the daily workshop business and improve customer service by helping you manage the workshop information, customer information records, and much more.
• Data Manager –Elite II Supports to store, print, and review the saved files.
• Academy -Autel MaxiPRO Elite II provides tutorials and technical bulletins written by top-notch technicians and product experts

Autel MaxSys Elite II Expanded Functions

Autel MaxiSys Elite II Specifications
