May 17, 2022 Peter He

What are Differences Between Autel MaxiIM IM508 and IM608 pro

Autel IM508 & IM608 Pro both are professional key programming tools that combines comprehensive key programming, all systems diagnostics and hot service functions without breaking your bank.

You can first browse the complete comparison table of IM508 and IM608 Pro. We have marked the key parts and indicated the accessories that need to be matched if you need to support a certain function.

Model	IM508	IM608 Pro
Programming
EEPROM Read/Write	Basic	Advanced
MCU Read/Write	Basic	Advanced
Immobilizer Read/Write	Standard Functions	Advanced
Engine Read/Write	Standard Functions	Advanced
Mercedes Infrared Key Read/Write	Need XP400 Pro	Standard Functions
Remote Frequency Detection	Need XP400 Pro	Standard Functions
IMMO
Smart Mode(Guided and Automated Key Learning Function)	Standard Functions	Standard Functions
Auto Detect Make/Model/Year/System	Standard Functions	Standard Functions
Read PIN(Add Key/All Key Lost)	Standard Functions	Standard Functions
Key Generation/Key Learning/Remote Learning	Standard Functions	Standard Functions
IMMO ECU Reset/Adaption	Standard Functions	Standard Functions
IMMO ECU Refresh/Coding	Standard Functions	Standard Functions
Backup/Restore IMMO Data	Standard Functions	Standard Functions
BENZ 3rd Generation IMMO Add Key, All Key Lost via OBD	Need XP400 Pro	Standard Functions
Read/Write/Erase Benz ESL_W209 / W906 Data	Need XP400 Pro and IMKPA	Need IMKPA
Benz OE NEC Key Learning	Need XP400 Pro and IMKPA	Need IMKPA
Volkswagen MQB Key Learning via OBD	Standard Functions	Standard Functions
Volkswagen/Audi 4th Generation IMMO Key Learning	Standard Functions	Standard Functions
Volkswagen/Audi 5th Generation IMMO Key Learning	Standard Functions	Standard Functions
BMW FEM/BDC Key Learning and Adaption	Standard Functions	Standard Functions
BMW CAS4/3/2/1 Key Learning	Standard Functions	Standard Functions
BMW EWS3 Key Learning	Need XP400 Pro and IMKPA	Need IMKPA
2015-2019 Jaguar Land Rover Write Key via Dump	Need XP400 Pro	Standard Functions
Volvo Smart Key/Fobik Smart Key Learning	Need XP400 Pro	Standard Functions
Volkswagen/AUDI/BMW Key Unlock	Need XP400 Pro and IMKPA	Need IMKPA
OE-Level Diagnostics
All Systems for Over 80 Makes	Standard Functions	Standard Functions
Active Test	/	Standard Functions
ECU Coding	/	Standard Functions
Complete Service Functions	Basic	Advanced
Features
Rechargeable Li-ion Battery	5000 mAh	15000 mAh
Internet Updatable	Wi-Fi	Wi-Fi
Multilingual Support	Standard Functions	Standard Functions
Limited One Year Warranty	Standard Functions	Standard Functions
Touchscreen	7-inch	10.1-inch
Memory	64GB	64GB
Processor	Quad-core	Hexa-core
Camera	/	8.0 Megapixel
Resolution	1024x600	1920x1200

Note:XP400 Pro can be purchased separately.
Some listed functions are manufacture dependent. Constantly update MaxiIM for current vehicle coverage. Update software on a regular basis to get the latest tool features.

But which is the best one? and what’s the difference between them?

For the different functions of the IM series tools, we introduce them from three aspects: IMMO, Diagnostics, Feature.

IMMO

As a locksmith or a mechanic, the most common situation you may encounter in your daily work is to add new keys or all keys lost for different brands of models. Therefore, the main difference is the anti-theft system level of different brands of models. The anti-theft level of Mercedes-Benz and BMW is the highest, and the corresponding use of Autel IM series tools to read the password will take longer. BMW and Mercedes-Benz have different levels of anti-theft systems on models of different production years. That is to say, if you need IM series tools to support the IMMO function of Mercedes-Benz third-generation anti-theft system or BMW CAS 4, then XP400 Pro+IMKPA must be equipped.
Diagnostics

The Autel MaxiIM family of products combines key prorgramming and All Systems Diagnostics functions. In order to facilitate comparison, the diagnostic level of IM508 is similar to that of MK808 (MX808). It can support system-wide code reading and clearing, and supports up to 25 reset services. The diagnostic level of IM608 is similar to that of MK(MS)908. In addition to the basic code reading and clearing and reset services, it also has Bi-Directional Control (Active Test), guide function and ECU Coding (not support Benz).
Feature

After we introduced the key programming and diagnostic functions of the MaxiIM series, we will compare the parameters of the two tablets. First of all, the hardware of IM608 is undoubtedly an upgraded version of IM508, with larger screen, battery circuit, better processor and resolution and so on. If you have requirements for the user experience and want the device to have powerful hardware parameters, then there is no doubt about choosing the IM608 tablet.

Which option should I choose?

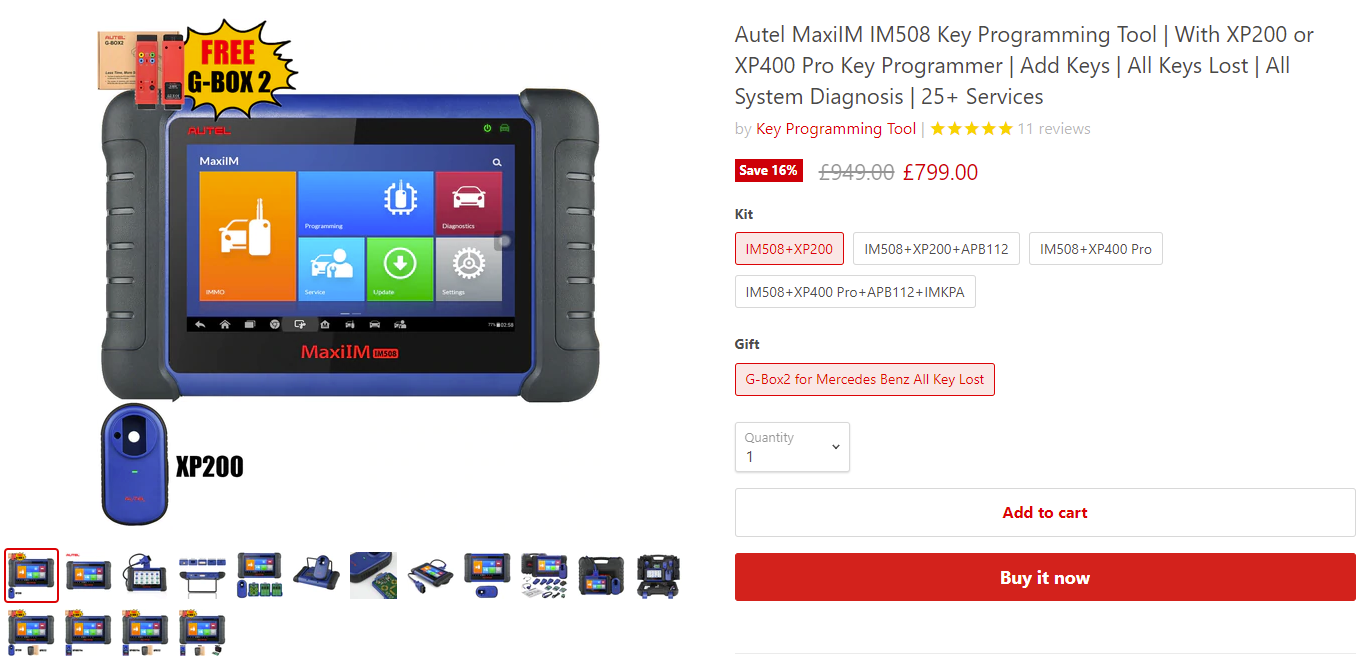

When to choose Autel MaxiIM IM508+XP200?

If you need to do Japanese car(Toyota,Suzuki,Mitsubishi,Honda) and other vehicle,but not need to do Europe vehicle key programming(such as Benz). and not need powerful all system diagnostic function,you can choose Autel MaxiIM IM508+XP200.

👉Autel MaxiIM IM508+XP200 & Free G-box 2

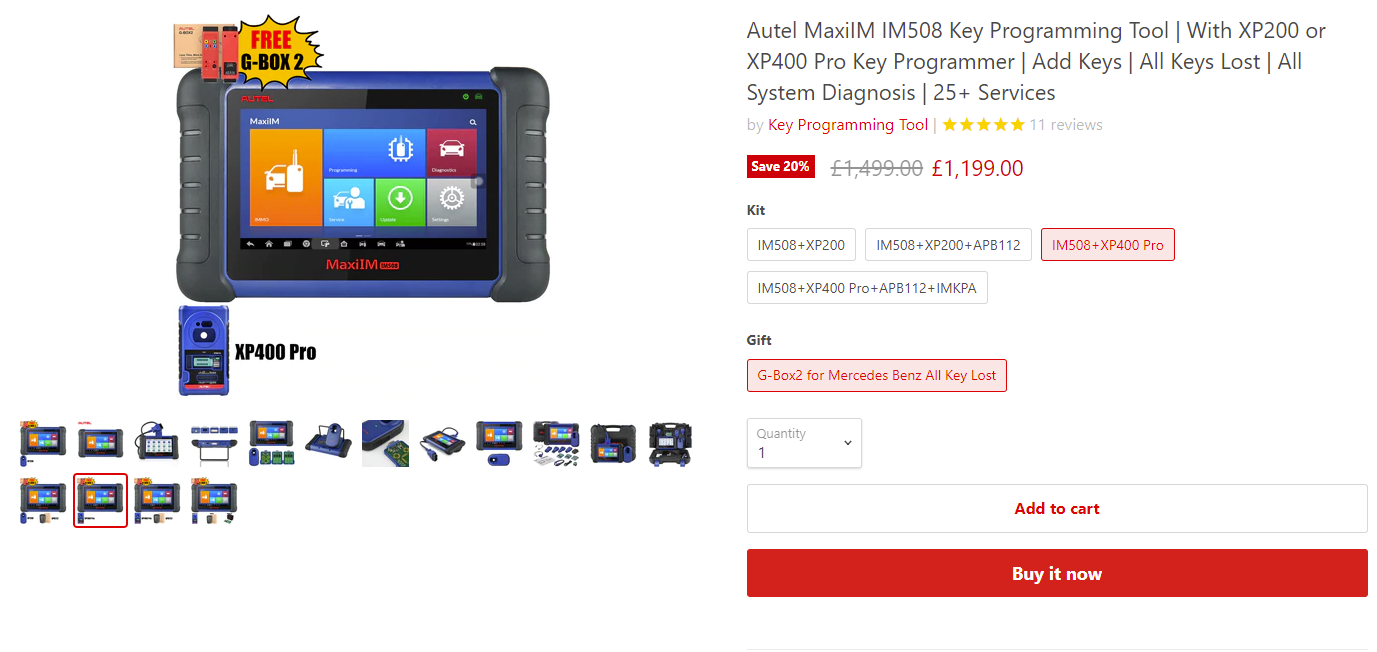

When to choose Autel MaxiIM IM508 + XP400 Pro?

If you buy Autel MaxiIM Tool is for key programming, need to do BMW,Benz Key Programming, we recommend you buy IM508 +XP400 Pro, it is more economic,has better price than IM608 and has most powerful Autel IMMO function.

👉Autel MaxiIM IM508+XP400 Pro & Free G-box 2

When to choose Autel MaxiIM IM508 + XP400 Pro + G-BOX 2 + APB112 + IMKPA?

APB112 and G-BOX2 can help you reduce the waiting time for Mercedes-Benz to perform all keys lost function, from 100 minutes to about 10 minutes. And when you are equipped with XP400 Pro and IMKPA, the IM tool has the top IMMO function, especially if you need to be able to support the following functions: Read/Write/Erase Benz ESL_W209 / W906 Data, Benz OE NEC Key Learning, BMW EWS3 Key Learning, Volkswagen/AUDI/BMW Key Unlock. Then choose this set to do your job well.

👉Autel MaxiIM IM508 + XP400 Pro + G-BOX 2 + APB112 + IMKPA

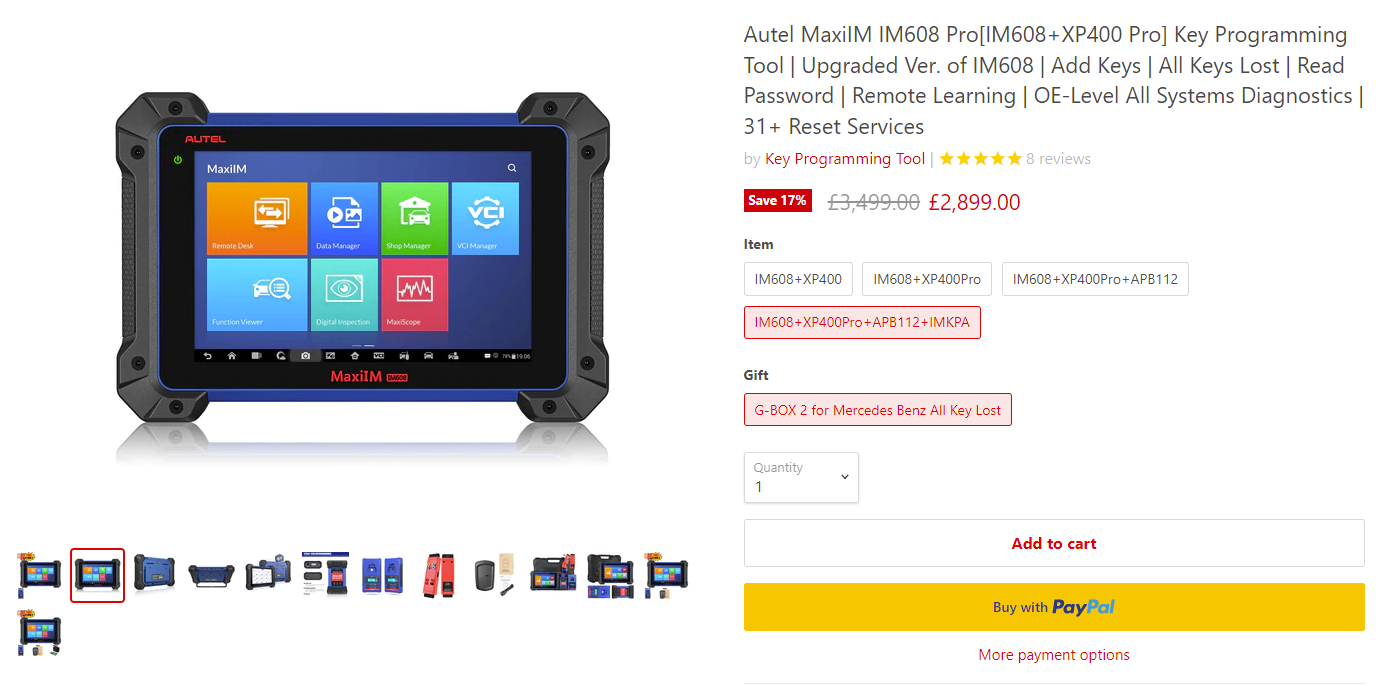

When to choose Autel MaxiIM IM608?

The power of the IMMO function depends on the accessories such as the XP400 Pro key programming tool and the IMKPA adapter kit. The choice on the tablet is mainly about diagnostic functions and parameters. If you want to choose a complete set of tools for your medium and large repair shop, then choose the IM608. If you have a special diagnostic tool and just want a professional key programming tool, then choosing the IM508 with other accessories is a more affordable option.
