3 Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

So you know how to add a new key for the mercedes But what happens if you lost all your keys.

Luckily Autel has a solution for that.

Autel MaxiIM IM608 Pro[IM608+XP400 Pro] Key Programming Tool

Without the Autel G-BOX2 this process could take all day, but with the G-BOX2 that process can be cut down by over 80 percent.

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

So there are two scenarios in which you can use the G-BOX2.

One is by connecting with the OBD2 port in the vehicle, but for some Benz models like ours today, it does not work with the OBD.

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

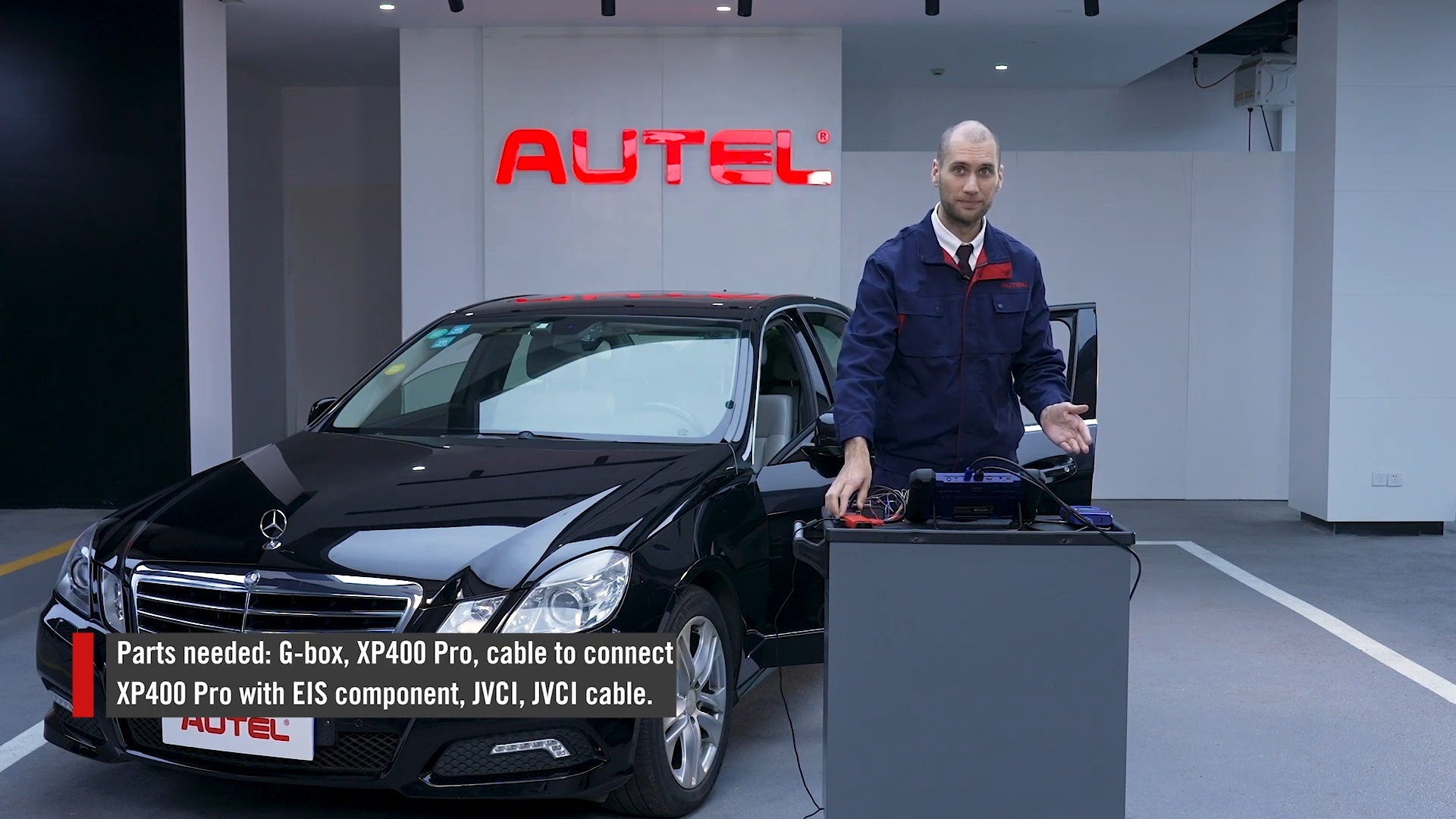

Therefore we need to disassemble the EIS component and work with that separately from the vehicle, so in addition to the G-BOX2 we also need the XP400 Pro key programmer, a cable that will connect the XP400 Pro with the Eis and the JVCI(J2435) and JVCI cable Finally make sure you’re connected to the internet, then follow the instructions for key learning with all keys lost.

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

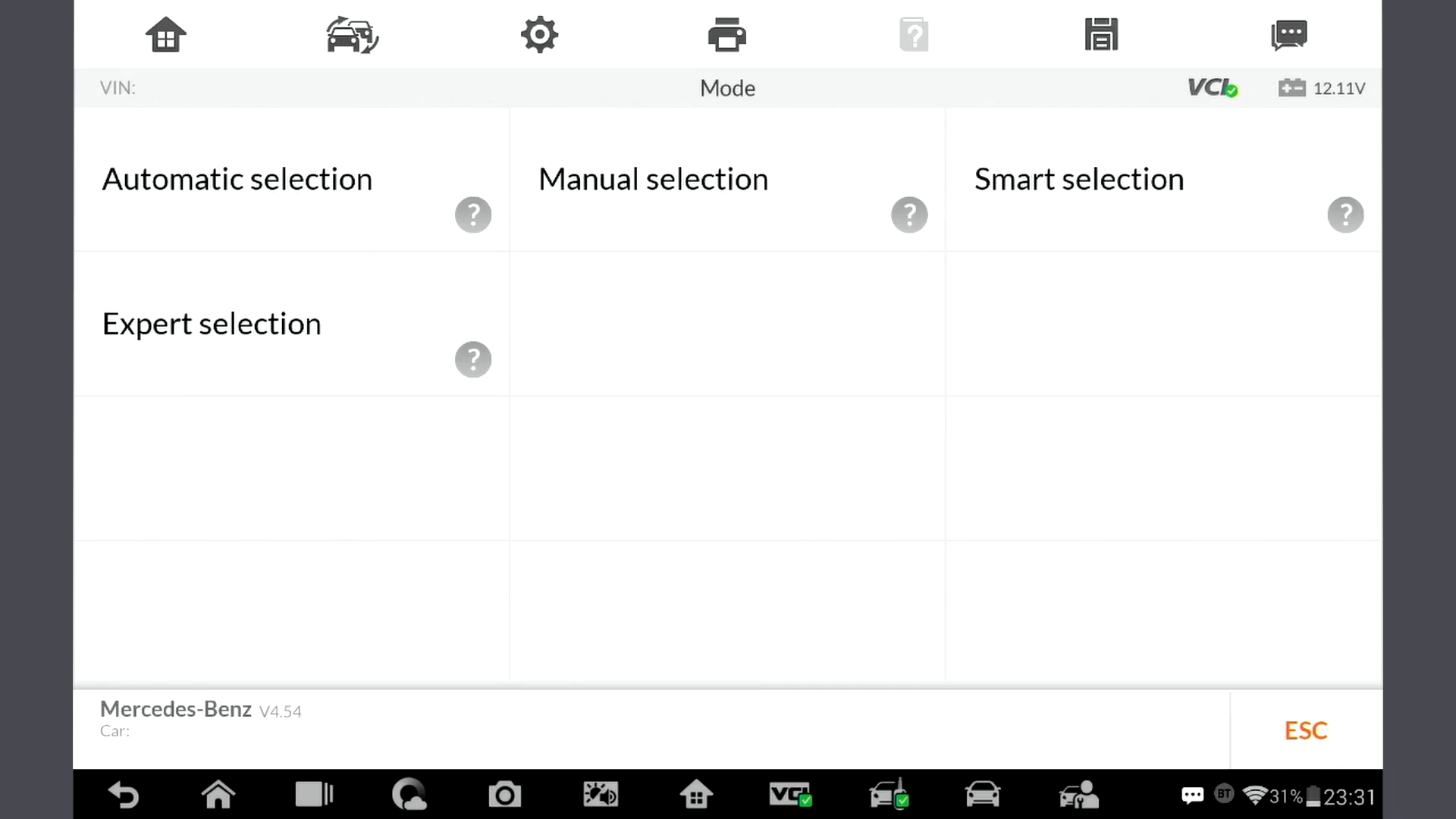

Select mercedes benz, then Smart selection.

Since we are working on bench we don’t need to read the VIN, we want to proceed with all keys lost fast, then select on bench G-BOX Fast.

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

We can check the EIS number on the EIS itself, which in this case is 209, so select 209 ,connect the power adapter to the G-BOX, next according to this diagram connect the wires to the EIS component, It is color coded and marked with labels to help you connect easily.

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

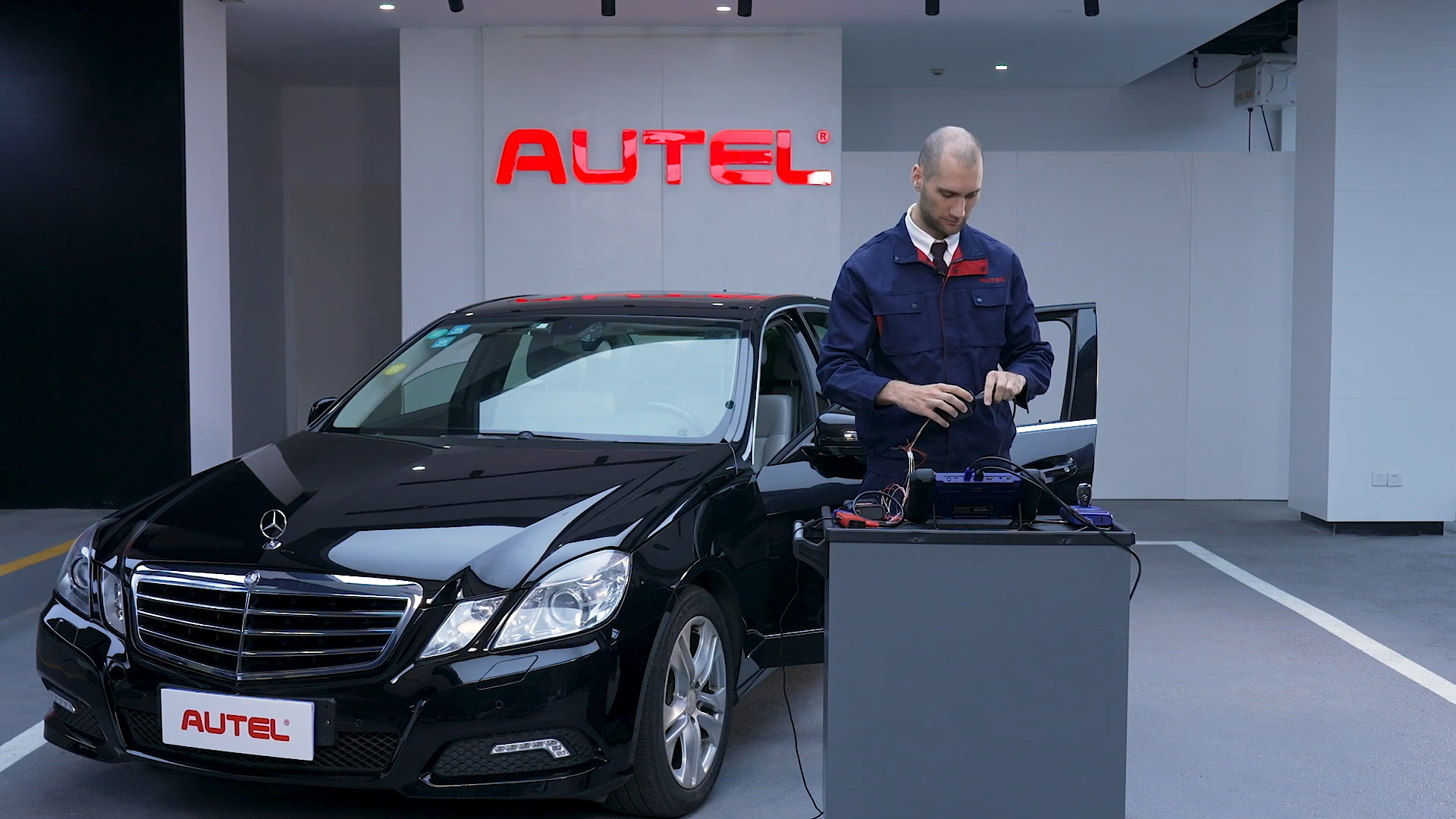

Finally connect the JVCI(J2534) and the JVCI cable with the G-BOX2.

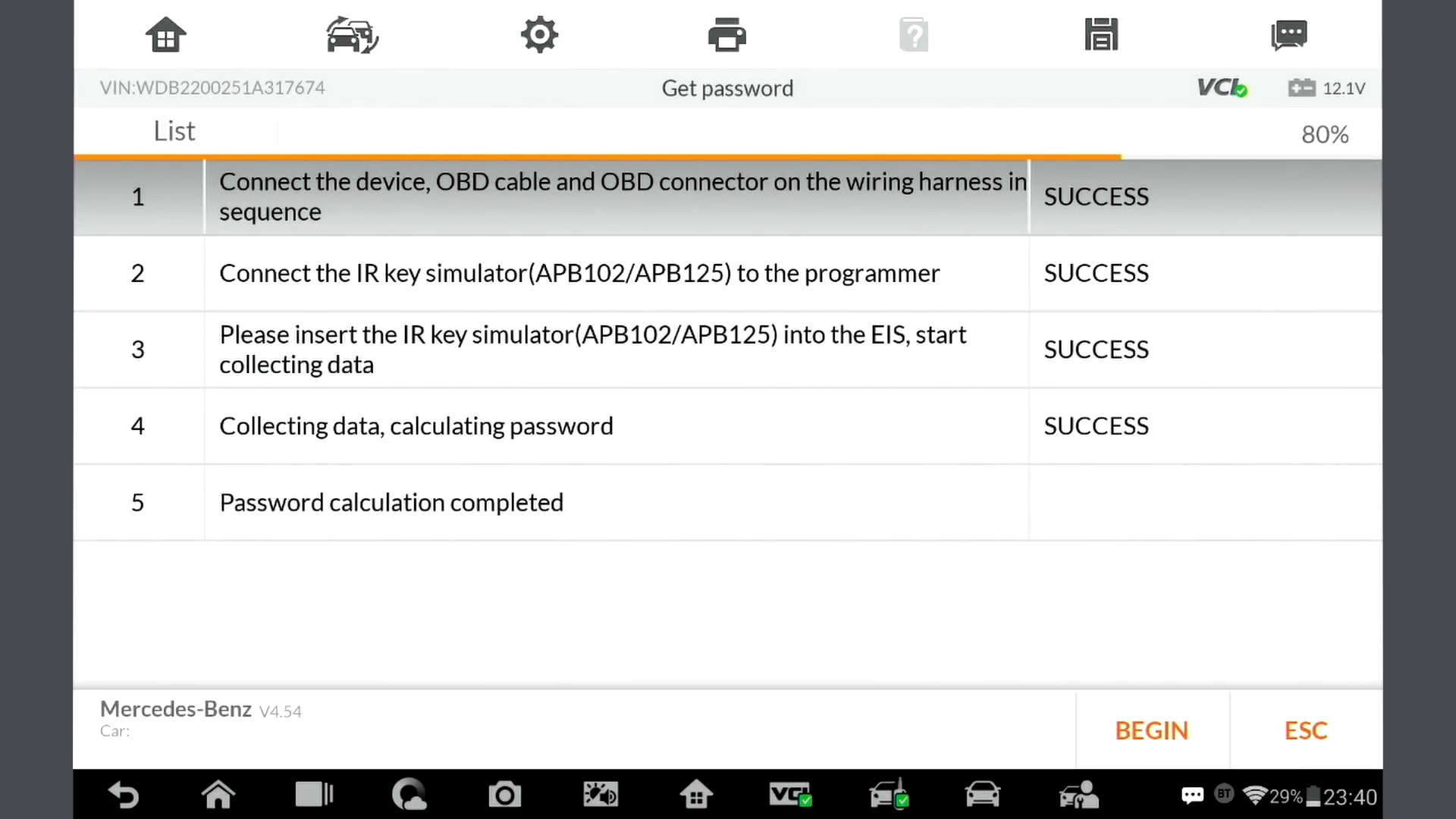

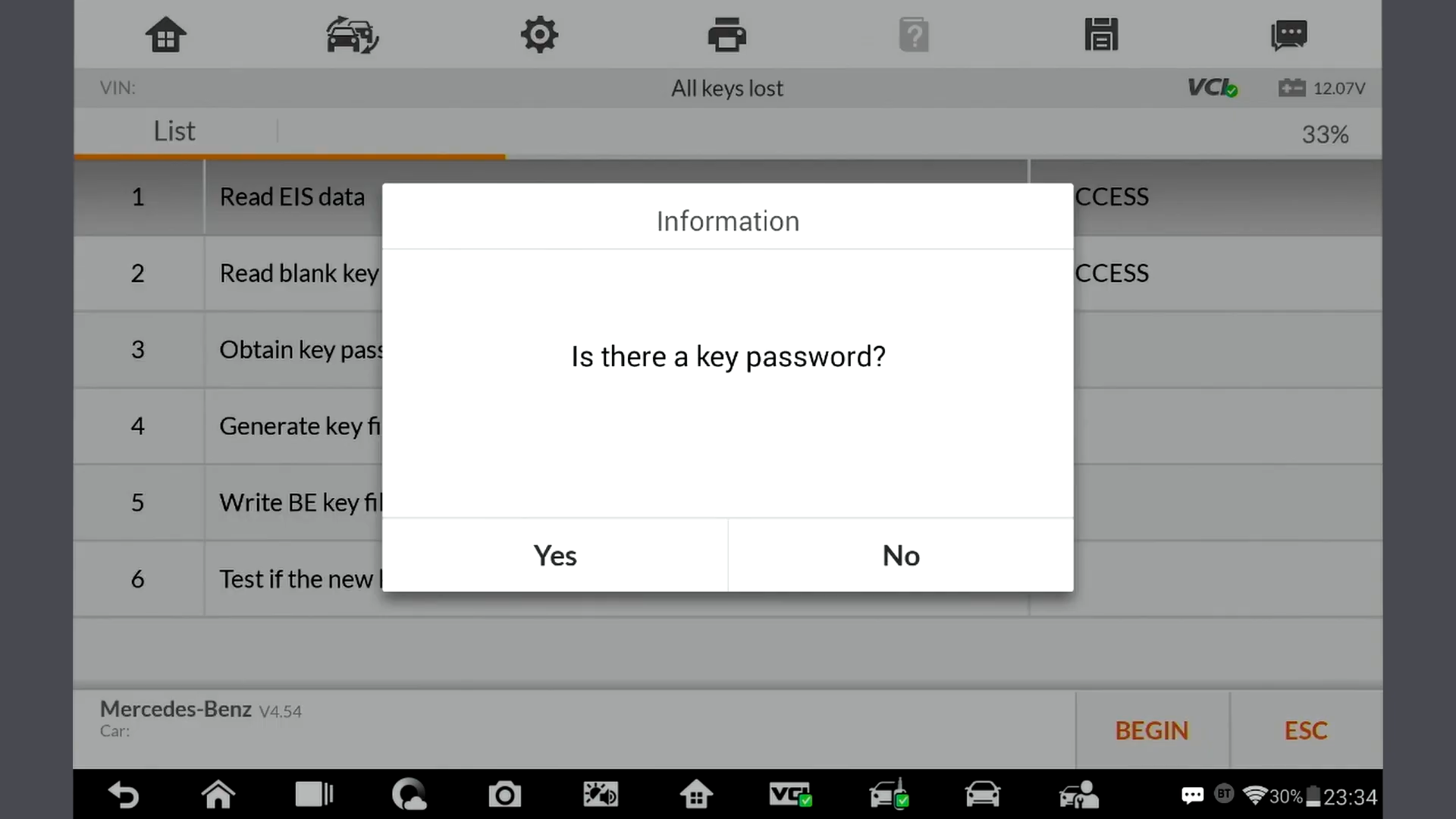

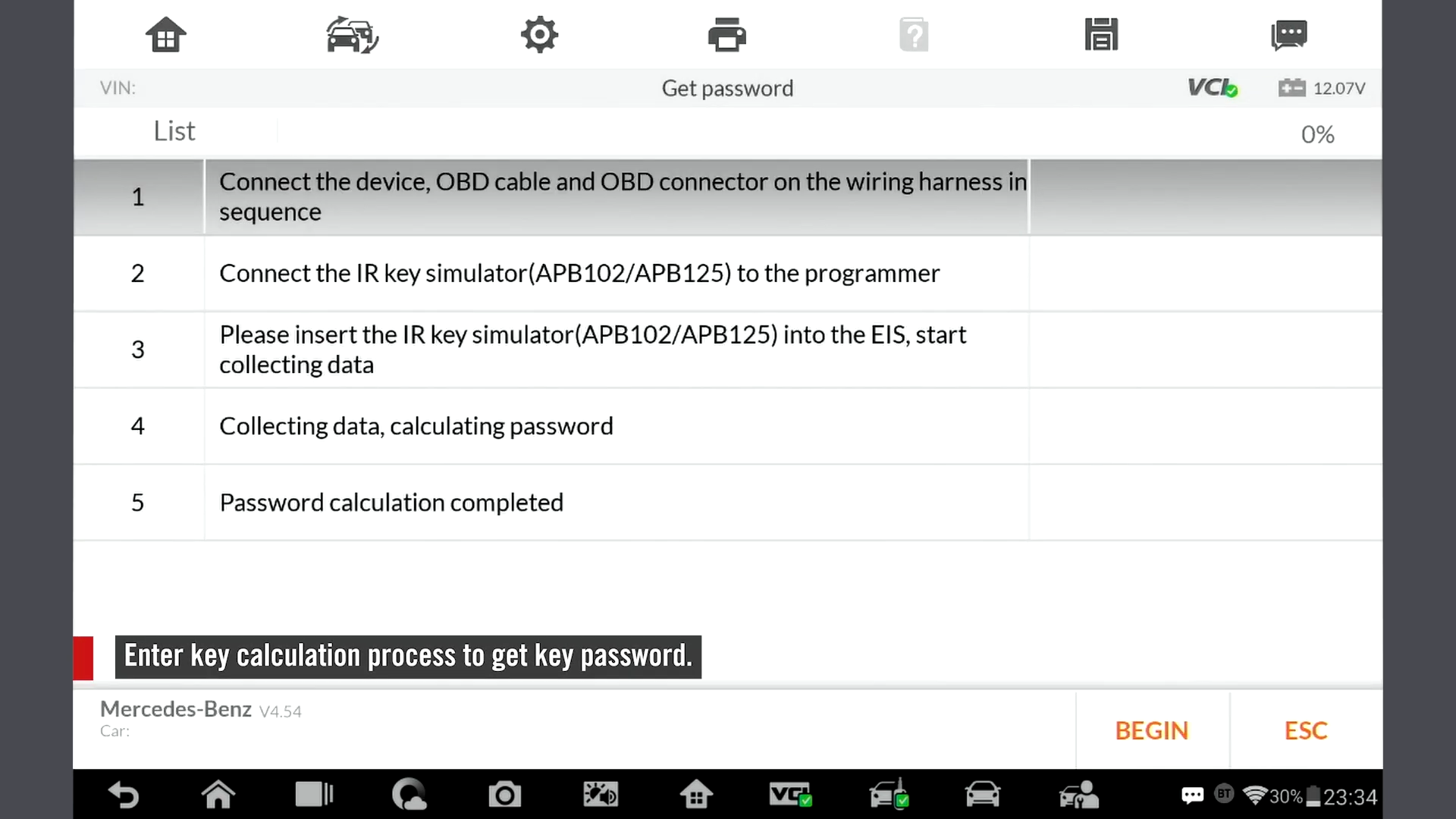

You are now ready to begin Follow the instruction on the screen, input a blank key into the XP400 Pro. We don’t have the password so we need to enter the key calculation process, take out the cable from the EIS and quickly put it back in. The key password calculation process will take up to 5minutes, once the key password is calculated the key learning will only take a few more seconds.

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

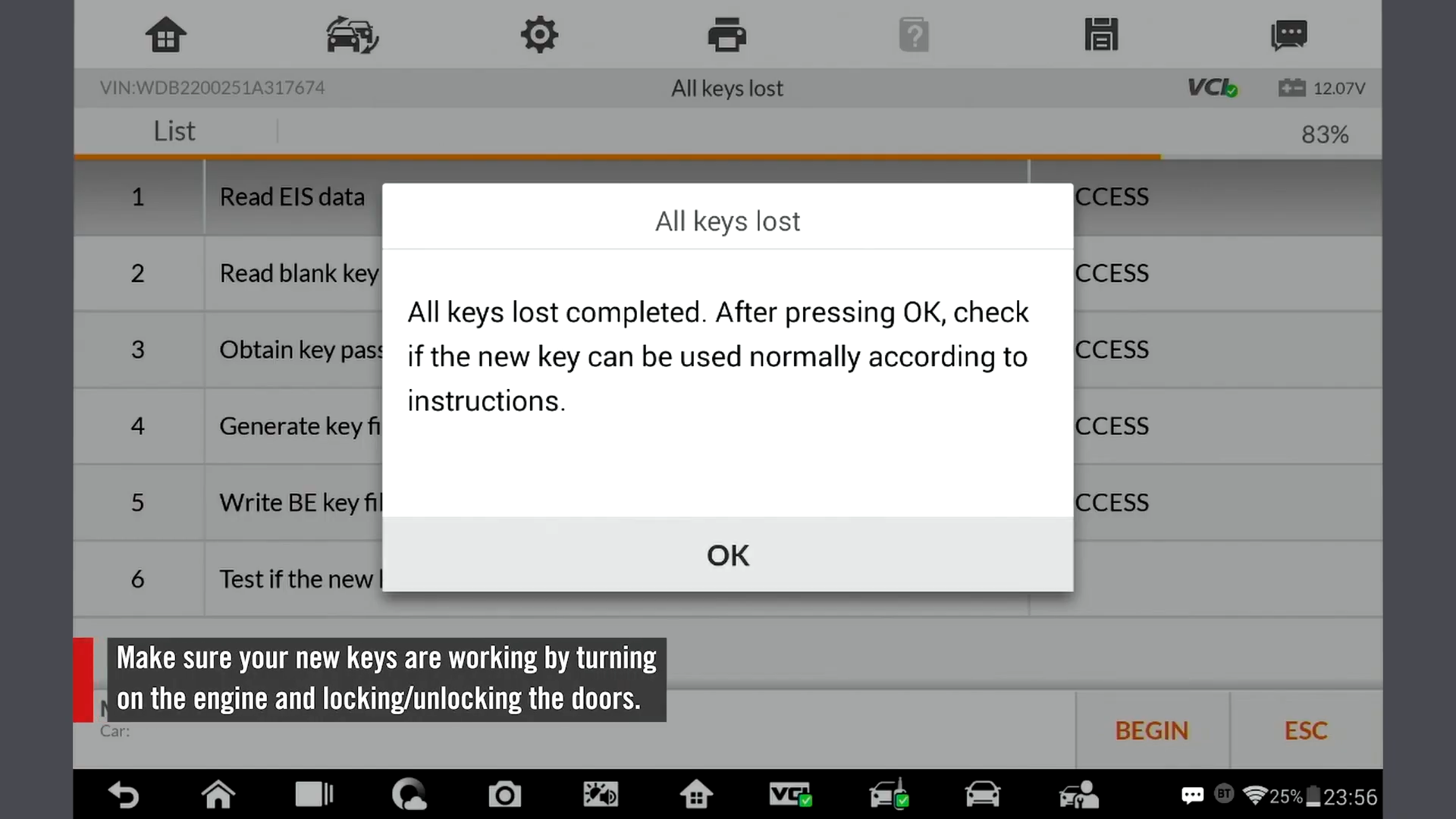

Once you receive the notification that key learning is completed. Assemble the EIS back into the vehicle and test the key.

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

Things To Do When You Lose Your Car Keys - Mercedes Benz All Keys Lost

It you don’t have a g-box you would need to put a blank key in and out of the ignition hundreds times but with the G-BOX2 you don’t need do of that That’s it for all keys lost with the mercedes, the G-BOX2 makes things much simpler.
