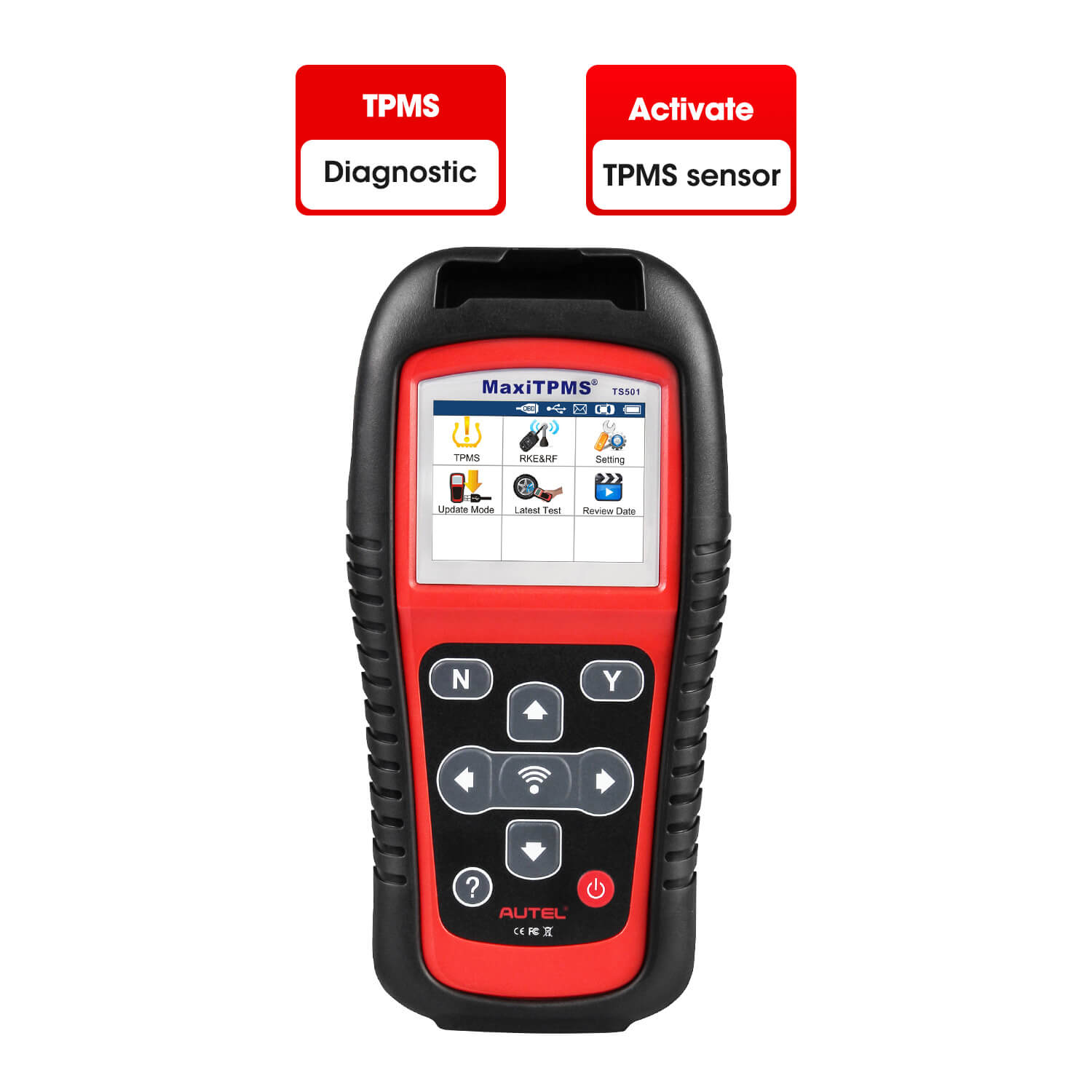

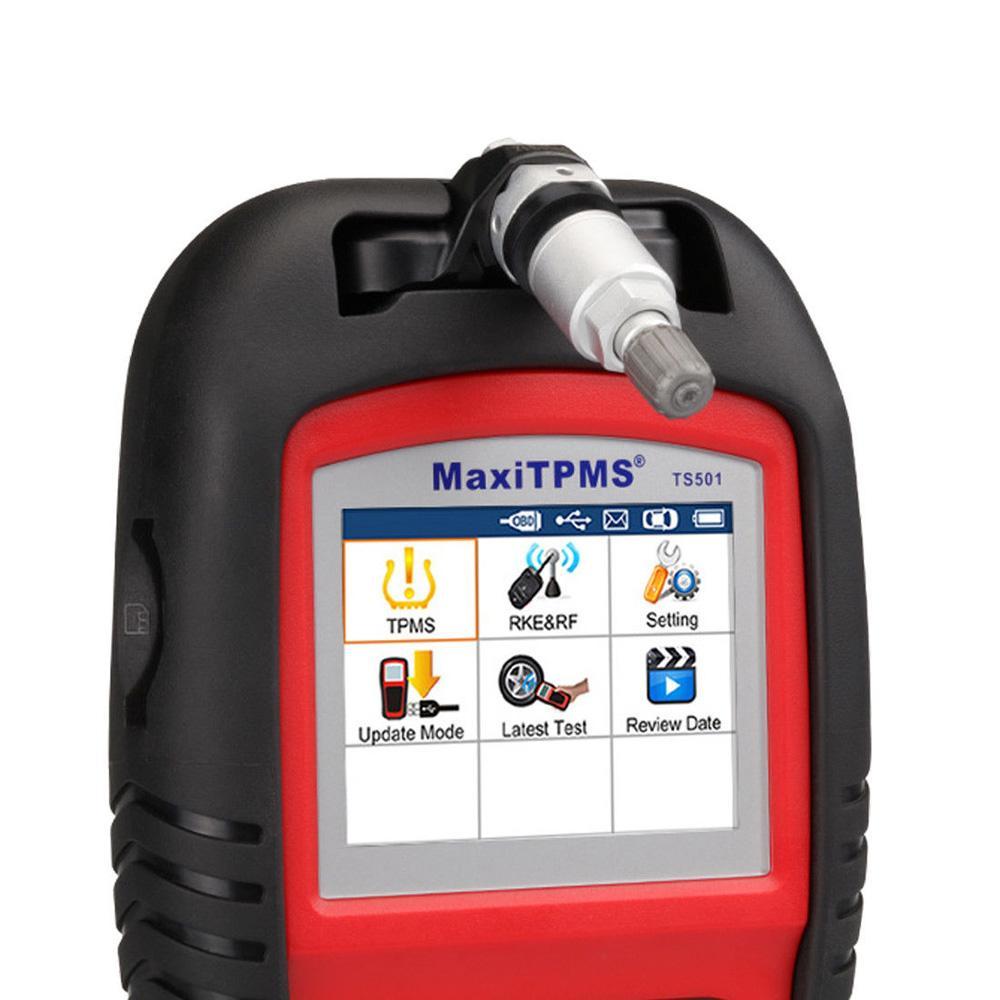

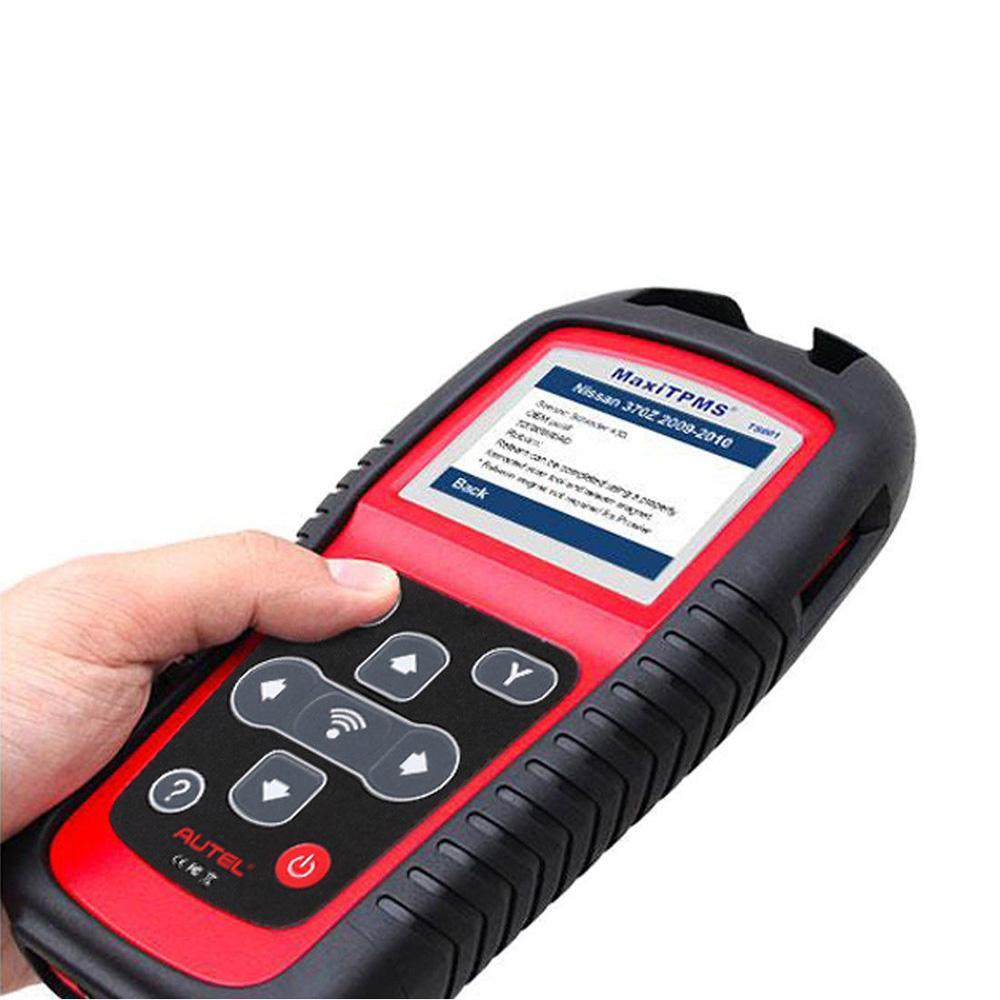

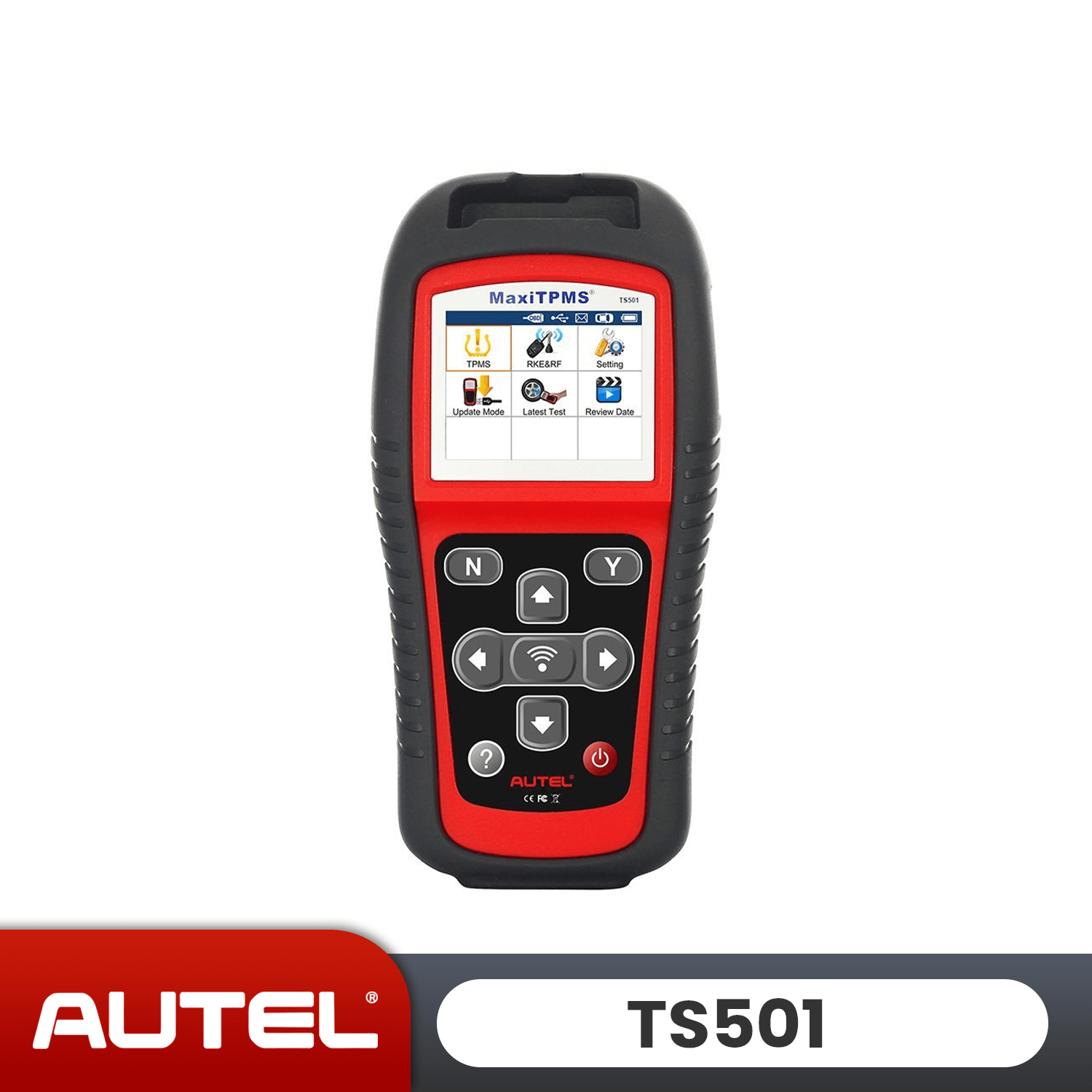

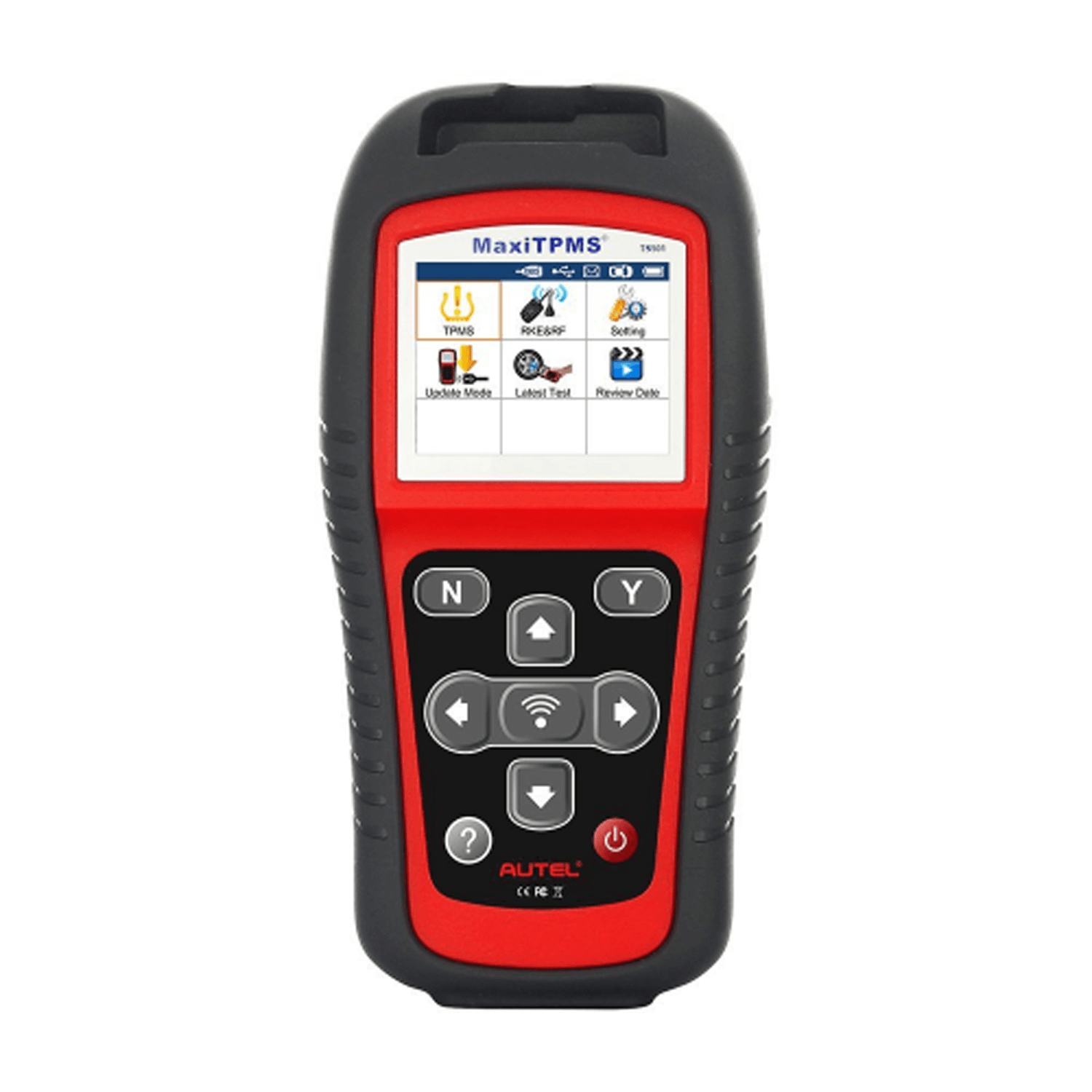

Autel MaxiTPMS TS501
Autel MaxiTPMS TS501 is the upgraded versaion of TS401/TS408. It is specially designed to activate all known OEM/Universal TPMS sensors, TS501 can diagnose newest models up to 2020 with frequent updates. Autel TS501 provides users with direct access to the vehicle’s ECU through OBD II connection, thus allowing users to reprogram sensor IDs and retrieve/clear TPMS DTCs, helping technicians to quickly find out faulty TPMS and turn off MILs.
TOP 5 Highlights
-
Upgraded Version of TS408 - MaxiTPMS TS501 can diagnose newest models up to 2020 and It packed ALL TPMS service options: TPMS programming(MX-Sensors), sensors Relearn/Activation, TPMS Reset and TPMS health diagnose, read sensor data, key fob frequency test.
-
TPMS Programming -Autel TS501 TPMS Programming Tool enables all car enthusiasts to program sensor data to Autel MX-Sensors with ease
-
Relearn All TPMS Sensors - TS501 TPMS Relearn Tool provides 3 ways of on-tool relearn precedures to relearn both OE and aftermarket sensors: Stationary Relearn, Automatic Relearn & OBD Relearn.
-
Activate TPMS Sensors - MaxiTPMS TS501 TPMS Reset Tool can wirelessly activate all OEM/Universal TPMS sensors on the market, enables you retrieve TPMS sensor data like Sensor ID, Tire Pressure, Tire Temperature, Sensor Battery, Sensor Position, Frequency, etc at ease
-
Lifetime Warranty - Software Lifetime Free Update& Warranty/It has already saved you hundreds in trips to the mechanic for diagnostics and resets.
Basic Functions

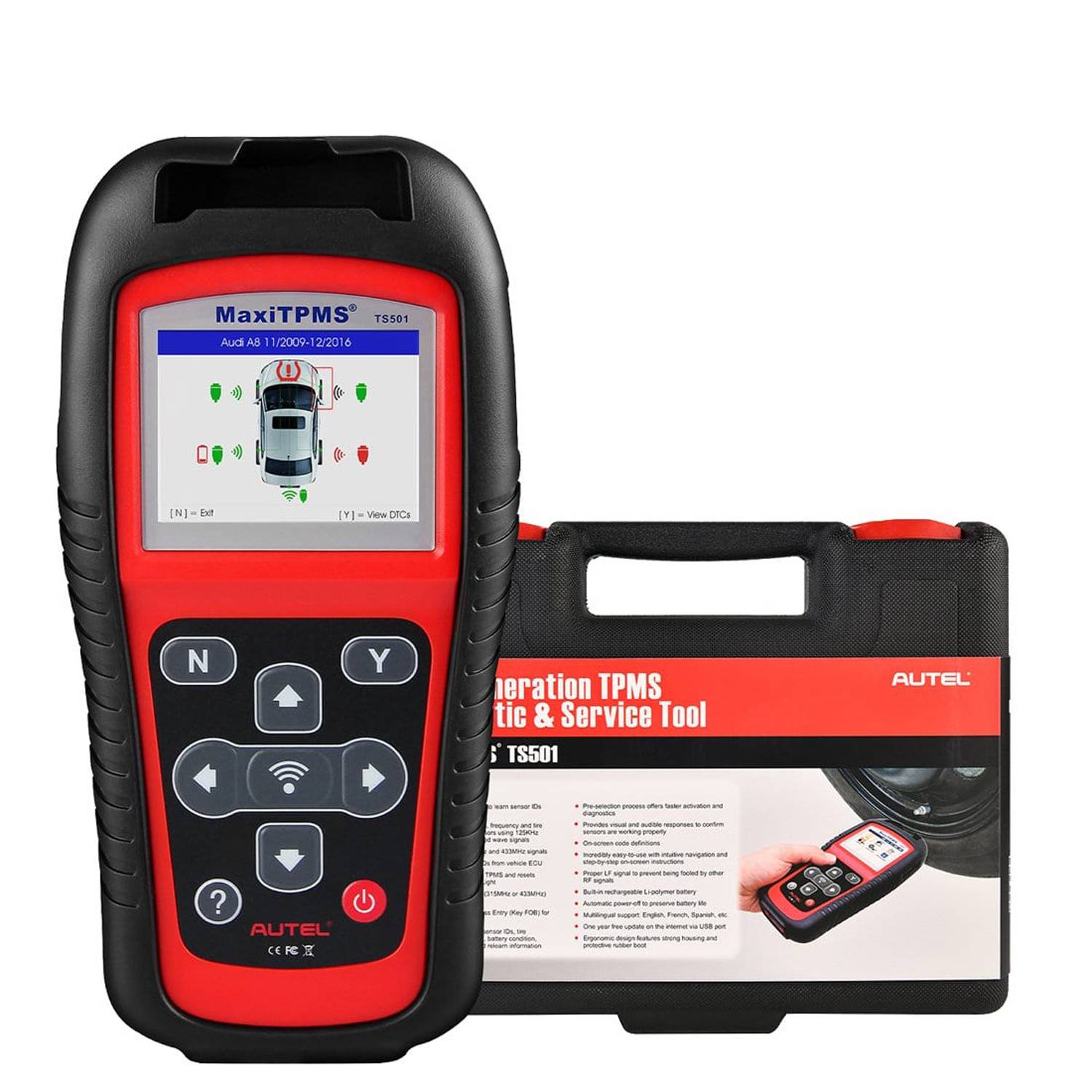

Autel MaxiTPMS TS501 At-A-Glance TPMS Status Screen
The single screen organization allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features, compare sensor and ECU data, then TS501 instantly pinpoint system faults to identify the fix. This At-A-Glance view of all sensor information easily shows the location of which sensor battery is low and needs to be replaced soon.
Easy To Use Software Operation
Autel TPMS Tool TS501 performing a basic sensor activation or complex diagnostic tool functions, is easy as following the program options and on-screen display instructions. The TS501 provides code definitions and visual / audio responses to make the operations much easier and more convenient to complete.
Download FREE software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!
Autel MaxiTPMS TS501 TPMS Diagnostics
MaxiTPMS TS501 TPMS Service Tool can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, or auto create ID, or manual write sensor IDs with no sensor re-learn required for sensor positioning.
Autel MaxiTPMS TS501 Product Features & Functions:
- Programs vehicle ECU to learn sensor IDs and positions
- Activates magnetic, frequency and tire deflation triggered sensors using 125kHz continuous or modulated wave signals
- Receives 315 MHz, 433.92 MHz and 309MHz signals
- Reads sensor ID from vehicle ECU
- Reads/clears codes of TPMS system and resets malfunction indicator light
- Built-in rechargeable Li-ion battery
- On-screen code definitions
- Simplifies the diagnostic process including four and five wheel vehicles by showing vehicle graphs
- Decodes sensor data and provides visual and audible responses to confirm sensors are working properly
- Interprets data including sensor ID, tire pressure, temperature, battery status and OE part no.
- Pre-selection process offers faster activation and diagnostics
- Accurate diagnosing results - a tool users can trust
Autel MaxiTPMS TS501 Specification
Display |
TFT color display (320 x 240 dpi) |
Power |
3.7 V Li-polymer battery; 2400mAh |
Operating Temperature |
0 to 50°C (32 to 122°F) |
Storage Temperature |
-20 to 70°C (-4 to 158°F) |
Dimensions (W x H x D) |
202.2 mm (7.96") x 106.7 mm (4.20") x 37.7 mm (1.48") |
Connectivity |
Mini USB 2.0*1 |
Weight |
0.4 kg (0.88 lb.) |
Warranty |
1 year |
Software Update |
Free |
Model |
TS501 |
TS508 |
TS608 |
MP808TS |
MS906TS |
TPMS Function |
Quick Mode & Advance Mode |
/ |
√ |
/ |
/ |
/ |
Activate TPMS sensors |
√ |
√ |
√ |
√ |
√ |
Read sensor data |
√ |
√ |
√ |
√ |
√ |
TPMS health check |
√ |
√ |
√ |
√ |
√ |
Read/clear TPMS DTCs |
√ |
√ |
√ |
√ |
√ |
Scan TPMS sensor ID |
√ |
√ |
√ |
√ |
√ |
Manual input OE ID into MX-sensor |
√ |
√ |
√ |
√ |
√ |
Program MX-Sensor by auto creating sensor ID |
√ |
√ |
√ |
√ |
√ |
Read Sensor ID by OBD and copy ID into MX-Sensor |
√ |
√ |
√ |
√ |
√ |
Relearn by OBD function |
√ |
√ |
√ |
√ |
√ |
Relearn procedure guide on the tool |
√ |
√ |
√ |
√ |
√ |
Check Key FOB |
√ |
√ |
√ |
√ |
/ |
Read TPMS live data |
/ |
/ |
√ |
√ |
√ |
Tire Type/Pressure selection |
/ |
√ |
√ |
√ |
√ |
Other TPMS special functions |
/ |
/ |
√ |
√ |
√ |
TPMS Toolkit (other function) |
/ |
/ |
√ |
/ |
/ |
Diagnostic Function |
Basic OBDII code reader |
/ |
/ |
√ |
√ |
√ |
Read/clear codes for all electronic systems |
/ |
/ |
√ |
√ |
√ |
Support all 10 test modes of the latest J1979 OBDII test specs |
/ |
/ |
√ |
√ |
√ |
Reset Serivce |
/ |
/ |
√ |
√ |
√ |
Special Function |
/ |
/ |
/ |
√ |
√ |
Bi-Directional Control |
/ |
/ |
/ |
√ |
√ |
Advanced Function |
ECU Online Coding |
/ |
/ |
/ |
/ |
√(BMW,Audi) |
VW, Audi, Skoda Brush Hidden
|
/ |
/ |
/ |
√ |
√ |
VW, Audi, Skoda, Seat, Bently, Man LD Boot function |
/ |
/ |
/ |
√ |
√ |
VW, Audi, Skoda, Seat, Bently, Man LD Boot function |
/ |
/ |
/ |
√ |
√ |
Autel Cloud Service |
/ |
/ |
√ |
√ |
√ |
Language |
Multi-Language |
Multi-Language |
Multi-Language |
Multi-Language |
Only English |
Summary
Through this TPMS comparison table, you can check the features supported by a specific model and choose the model that is most suitable for you. In order to better understand the differences and connections between various products, you can simply understand the following TPMS series products:
TS608 is similar to MK808BT+TS508, MP808TS is similar to MP808BT+TS508, MS906TS is similar to MS906BT+TS508. Support for specific functions Whether you need to contact us for query matching.
Benefits of Updating Your Tool to Latest
-
Tool Software/Function Upgrades: Get the latest features and functions as they roll out from Autel
-
Latest Vehicle Coverage: Service all the latest makes and models supported by Autel
How do we process your update service?
- After checkout, please send us your S/N and we will authorize your scanner within 24 hours.
- After authorizing, we will send you an notification and you will be able to renew your device online.
Please note: This update is very easy to operate, no shipping needed
