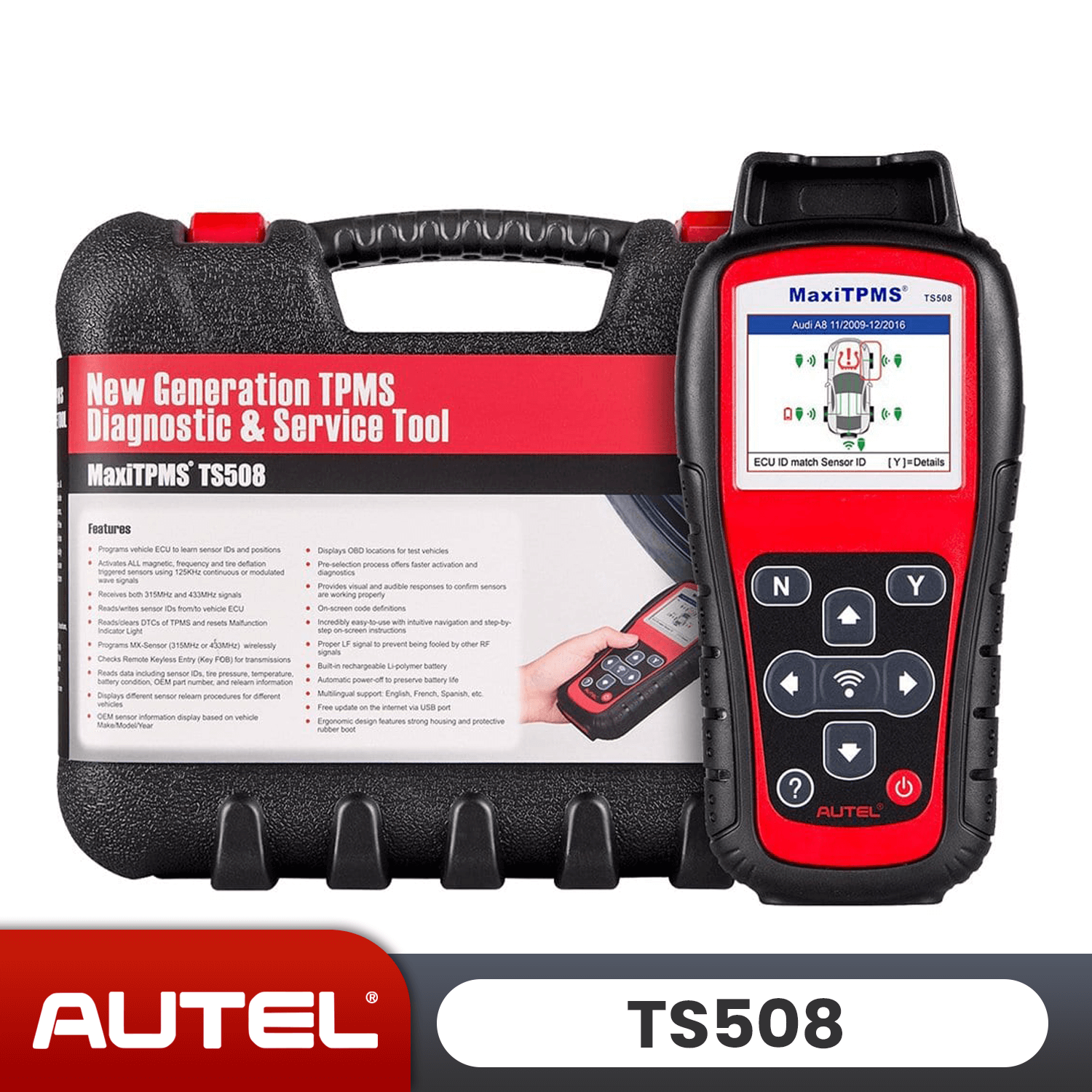

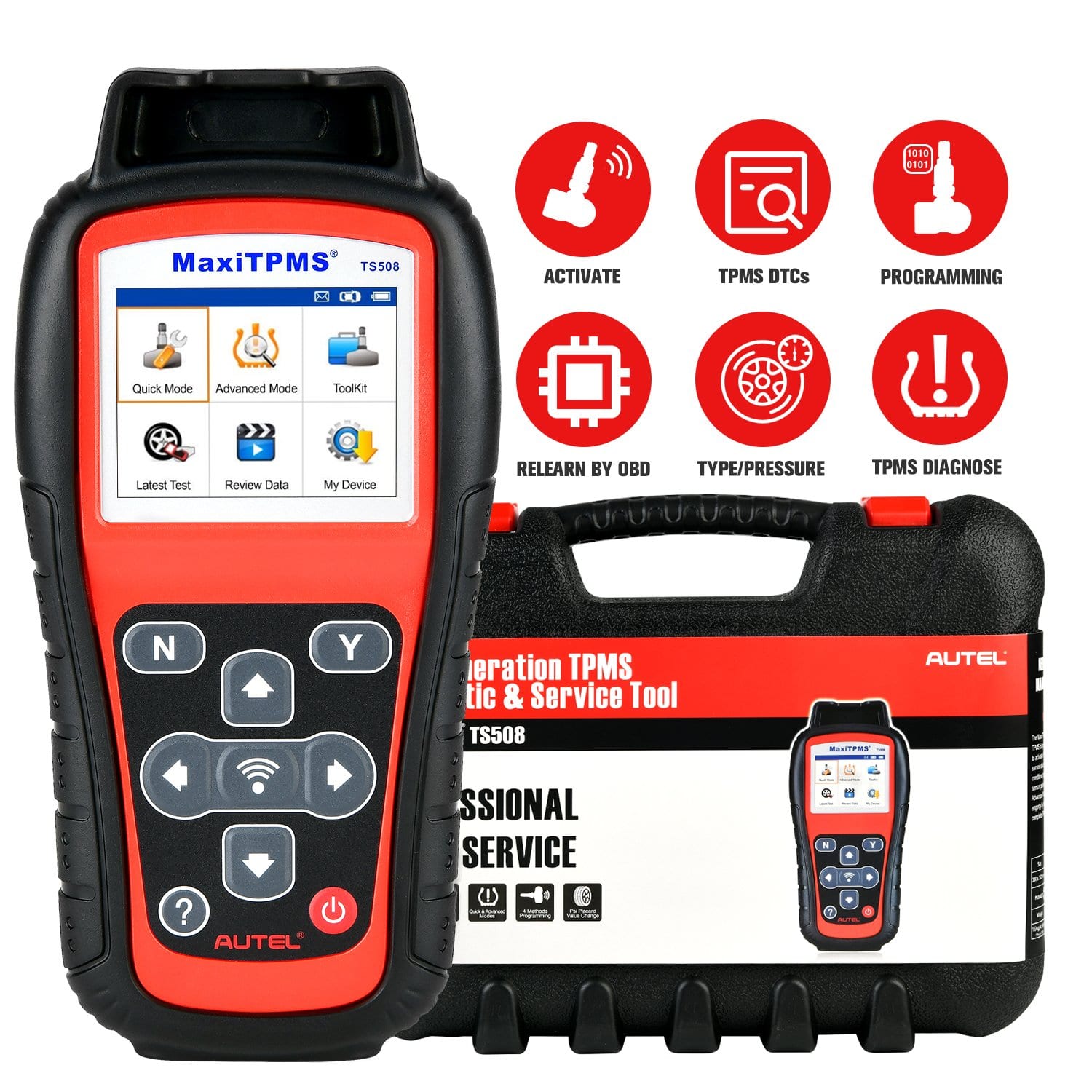

Autel MaxiTPMS TS508
Upgraded from TS401/TS408/TS501, 2022 newest MaxiTPM TS508 offers faster and smarter TPMS repairs for mechanics/DIYERs. It serves almost 99% of cars worldwide and integrates all you want in this powerful TPMS tool: TPMS Programming, Sensors Relearn & Activation, TPMS Reset & Diagnostics, Reading Sensor Data, Key Fob Test, etc.
TOP 5 Highlights
-
Easy TPMS Relearn& Resetting - TS508 Provides users with reading/writing sensor IDs on vehicle ECU and reading/ clearing codes of TPMS system, and to save data for later reviews and printing.
-
Fast TPMS Sensor Activate - With Autel TS508, you can wirelessly activate all OEM/Universal TPMS sensors on the market, helping you easily get sensor data like sensor ID, tire pressure, tire temperature, sensor battery, sensor position, frequency, etc.
-
Multiple mode selection - With Quick Mode and Advanced Mode options, the most fast way to complete TPMS work
-
As the Upgrade Version of TS408/TS501- Autel MaxiTPMS TS508 can diagnose newest models up to 2020 And it packed ALL TPMS service
-
Supports Multi-language - English, Spanish, French, Dutch, German, Swedish, Polish, Korean, Japanese, Italian
Basic Functions
Two TPMS Service Mode
Autel MaxiTPMS TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
Quick Mode / Advanced Mode Comparision
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;
TPMS Advanced Mode: Complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.
Autel MaxiTPMS TS508 Exclusive TPMS Status Screen:
- Read ECU sensor ID;
- Check sensor ID and ECU ID matching condition;
- Read DTCs from ECU and erase DTCs;
- View DTCs detail description;
Four MX-Sensor Programming Options:
- Copy By Activation;
- Copy By Manual Input;
- Auto Create 1-16;
- Copy By OBD;
Autel MaxiTPMS TS508 Features:
- Vehicle Specific Database (Domestic, Asian and European)
- Auto Selection of Frequency for Fast Scanning
- Two TPMS Service Modes to Use
- Quick Mode for Fast Installs designed for tire / wheel shops
- Advanced Mode To diagnose, repair and replace TPMS for repair shops
- TPMS Status Screens for Easy Diagnosis
- Shows ID matching in color
- Low Sensor Battery Indicator
- Code Notification
- Information - relearn procedures at the touch of help button
- Batch Programming - Program multiple sensors with one touch (up to 16 sensors at a time)
- Programs vehicle ECU to learn sensor IDs and positions
- Activates ALL magnetic, frequency and tire deflation triggered sensors using 125Khz continuous or modulated waive signals
- Receives both 315MHz and 433MHz signals
- Reads / writes sensor IDs from vehicle ECU
- Reads / clears DTC's of TPMS and resets Malfunction Indicator Light

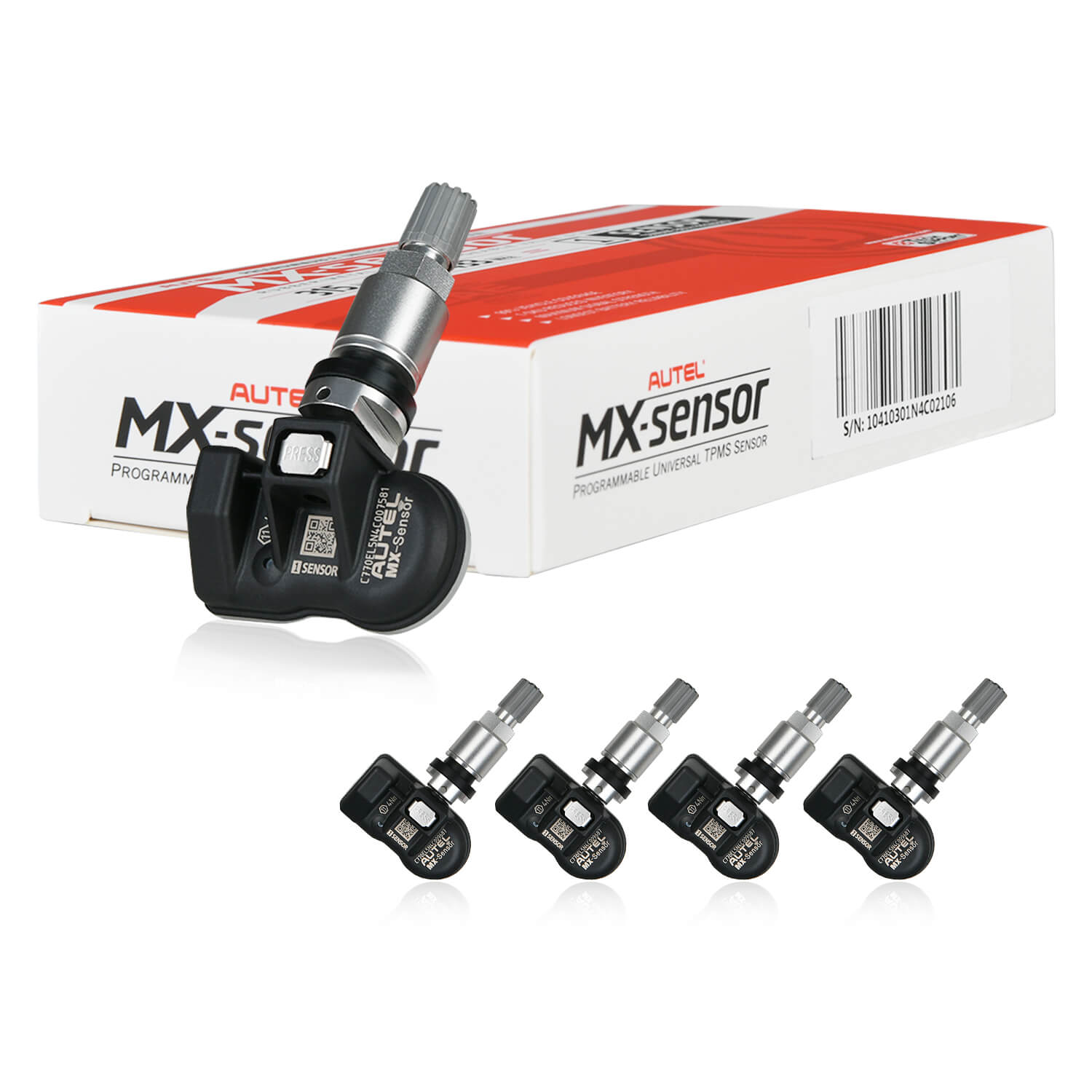

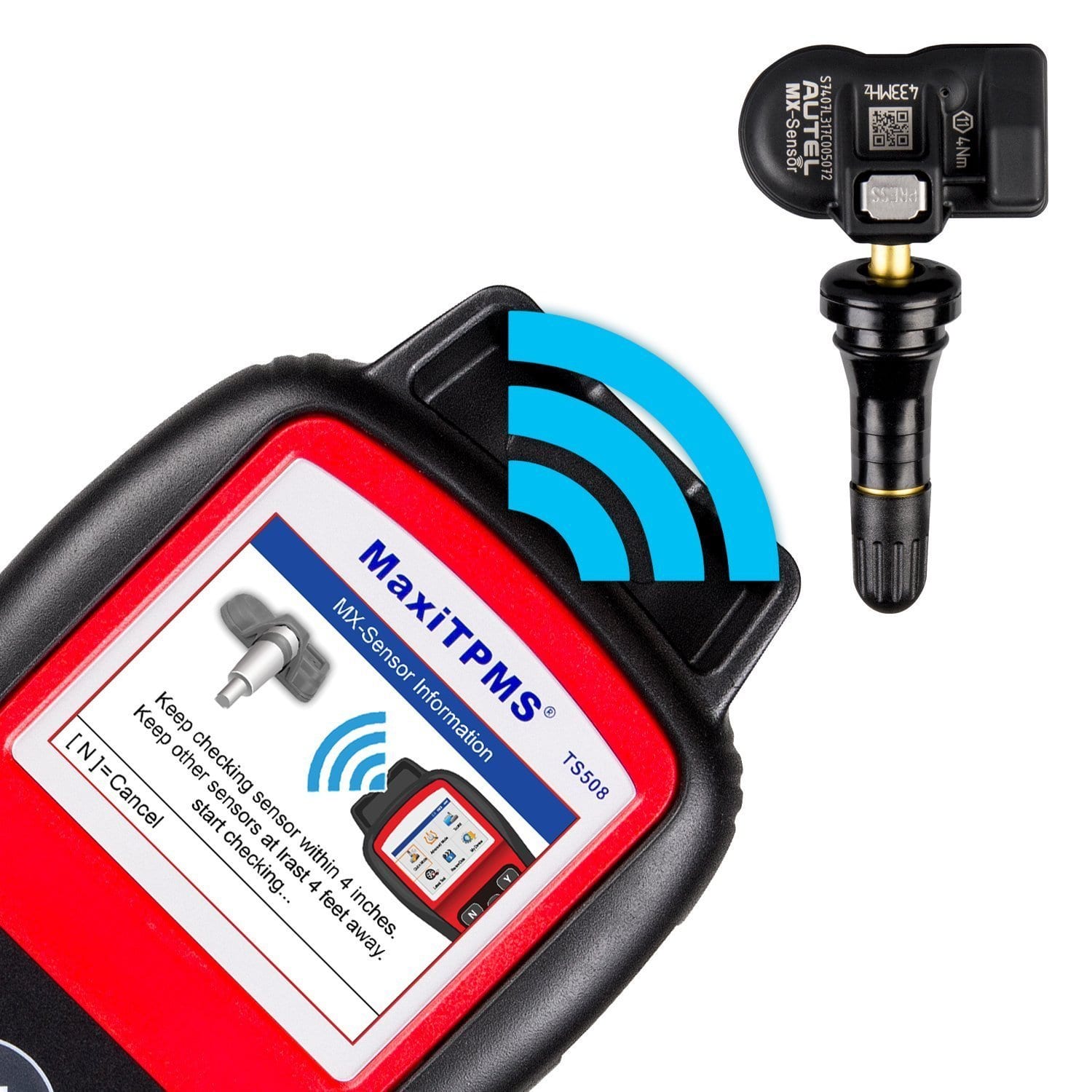

- Programs Autel MX-Sensors 315MHz or 433MHz wirelessly
- Checks Remote Keyless Entry (Key FOB) for transmissions
- Reads Data including sensor IDs, tire pressure, temperature, battery condition.
- OEM Part number and relearn information
- Displays different sensor relearn procedures for different OEM sensors
- OEM sensor information display based on vehicle Make/Model/Year
- Displays OBD locations for test vehicles
- Pre-selection process offers faster activation and diagnostics
- Provides visual and audible responses to confirm sensors are working properly
- On-screen code definitions
- Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions
- Proper LF signal to prevent being fooled by other RF signals
- Built-in rechargeable 3.7 v Li-polymer battery
- Automatic power-off to preserve battery life
- Multilingual support: English, French, Spanish, etc.
- Free Lifetime updates on the internet using USB port
- Ergonomic design features strong housing and protective rubber boot
- TFT Color Display (320 X 240 dpi)
Autel MaxiTPMS TS508 Specifications:
Display |
TFT color display (320 x 240 dpi) |
Power |
3.7 V Li-polymer battery; 3200 mAh |
Operating Temp |
0°C to 50°C (32°F to 122°F) |
Storage Temp |
-20°C to 70°C (-4°F to 158°F) |
Sensors |
215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”) |
Weight |
0.39 kg (0.86 lb.) |

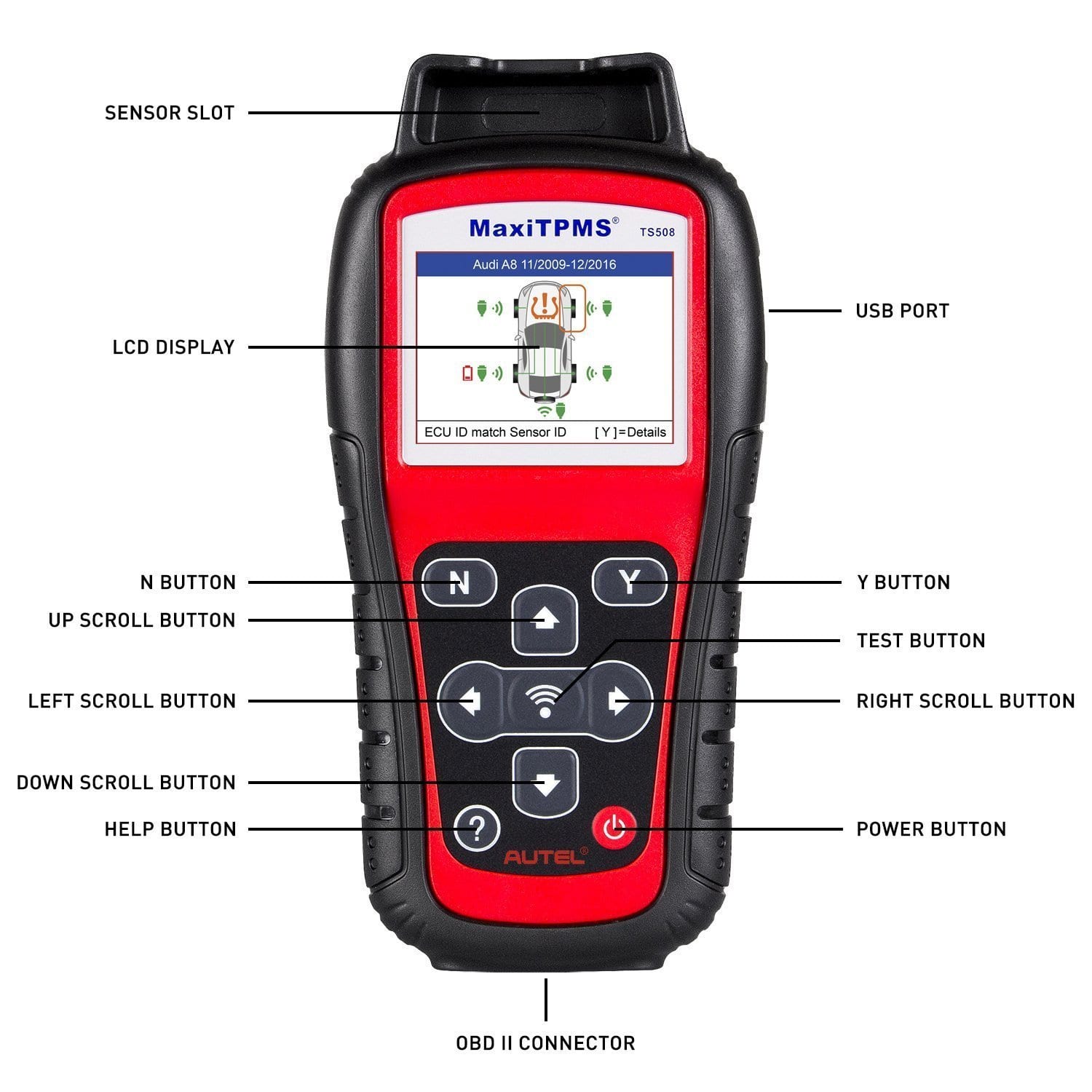

Autel MaxiTPMS TS508 Detail Display
Model |
TS501 |
TS508 |
TS608 |
MP808TS |
MS906TS |
TPMS Function |
Quick Mode & Advance Mode |
/ |
√ |
/ |
/ |
/ |
Activate TPMS sensors |
√ |
√ |
√ |
√ |
√ |
Read sensor data |
√ |
√ |
√ |
√ |
√ |
TPMS health check |
√ |
√ |
√ |
√ |
√ |
Read/clear TPMS DTCs |
√ |
√ |
√ |
√ |
√ |
Scan TPMS sensor ID |
√ |
√ |
√ |
√ |
√ |
Manual input OE ID into MX-sensor |
√ |
√ |
√ |
√ |
√ |
Program MX-Sensor by auto creating sensor ID |
√ |
√ |
√ |
√ |
√ |
Read Sensor ID by OBD and copy ID into MX-Sensor |
√ |
√ |
√ |
√ |
√ |
Relearn by OBD function |
√ |
√ |
√ |
√ |
√ |
Relearn procedure guide on the tool |
√ |
√ |
√ |
√ |
√ |
Check Key FOB |
√ |
√ |
√ |
√ |
/ |
Read TPMS live data |
/ |
/ |
√ |
√ |
√ |
Tire Type/Pressure selection |
/ |
√ |
√ |
√ |
√ |
Other TPMS special functions |
/ |
/ |
√ |
√ |
√ |
TPMS Toolkit (other function) |
/ |
/ |
√ |
/ |
/ |
Diagnostic Function |
Basic OBDII code reader |
/ |
/ |
√ |
√ |
√ |
Read/clear codes for all electronic systems |
/ |
/ |
√ |
√ |
√ |
Support all 10 test modes of the latest J1979 OBDII test specs |
/ |
/ |
√ |
√ |
√ |
Reset Serivce |
/ |
/ |
√ |
√ |
√ |
Special Function |
/ |
/ |
/ |
√ |
√ |
Bi-Directional Control |
/ |
/ |
/ |
√ |
√ |
Advanced Function |
ECU Online Coding |
/ |
/ |
/ |
/ |
√(BMW,Audi) |
VW, Audi, Skoda Brush Hidden
|
/ |
/ |
/ |
√ |
√ |
VW, Audi, Skoda, Seat, Bently, Man LD Boot function |
/ |
/ |
/ |
√ |
√ |
VW, Audi, Skoda, Seat, Bently, Man LD Boot function |
/ |
/ |
/ |
√ |
√ |
Autel Cloud Service |
/ |
/ |
√ |
√ |
√ |
Language |
Multi-Language |
Multi-Language |
Multi-Language |
Multi-Language |
Only English |
Summary
Through this TPMS comparison table, you can check the features supported by a specific model and choose the model that is most suitable for you. In order to better understand the differences and connections between various products, you can simply understand the following TPMS series products:
TS608 is similar to MK808BT+TS508, MP808TS is similar to MP808BT+TS508, MS906TS is similar to MS906BT+TS508. Support for specific functions Whether you need to contact us for query matching.
Benefits of Updating Your Tool to Latest
-
Tool Software/Function Upgrades: Get the latest features and functions as they roll out from Autel
-
Latest Vehicle Coverage: Service all the latest makes and models supported by Autel
How do we process your update service?
- After checkout, please send us your S/N and we will authorize your scanner within 24 hours.
- After authorizing, we will send you an notification and you will be able to renew your device online.
Please note: This update is very easy to operate, no shipping needed
