Autel Maxisys Elite II vs Autel MaxiSys Elite

As 2022 Autel Upgraded ver. of Autel Elite / MK908P, the MaxiSys Elite II has equipped with a set of TOP hardware, same as MS909(Valued £2799.00), such as Octa--core Processor, 4GB RAM 128GB ROM, 9.7” Retina display with 2048*1536 resolution, Android 7.0 OS, 15400mAH battery, etc. It also comes with improvement on software, such as supporting Autel cloud service, remote expert service and battery detection.


👉Autel MaxiSys Elite II👈

Hardware and software platform upgrade, a new operating experience

  1. Samsung Exynos8895 8 core hardware platform.
  2. Equipped 5M/16M camera.
  3. Equipped 4G/128G super memory.
  4. Equipped 15400mAh battery.

Support more expansion functions, easy to manage various repair scenarios

  1. Battery detection (BT506)
  2. Support
  3. Support ADAS calibration, oscilloscope, GPS.

Support MaxiFix cloud service, efficiency enhancement at your fingertips

  1. Support Remote expert service, RealFix, SMS.
  2. Device management/report management, data on the cloud without fear of loss

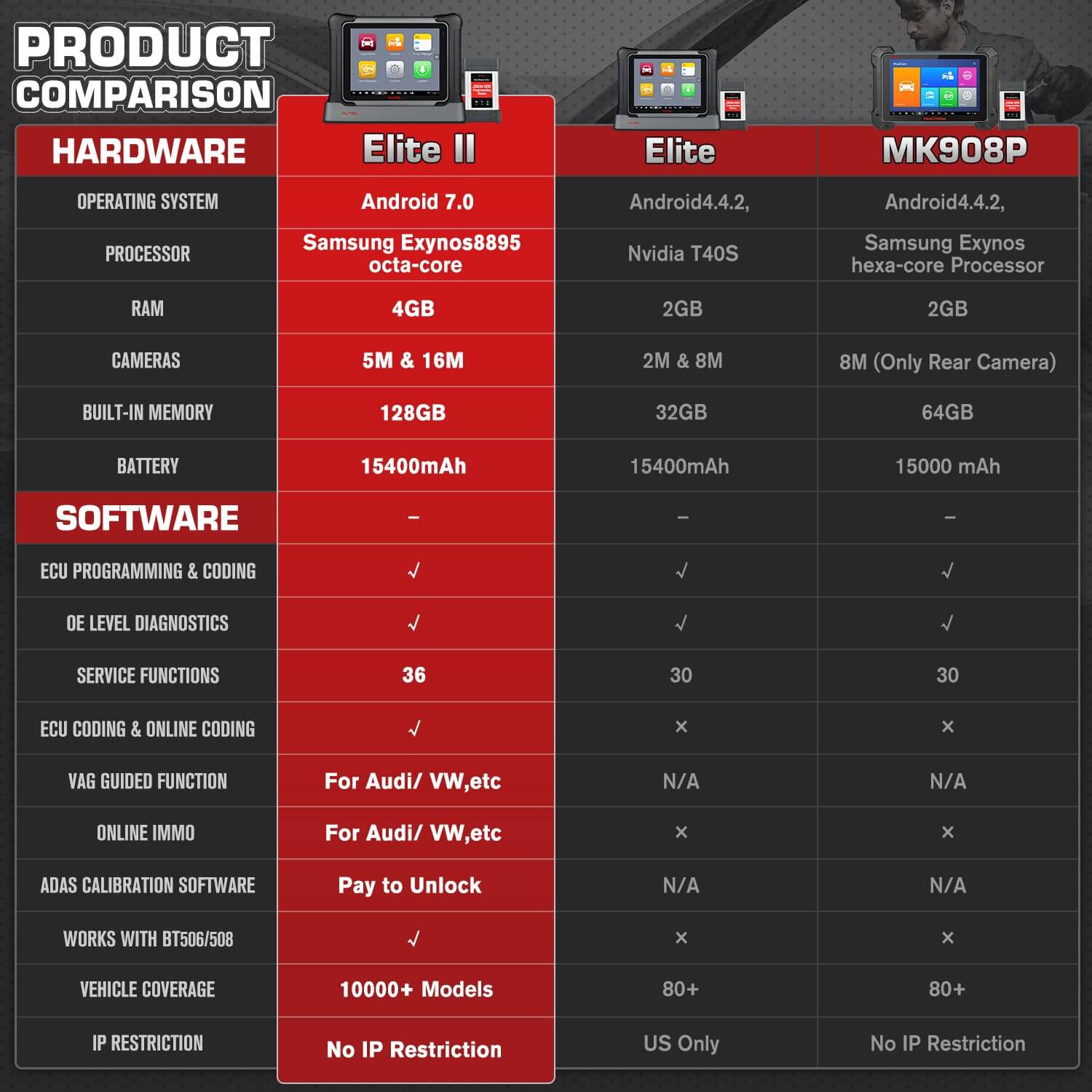

Hardware Comparison

Product MaxiSys Elite MaxiSys 909 MaxiSys Elite II
CPU Nvidia T40S

(4*A15 1.8G )

Samsung Exynos8895 8 core (4*M2 2.3G

+ 4*A53 1.7G)

Samsung Exynos8895 8 core(4*M2 2.3G +

4*A53 1.7G)

EMMC 32GB/64GB 128GB 128GB
Android system Android4.4 Android 7.0 Android 7.0
LCD 9.7inch / 2048*1536 9.7inch BOE,



9.7inch BOE,



Battery 15400mAH 15000mah 15400mAH (Elite)
Charging (9V, 2A) / (12V, 3A) (12V, 3A) (12V, 3A)
TP 10 5 10 (Elite)
Front camera 2M 5M 5M
Rear camera 8M 16M 16M
Microphone port 1Mic 1Mic 1Mic(Elite)
Wifi Module Wifi5 Dual wifi5 Wifi5
Base Yes Null Yes
GPS Null Yes Yes
Battery box Null Battery detection


(with optional BT506)

Battery detection


(with optional BT506)

VCI Flash Elite Flash VCI Flash Elite

Diagnosis: access to the all systems of passenger vehicles to read /erase fault code, read freeze frame, read data stream, read ECU information, action test and special functions etc.

Service reset:

Generally, after the vehicle is performed maintenance reset or is replaced with the relevant accessories in the electronic control system, the initialization matching is performed. The common special functions mainly include: EPB, OilReset, DPF, SAS, TPMS, IMMO_KEYS, BMS,

injector, throttle, suspension, brake bleed, TEC-learn, headlamp, WIN_DR_ROOF, Seat, Odomter, Lang_change, CHG_TIRE_SIZE, airbag_reset, Trans_adaptation

Programming: Only support ECU online programming of Benz and BMW
