Autel MaxiSys Ultra

Why MaxiSys Ultra is the best Autel diagnostic tool?

Due to IP restrictions, some Autel Scanners cannot be used except in North and South America. So when we discuss which product is Autel's most advanced diagnostic tool right now, we should identify the region you're talking about. This article will introduce you to Autel MaxiSys Ultra and why it is currently the most powerful diagnostic tool in Europe.

Top-of-the-line Hardware

  1. Operating System - Android 7.0
  2. Processor - Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
  3. Memory - 4GB RAM & 256GB On-board Memory
  4. Display - 12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
  5. Camera - Rear: 16 Megapixel, Autofocus with Flashlight / Front: 5 Megapixel
  6. Sensors - Gravity Accelerometer, Ambient Light Sensor (ALS)
  7. Power and Battery - 18000mAh 3.8 V lithium-polymer battery, Charging via 12 V AC/DC power

Autel Maxisys Ultra Hardware

Ultra With a winning combination of solid hardware and software, the Autel MaxiSys Ultra ensures you a smooth and efficient diagnostic experience

Unmatched Vehicle Coverage

  • Protocols - DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

In addition to the D-PDU/SAE J2534/RP1210 diagnostic protocols, this OBD2 intelligent diagnostic tool MaxiSys Ultra also supports the DoIP and CAN FD protocols for more new vehicle models, covering 99% of vehicles on the market.

Powerful Accessory

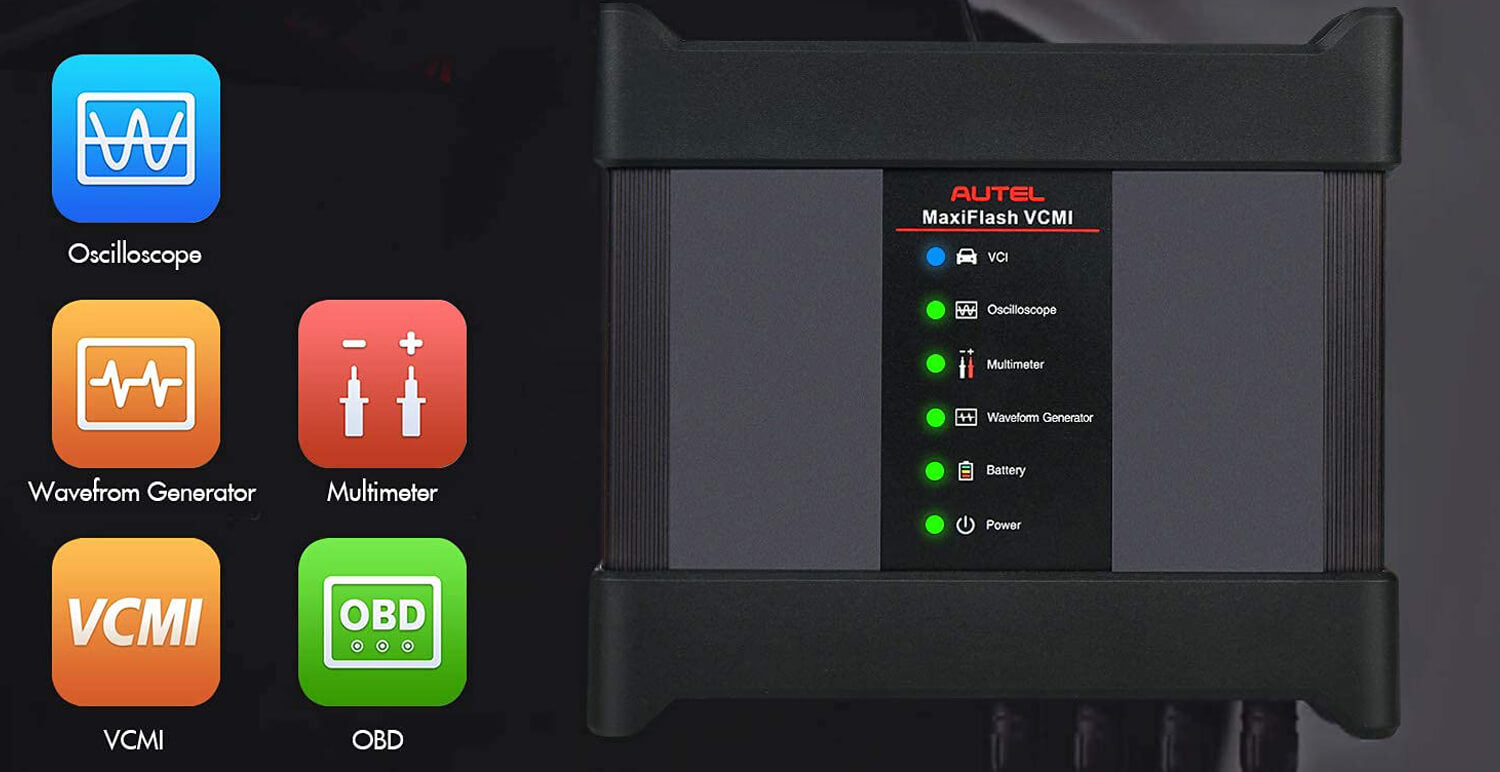

The advanced 5-in-1 Autel MaxiFlash VCMI combines the functions of VCI, oscilloscope, waveform generator, multimeter, and OBD2 CAN Bus Check, helping MaxiSys Ultra realize multiple functions of diagnostics, detection, signal simulation, etc. Meantime, it’s a D-PDU, SAE J2534 & RP1210 compliant PassThru programming interface, capable of connecting with OEM diagnostic tools to diagnose and program more passenger and commercial vehicles, such as Volvo, VW, Benz, etc.

Autel Maxisys Ultra accessory VCMI

Intelligent Diagnostics & Reset Services

Through one-stop Intelligent Diagnostics, Autel Scanner MaxiSys Ultra provides techs with step-by-step repair guidance. Multiple repair guidance options: Technical Service Bulletin, DTC Analysis, Repair Assist, Repair Tips, Component Measurement, and Relevant Cases, which can make your work 200% easier than ever.

Autel Ultra scan tool also comes with 40+ services to help you win more business.

Autel Maxisys Ultra Reset Service

Advanced Functions

  • Bi-Directional Control - Autel MaxiSys Ultra auto diagnostic tool Active Test function is used to access to vehicle-specific subsystem and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the engine ECU data, or by monitoring the operation of the actuators such as switching a solenoid, relay, or switch between two operating states.
  • ECU Coding - Autel Ultra professional auto diagnostic tool comes with advanced ECU coding function. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCMI device for vehicle diagnosis, service or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding, for various vehicle control systems, such as engine, transmission, ABS and more.
  • ECU Programming - MaxiSys Ultra comes with the capability to program ECUs(reflash modules) and ECU Coding like ECM, TCM, BCM on specific BMW and Benz vehicles to replace the existing software & fireware and solve drivability issues & efficiency issues. NOTE: ECU Programming work on specific BMW and Benz vehicles ONLY

Intuitive Topology Mapping

MaxiSys Ultra is developed with revolutionary Topology Mapping of CAN BUS tree with color coded module status for faster full system diagnostic results. You are exposed clearly with the situation of each system in a Mapping tree to view the communication structure between modules, just one click to display the fault code and enter the system executive function directly, you can also zoom in and out for partial or whole map. Smarter than ever!

Autel Maxisys Ultra topology map

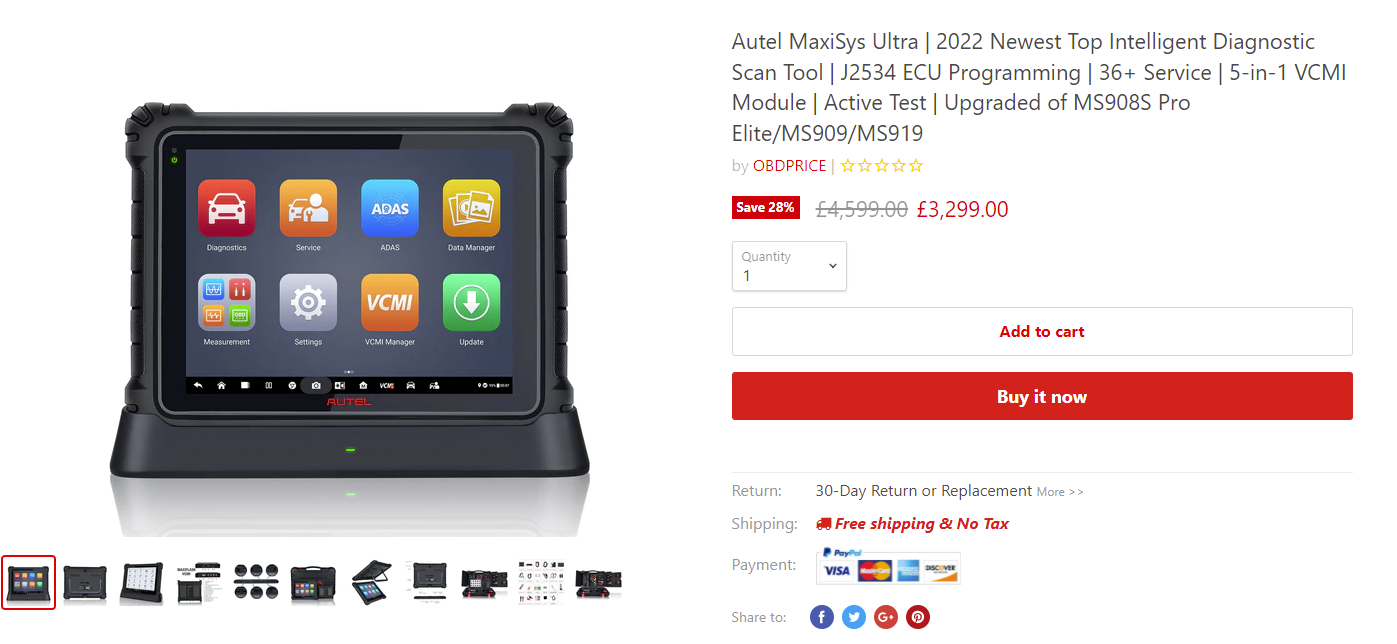

Autel 2022 top scanner MaxiSys Ultra is a revolutionary diagnostic scan tool. As the upgraded version of Maxisys MS919/ MS909MS/ MS908S PRO/ MS Elite, Autel Ultra is with Intelligent Diagnostics (Repair Assist, OE-TSB and DTC Analysis) and 40+ services, ECU Coding and Programming, bi-directional control and 5-in-1 VCMI, and top hardware among all the Autel scanners. This top OBD2 diagnostic scanner Ultra is the best choice for car repair shops.

autel maxisys ultra
